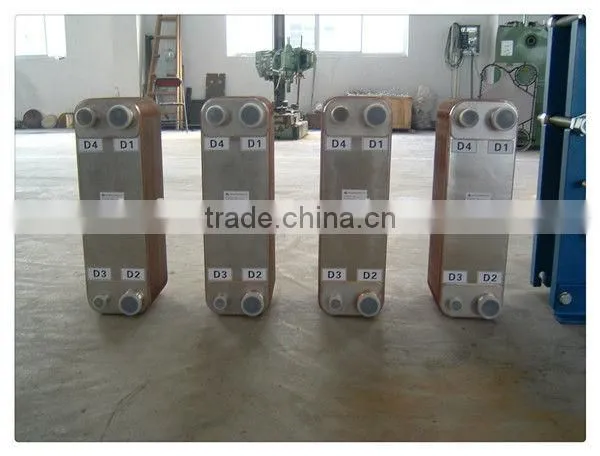

Brazed plate heat exchanger
Company feature
1.focus on plate heat exchanger
2.pay attention to client's require
3.reply massage at the first time
4.delivery in time
Working principle
Channels are formed between the plates and the corner ports are arranged so that the two media flow through alternate channels. The heat is transferred through the plate between the channels, and complete counter-current flow is created for highest possible efficiency. The corrugation of the plates provides the passage between the plates, supports each plate against the adjacent one and enhances the turbulence, resulting in efficient heat transfer.
Food industry: Milk pasteurization, Milk and beverage pasteurization , Wine tempering, Bottled water treatment , CIP (Cleaning-in-Place)
heating , Reverse osmosis water.
Marine application : Central cooling of the main or auxiliary engines or turbines, Lubrication oil cooling, Recooling of circulated water for cooling cylinders, pistons, injection nozzles, Cooling of Baoder oil, compressor oil and other lubricants, Preheating of lubrication oil and heavy fuel oil, Preheating of seawater for fresh water production, Heat recovery, Heat exchange to air-condition the passengers’ cabins and freight spaces
Others: turbine oil cooler, Chemical industry, district heating, district cooling, swimming pool heating, solar heating,
Material of Plate |
Suited Liquid Kinds |
||
Stainless Steel (SUS304.316 Etc) |
Pure Water, Normal Water, Oil for eating, Mineral Oil |
||
Ti, Ti-pd |
Sea Water, Saline Water, Mineral Water |
||
20Cr, 18Ni, 6Mo (254SMO) |
Dilute Sulphuric Acid, Organic Water Solution |
||
Ni |
High-temp and concentration caustic soda |
||
Hastelloy (C276, D205, B2G) |
Concentration Sulphuric Acid, Hydrochloric acid, Phosphoric acid |
||

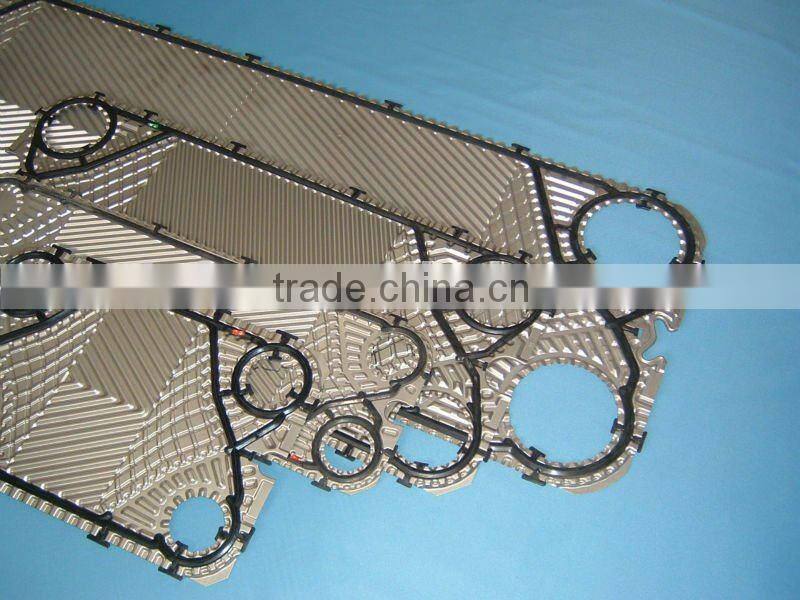

Material of Gasket |
Operating Temperature ° C |
Suited Liquid Kinds |
|
NBR |
-15~+135° C |
Water, Sea Water, Mineral Oil, Salty Water |
|
EPDM |
-25~+180° C |
Hot Water, Steam, Acid, Caustic |
|
F26 |
-55~+230° C |
Acid, Caustic, Fluid |
|
TPF |
0~+160° C |
Concentrated Acid, Caustic, High-temperature Oil, Steam |
|
More products

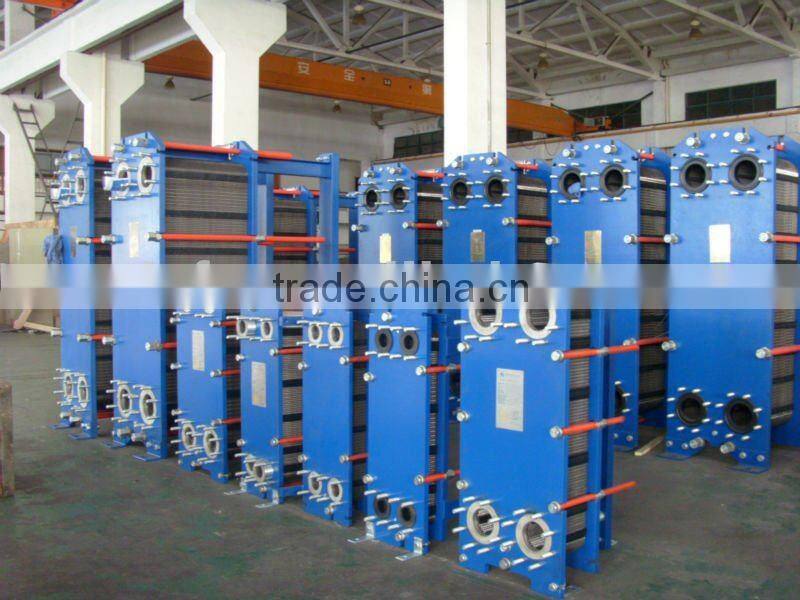

Detachable plate heat exchanger
Environmental protection, removable, when you feel the need to increase the heat transfer area, you can increase the plate
Do not hesitate to contact Sara for more details!
