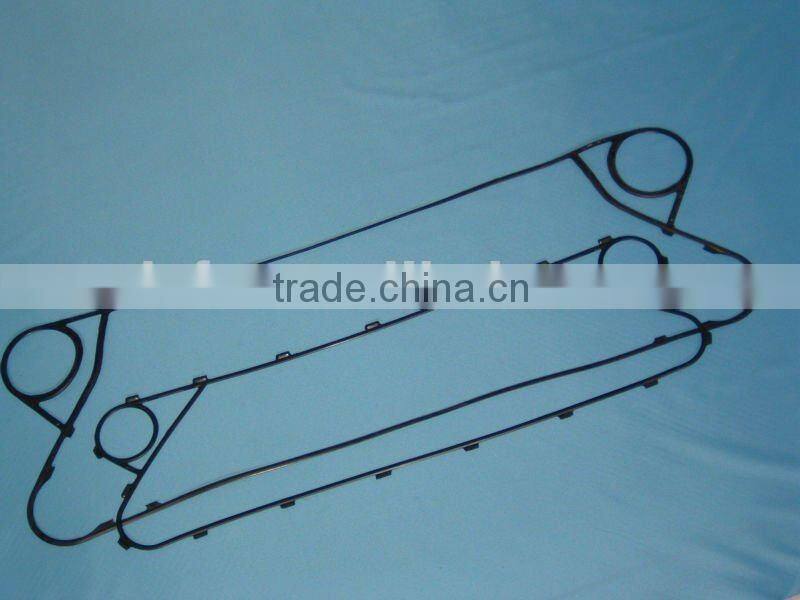

JQ6B Plate Heat Exchanger for Water to Water Heat Exchanger

Specifications

1.water to water heat exchanger
2.easy to install and maintain
3.environmental protection
4.high efficiency with low cost

 PLATE HEAT EXCHANGER, PLATE AND GASKET.



Company feature

1.focus on plate heat exchanger

2.pay attention to client's require

3.reply massage at the first time

4.delivery in time



Working principle

Channels are formed between the plates and the corner ports are arranged so that the two media flow through alternate channels. The heat is transferred through the plate between the channels, and complete counter-current flow is created for highest possible efficiency. The corrugation of the plates provides the passage between the plates, supports each plate against the adjacent one and enhances the turbulence, resulting in efficient heat transfer.

Food industry: Milk pasteurization, Milk and beverage pasteurization , Wine tempering, Bottled water treatment , CIP (Cleaning-in-Place)

heating , Reverse osmosis water.

Marine application : Central cooling of the main or auxiliary engines or turbines, Lubrication oil cooling, Recooling of circulated water for cooling cylinders, pistons, injection nozzles, Cooling of Baoder oil, compressor oil and other lubricants, Preheating of lubrication oil and heavy fuel oil, Preheating of seawater for fresh water production, Heat recovery, Heat exchange to air-condition the passengers’ cabins and freight spaces

Others: turbine oil cooler, Chemical industry, district heating, district cooling, swimming pool heating, solar heating,





Material of Plate		Suited Liquid Kinds
Stainless Steel (SUS304.316 Etc)		Pure Water, Normal Water, Oil for eating, Mineral Oil
Ti, Ti-pd		Sea Water, Saline Water, Mineral Water
20Cr, 18Ni, 6Mo (254SMO)		Dilute Sulphuric Acid, Organic Water Solution
Ni		High-temp and concentration caustic soda
Hastelloy (C276, D205, B2G)		Concentration Sulphuric Acid, Hydrochloric acid, Phosphoric acid
Material of Gasket	Operating Temperature ° C		Suited Liquid Kinds
NBR	-15~+135° C		Water, Sea Water, Mineral Oil, Salty Water
EPDM	-25~+180° C		Hot Water, Steam, Acid, Caustic
F26	-55~+230° C		Acid, Caustic, Fluid
TPF	0~+160° C		Concentrated Acid, Caustic, High-temperature Oil, Steam
