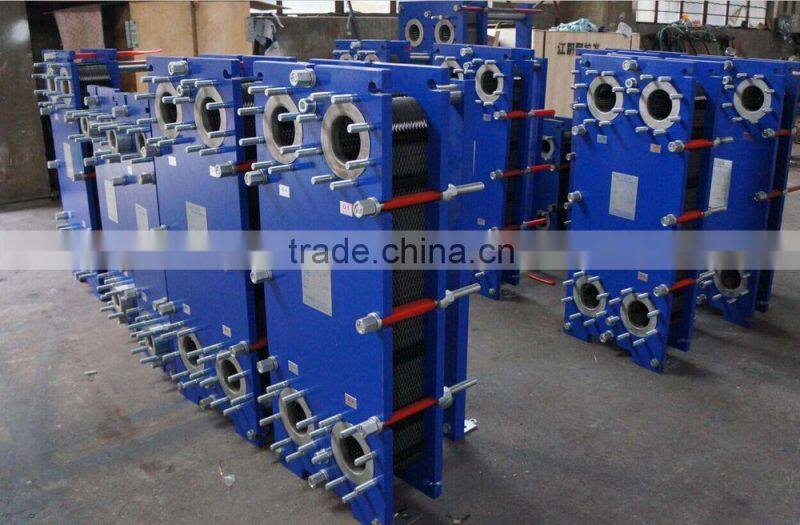

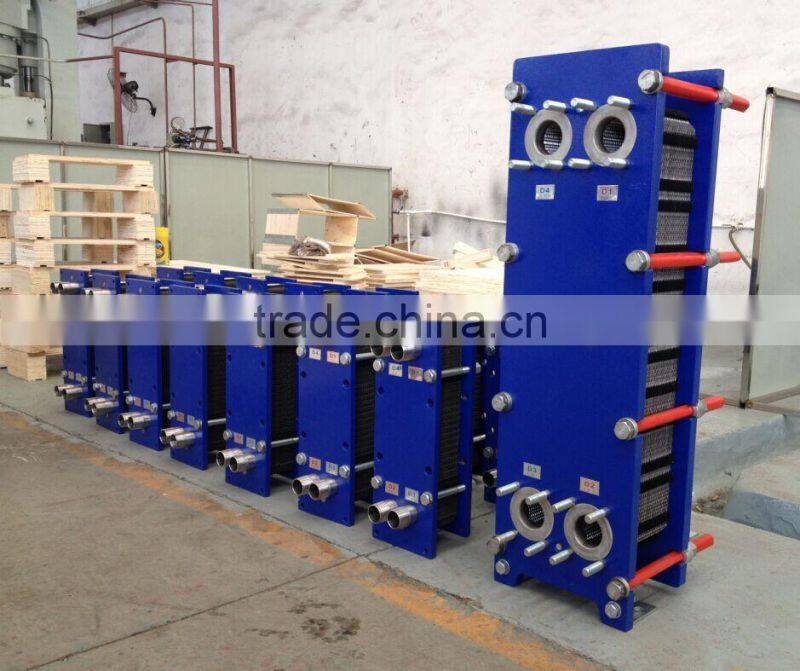

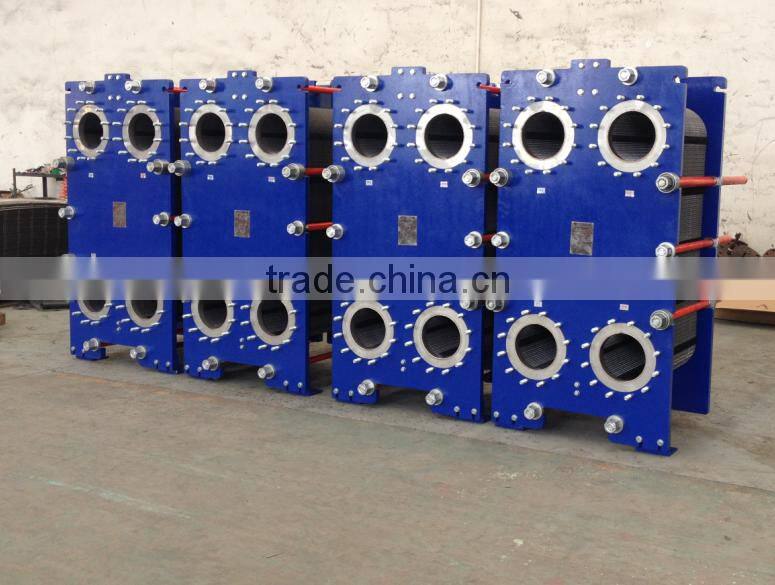

Help CenterS31 Steam Heat Exchangers,plate Heat Exchanger
Related Products
-
S37 Steam Heat Exchangers,plate Heat ExchangerUS$ 5,000 - 8,000MOQ: 1 Set -
S62 Steam Heat Exchangers,plate Heat ExchangerUS$ 5,000 - 8,000MOQ: 1 Set
-
S65steam Heat Exchangers,plate Heat ExchangerUS$ 5,000 - 8,000MOQ: 1 Set
-
Apv Gasket Plate Heat Exchanger PriceUS$ 5,000 - 8,000MOQ: 1 Set
-
Stainless Steel Micro Channel Heat Exchanger,heat Exchanger PriceUS$ 5,000 - 8,000MOQ: 1 Set

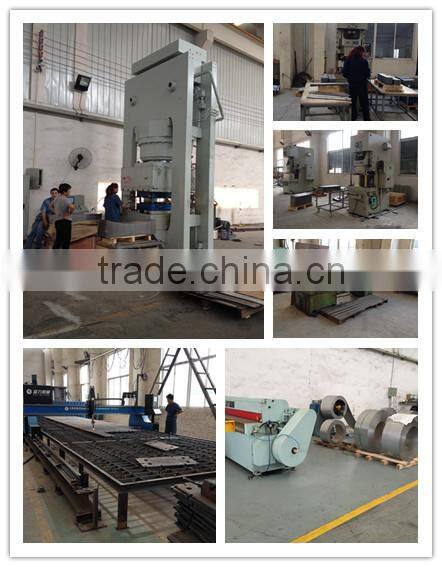

Jiangyin 6Z Heat Exchanger Manufacturing Co., Ltd is a professional high-tech enterprise specialized in heat transfer product research and development, production, sales and service. We have more than 10 years of manufacturing experience. Our products include plate heat exchangers, intelligent heat exchanger units and related parts such as plates and gaskets, which are widely used in chemical, metallurgy, steel, electricity, pharmaceutical, HVAC, water supply and drainage.

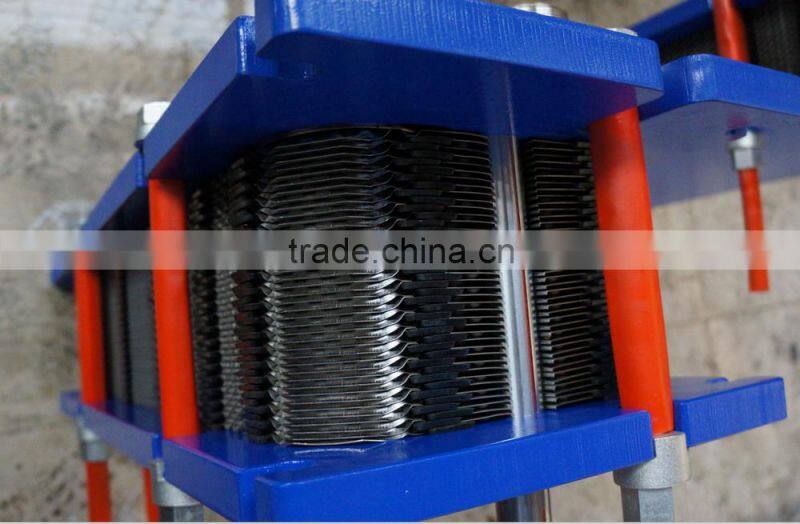

Principle:Gasket is attached to the heat transfer plate with forms flow channel and acts seal up the fluid not to leak to the outside.The number of the heat transfer plate is determined according to the amount of fluid,physical properties of fluid,the pressure drop and thermal condition. The covers prevent the plates bended from the difference of pressure.In the assembly of plate ,the surface with gasket is directed to the fixed cover and each plate is hanged in opposite direction alternately. Then two fluids can flow in their own area and transfer heat.
Material of Plate |
Suited Liquid Kinds |
||
Stainless Steel (SUS304.316 Etc) |
Pure Water, Normal Water, Oil for eating, Mineral Oil |
||
Ti, Ti-pd |
Sea Water, Saline Water, Mineral Water |
||
20Cr, 18Ni, 6Mo (254SMO) |
Dilute Sulphuric Acid, Organic Water Solution |
||
Ni |
High-temp and concentration caustic soda |
||
Hastelloy (C276, D205, B2G) |
Concentration Sulphuric Acid, Hydrochloric acid, Phosphoric acid |
||
Graphite |
Hydrochloric acid, the concentration of sulfuric acid, Phosphoric acid |
||
Material of Gasket |
Operating Temperature ° C |
Suited Liquid Kinds |
|
NBR |
-15~+130° C |
Water, Sea Water, Mineral Oil, Salty Water |
|
HNBR |
-15~+160° C |
High temperature mineral oil,High temperature water |
|
EPDM |
-25~+180° C |
Hot Water, Steam, Acid, Caustic |
|
VITON/FKM |
-5~+180° C |
Acid, Caustic, Fluid |
|
1. Working condition calculation and design
2. Provide product drawing
3. Product one year warranty
Send Inquiry to This Supplier
