FG-FD300 Digital Night Vision Scope, equipped with high sensitivity sensor, integrated color LCD-Screen and IR LED illuminator, is a great gadget which enable you to observe target in complete darkness with more true-to-life detail and to save photos and video .
Uses:
• Security and surveillance ;
• Scouting and guarding ;
• Search and rescue ;
• Wildlife observation ;
• Camping fun / Exploring caves ;
• Nighttime navigation ;
• Night fishing and boating.
Functions:
• Image display
• Image preview
• Delete
• Picture shoot
• Movie record
• Manual brightness control
• Color/B & W image display
• Digital zooming
• Download to pc
• Show on TV or monitor.
Benefit:
The old image-intensifier tube is replaced by an integrated system of high sensitivity sensor, micro LCD-screen and IR LED illuminator, and to help you penetrate the cover of darkness with more true-to-life detail. No more blurry green images using old imaging intensifier tubes.
Using H.264 and MJPEG compression technology to reach high frame rate of video output.

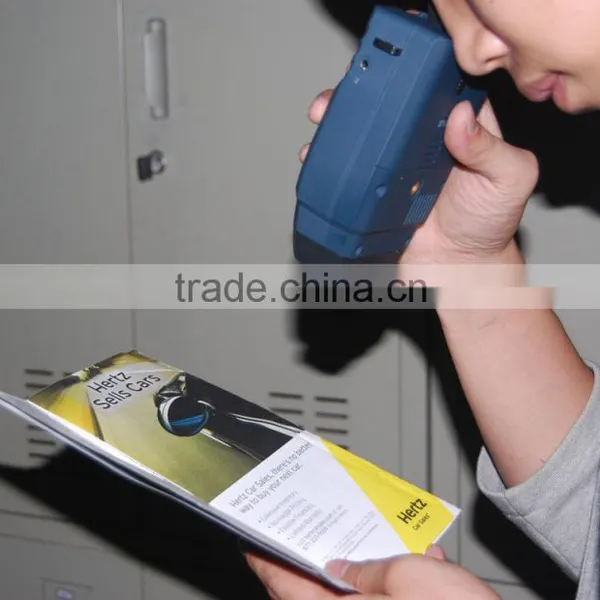

The design of the shortest focusing distance ( 25cm) makes it possible to read a newspaper or
a note with this powerful gadget.
Two-Years’ Warranty.

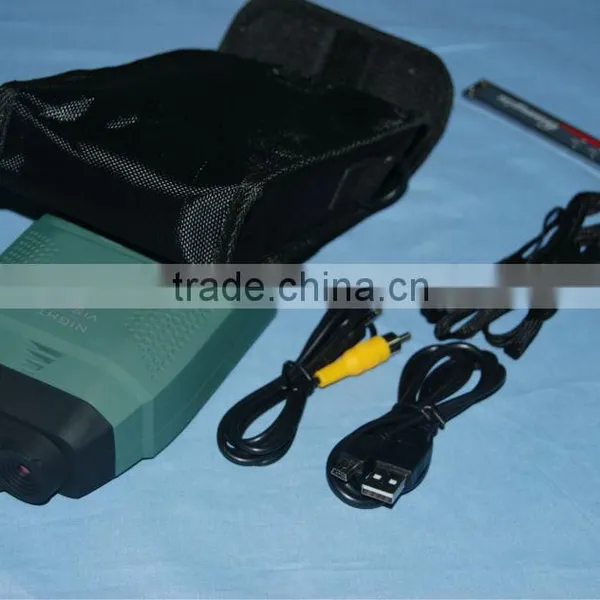

Accessories:
1. Night vision device; 2. MINI USB cable;
3. A/V cable;
4. Neck strap;
5. Storage pouch;
6. User manual.

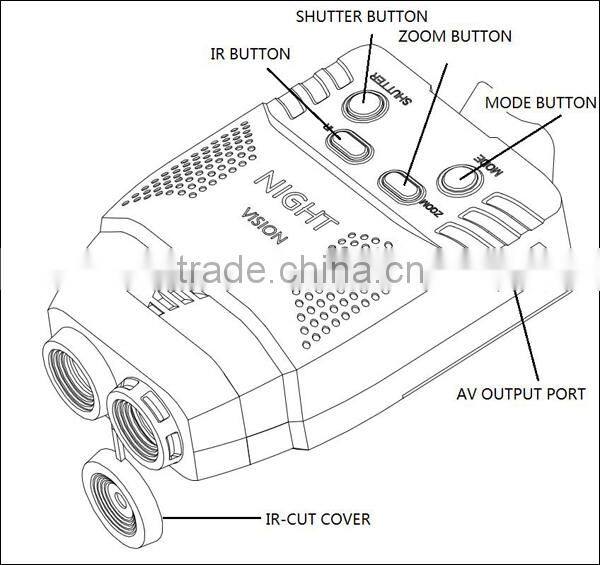

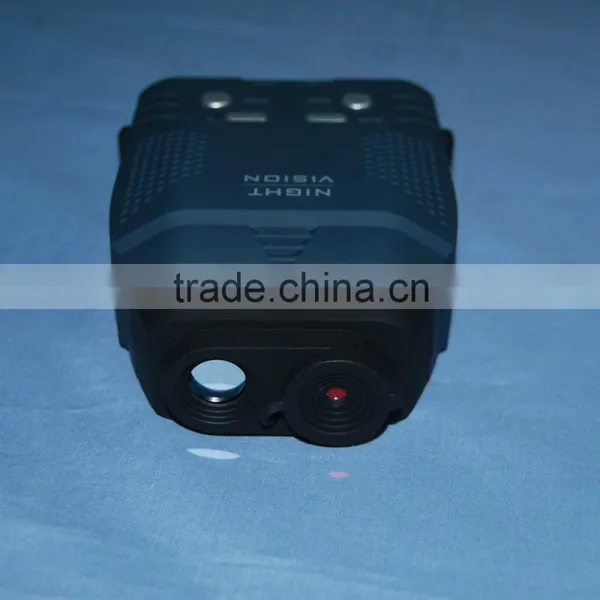

Front View:

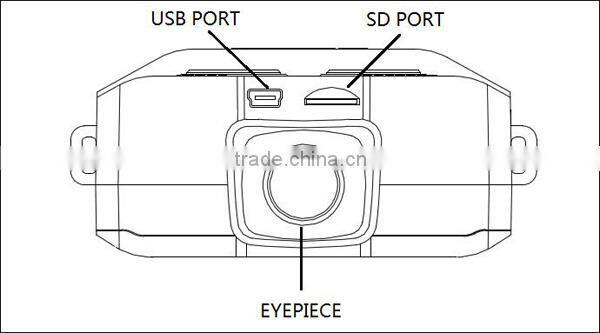

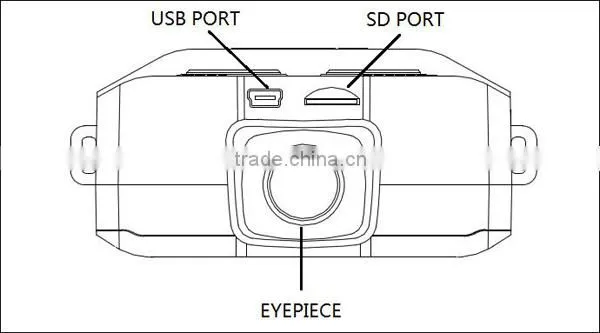

Rear View:

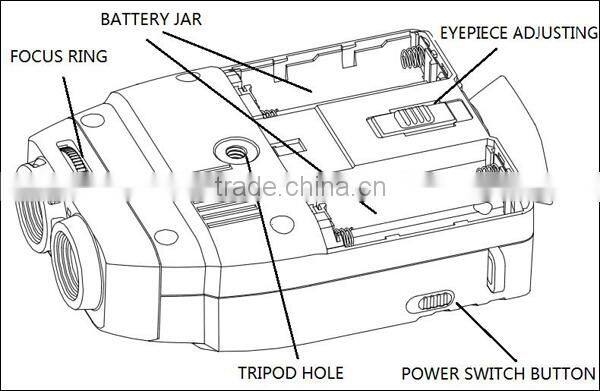

Bottom View:

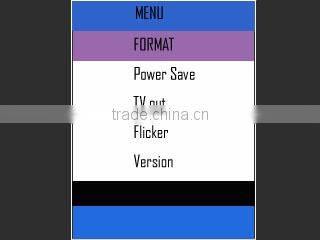

Message shown on LCD screen in menu operation mode:
1. Format: Select to format the micro SD card;
2. Power save: The NV can be set to automatically shut down when not operating after the selected period of time;
3. TV out: The video output mode can be set to NTSC (North America) or PAL (Europe);
4. Flicker: Anti flicker settings 50Hz or 60Hz;
5. Version: Displays the version of this device.
Specifications:
1 |
Magnification |
6X |
2 |
Objective diameter |
15.0 mm |
3 |
Exit pupil distance |
14~21 mm |
4 |
Field of view |
14° |
5 |
Mini focus distance |
25cm (distance of distinct vision) |
6 |
Detection distance |
300 m (vehicle) / 100 m (man) |
7 |
Identification distance |
100 m (vehicle) / 30 m (man) |
8 |
Effective distance of built-in IR lamp |
30 m |
9 |
Size of imaging sensor |
1 / 5” |
13 |
Sensitivity of sensor |
6.8V/ Lux.sec |
10 |
Active resolution of sensor |
640*480 |
11 |
Picture resolution |
640*480 |
12 |
Video resolution |
640*480 |
13 |
Recording format of video |
H.264 |
14 |
Screen resolution |
320*240 |
15 |
Equivalent size of screen in view |
Watching a 35” screen at 2 m away |
16 |
Digital image output |
USB port |
17 |
Analogue signal output |
Video port (NTSC / PAL) |
18 |
Storage of picture and movie |
To suport 1GB~32GB SD card |
19 |
Power of built-in IR lamp |
3 W |
20 |
Wavelength of IR lamp |
850 nm |
21 |
Power supply |
AA battery X 4 (not included) |
22 |
Working life of battery |
5 hours |
23 |
Dimensions of device |
134X92X47mm |
24 |
Weight of device (without battery) |
250 g |
25 |
Accessories attached |
USB cable, AV cable, Mini SD card |
OEM / ODM:
1. To print clients' logo or model name on the surface of rubber shell.
2. To change color of rubber shell on client's demand.
3. To offer native language version of menu shown on LCD according to clients' requirement.
4. To equip extra LED lamp and fresnel lens for long distance view and field illumination control.
Quality control:
CE issued by SGS laboratory Verification No. SHEMO0808001971T01C
FC issued by SGS laboratory Verification No.SHEMO081100389IT01C
ROHS issued by POCE laboratory, Verification No.POCE13072325TCR
Copyright software of Future Win Joe V1.0 Registration Code: 2009SR035346
ISO9001-2008 issued by kunlun certification co., Ltd Verification No. 16814QZ0030R0M
Trade terms
Payment:
100% prepaid for first order
For quantity order: T/T to our company account
For sample order or trial order: T/T to our company account, Western Union, Escrow
Delivery time and shipping:
Sample order or trial order (less than MOQ) will be sent within 3 days by express, such as EMS, DHL, TNT, FedEx etc.
Bulk order (less than 500 units) will be finished within 7 days, and normally shipped by air or sea through forwarders subject to client’s confirmation.
OEM orders need an extra customization time. Generally customization will take 10 days.
Warranty:
We offer two years warranty covering all of our products, including on line technical supports, replacements of defective items with new ones and supply of accessories, basing on our service offices all over the world.
Customization:
We offer free OEM service for our regular clients or big order customers, including logo printing, sticker print, CD file design and box making.
Free sample for clients to place repeat orders:
We welcome our potential buyers to purchase sample for test and evaluation, and we will refund the sample fee when they place repeat orders.
Pre-sales service
As a manufacturer, not a trade company, we can provide sufficient pre-sale services to help our clients understand our products before placing an order to us.
1. Provide basic knowledge to help our clients understand working principle of our products;
2. Provide key factors and skill to our clients when they choose our products;
3. Provide sample pictures or video captured by our products according to clients’ special application for test and evaluation;
4. Provide product design drawing and package drawing to help clients work out customization pattern.
