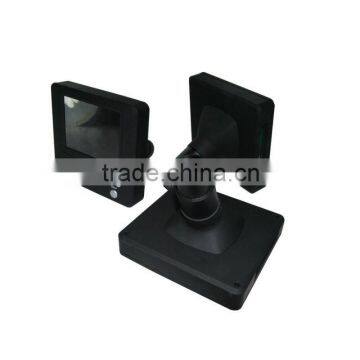

Help Center2.0MP LCD Video Microscope Digital Eyepiece Camera MDC2000
Related Products
-
MVV5000CFA USB Digital Microscope Camera Equipped With a Flexible C-mount Parfocal Adapter and Relay LensNegotiableMOQ: 50 Pieces -
MVV3000CFA USB Digital Microscope Camera Equipped With a Flexible C-mount Parfocal Adapter and Relay LensNegotiableMOQ: 50 Pieces
-
High Resolution Measurement Function MVV5000CLR Digital Microscope CameraNegotiableMOQ: 50 Pieces
-
MD300R Measuring Microscope USB Digital Camera Equipped With Relay Lens and Professional Imaging Software of Future Win JoeNegotiableMOQ: 50 Pieces
-
MVV5000FA USB Digital Microscope Camera Equipped With a Flexible C-mount Parfocal Adapter and Relay LensNegotiableMOQ: 50 Pieces

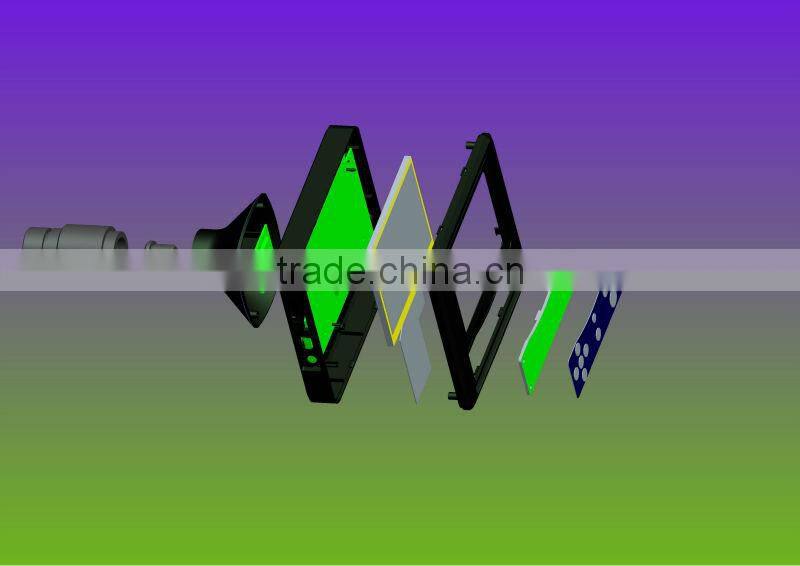

♦Features
1. Imaging module: 2.0MP CMOS imaging module;
2. Picture processing module: Microprocessor with multiple format output;
3. Display module: 3.6”TFT LCD and driver module;
4. Optical connection: Built-in relay lens;

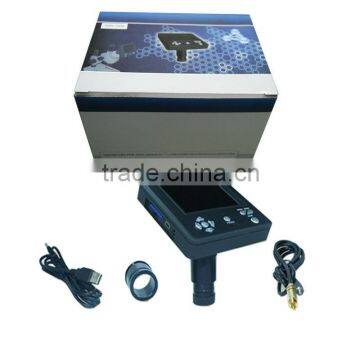

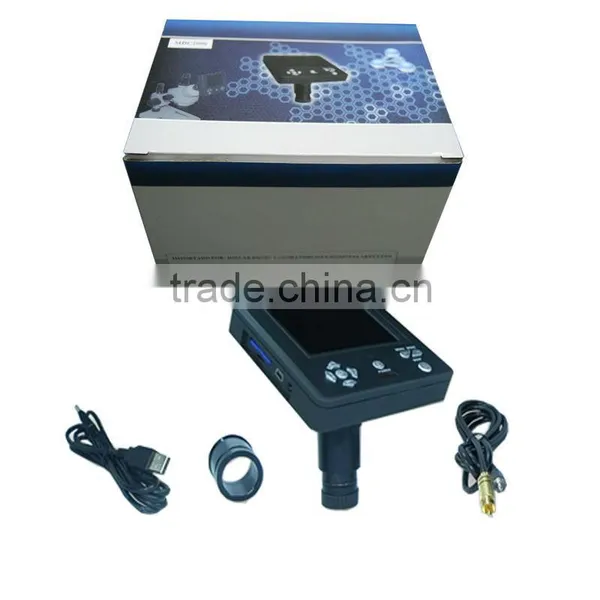

5. Power adapter, USB cable, AV cable and 2GB SD card included;
6. Imaging software of Future Win Joe for USB model included on CD
♦Application:

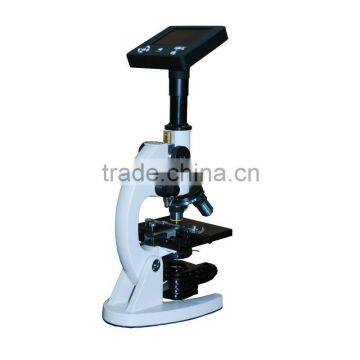

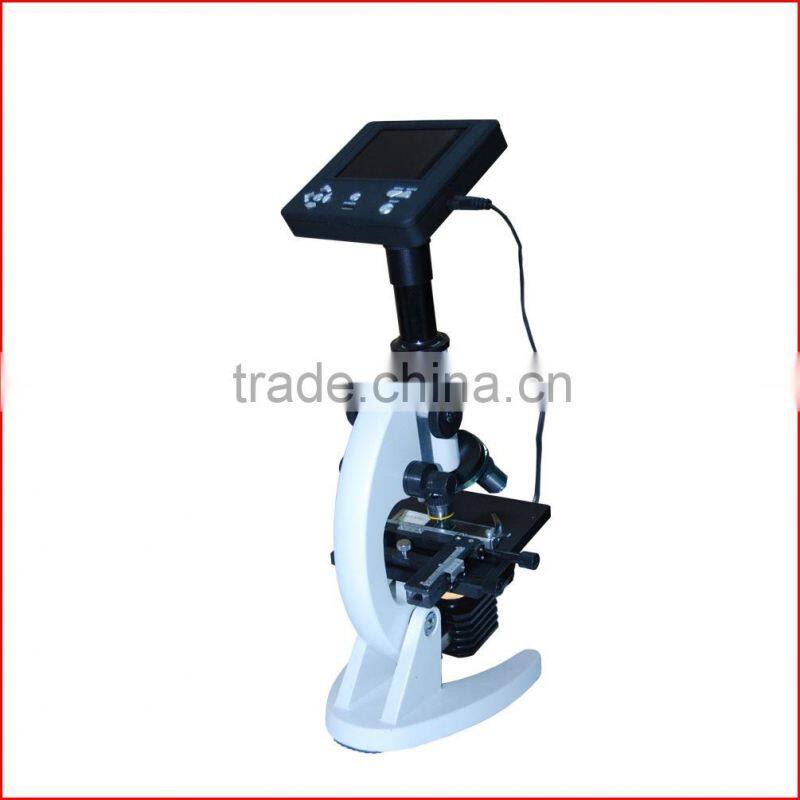

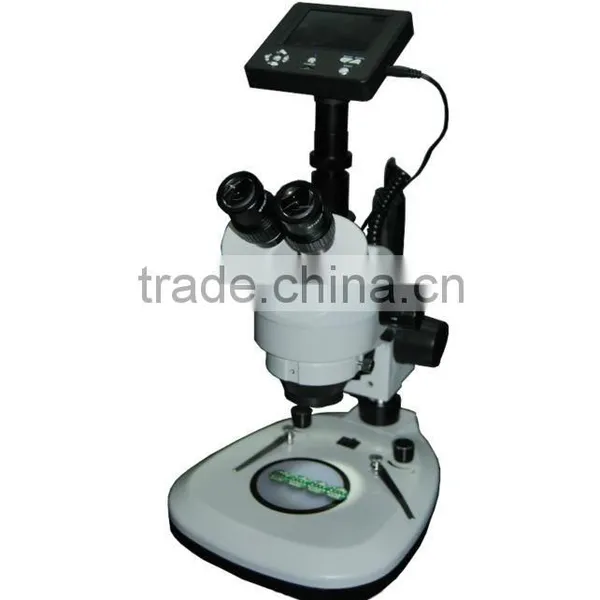

To convert most biological and stereo microscope into digital LCD microscope for easy and comfortable viewing and to share with others, it’s also easy to snapshot or to short videos.
♦Functions
1. View images or video on LCD screen without connecting a PC;
2. Capture and save images or video in SD card;
3. Camera control menu allows you to adjust the gain, resolution, WB, contrast;

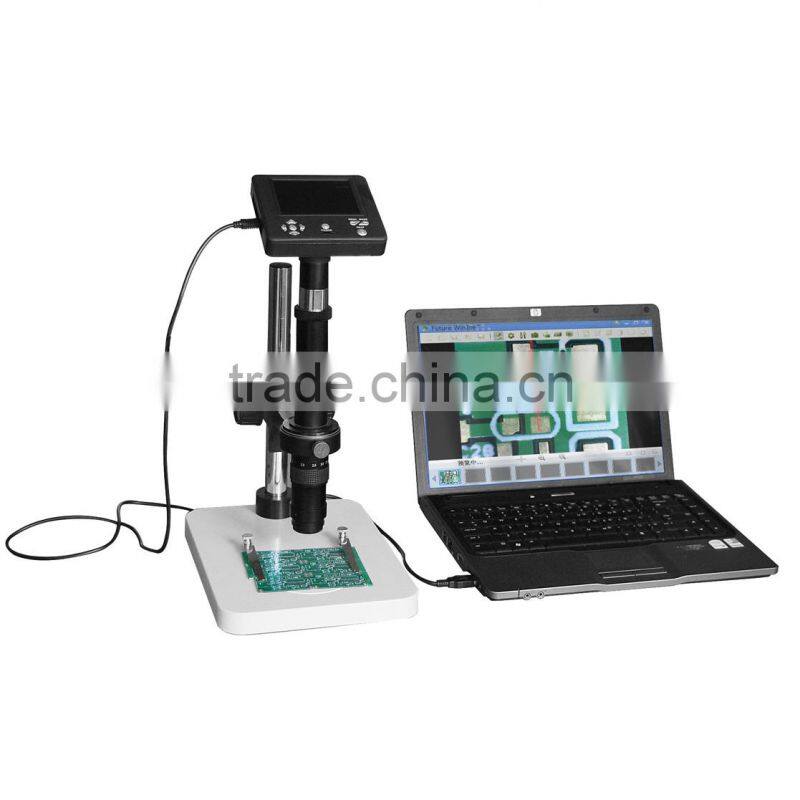

4.USB camera model to act as a PC microscope camera under the control of Future Win Joe software.

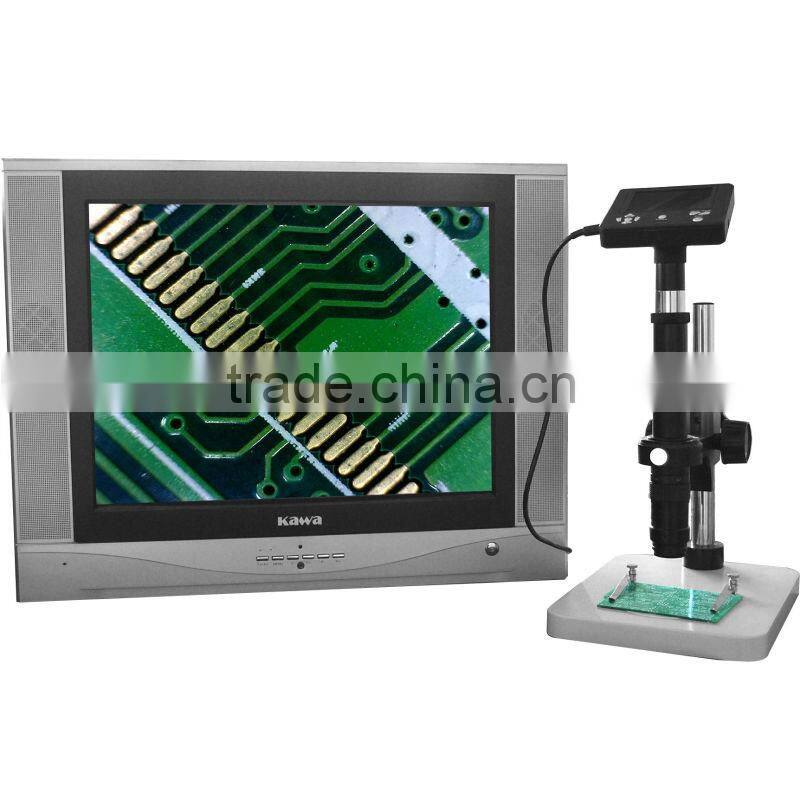

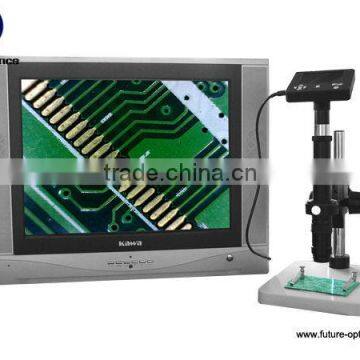

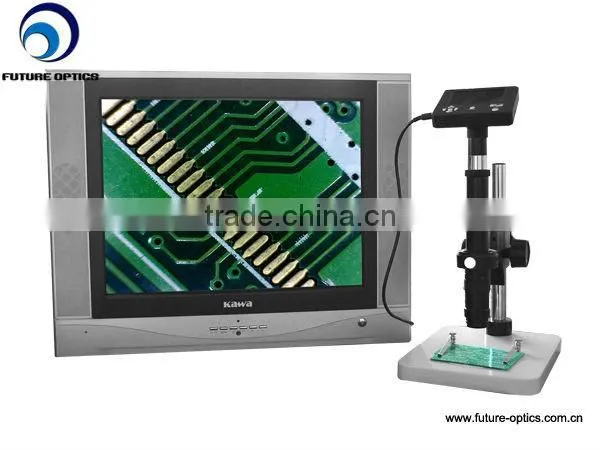

5. Video output model to show video on TV or monitor.
♦Benefits:
1.Increase the value to your biological or stereo microscope by adding digital capability without connection with a PC;
2.Adapts to any microscope – 23.2mm, 30.00mm and 30.50mm eyepiece tubes, and C-mount
3.Built-in relay lens to widen field and to have image sharp and bright;
4.Act as a LCD camera, video camera, and USB camera

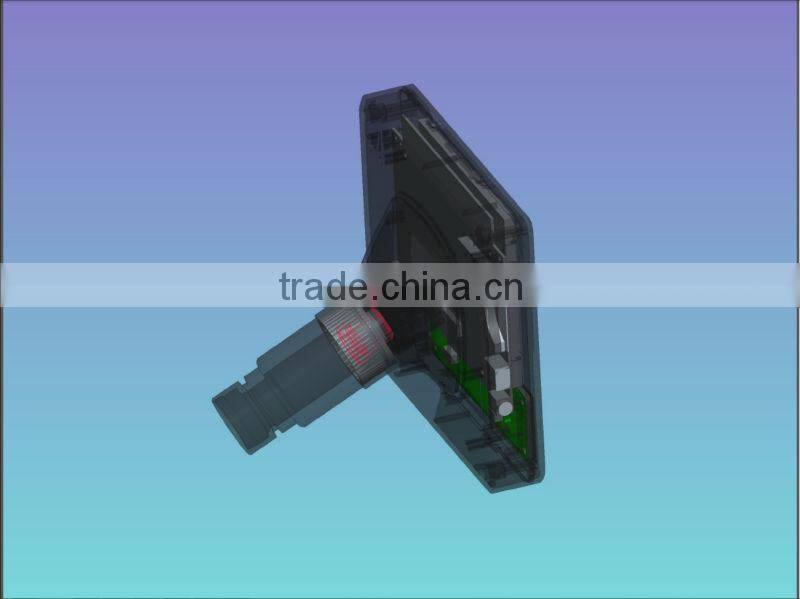

♦Special design:

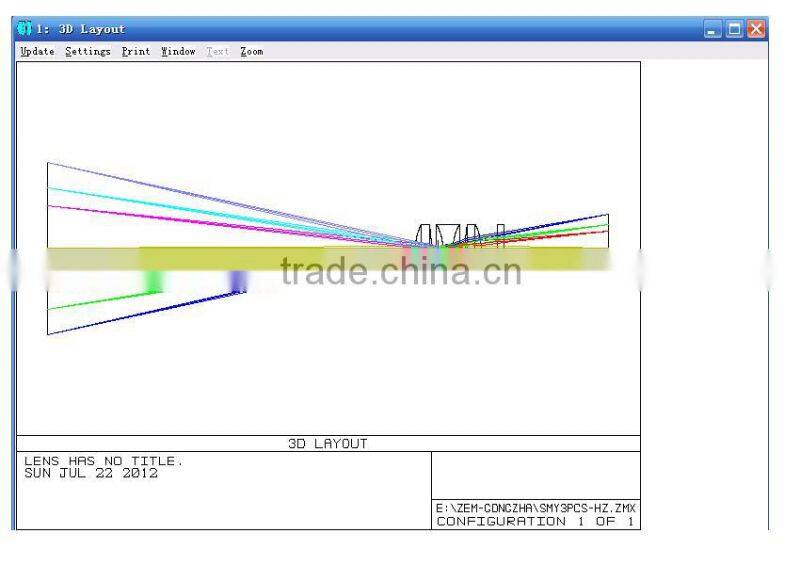

Buitl-in high identification relay lens makes image sharp and to cut away noise of background lighting and to have image more bright .
Certification:
CE issued by SGS laboratory Verification No. SHEMO0808001971T01C
FC issued by SGS laboratory Verification No.SHEMO081100389IT01C
ROHS issued by POCE laboratory, Verification No.POCE13072325TCR
Copyright software of Future Win Joe V1.0 Registration Code: 2009SR035346
ISO9001-2008 issued by kunlun certification co., Ltd Verification No. 16814QZ0030R0M
♦Detail Specifications :
Capture Mode |
Picture and Video |
Active pixels |
1600*1200 |
Sensitivity |
1.0 V/Lux-sec |
Dynamic Range |
60 dB |
S/N Ratio |
54 dB |
Spectral Range |
400-650nm(with IR-filter) |
Frame Rate |
10fps@1600*1200 |
Preview Model |
640x480,320x240 |
Exposure |
ERS or Manual |
Power Consumption. |
50mA |
White Balance |
Auto and Manual |
Out Interface |
USB , AV. LCD |
Adapter Size |
23.2mm, 30.0mm |
Power Supply |
5V DC and USB port Powered |
Device Weight |
0.18kg |
Device Size |
100mm*110mm*105mm |
Cable length |
1.5m |
Function of Software |
Image & video Capture, Edit and Management |
System Compatibility |
32bit and 64bit XP,Vista, Win7,Win8,MAC |
Language of software |
English, French, German, Spanish, Japanese, Chinese, Russian |
PC Requirements |
CPU: Inter Core2, 2.8GHz or Higher; Memory: 2GBor More; USB Port:USB2.0 High-speed Port |
Trade terms
Payment:
100% prepaid for first order
For quantity order: T/T to our company account
For sample order or trial order: T/T to our company account, Western Union, Escrow
Delivery time and shipping:
Sample order or trial order (less than MOQ) will be sent within 3 days by express, such as EMS, DHL, TNT, FedEx etc.
Bulk order (less than 500 units) will be finished within 7 days, and normally shipped by air or sea through forwarders subject to client’s confirmation.
OEM orders need an extra customization time. Generally customization will take 10 days.
Warranty:
We offer two years warranty covering all of our products, including on line technical supports, replacements of defective items with new ones and supply of accessories, basing on our service offices all over the world.
Customization:
We offer free OEM service for our regular clients or big order customers, including logo printing, sticker print, CD file design and box making .--------------more information
Free sample for clients to place repeat orders:
We welcome our potential buyers to purchase sample for test and evaluation, and we will refund the sample fee when they place repeat orders.
Pre-sales service
As a manufacturer, not a trade company, we can provide sufficient pre-sale services to help our clients understand our products before placing an order to us.
1. Provide basic knowledge to help our clients understand working principle of our products;
2. Provide key factors and skill to our clients when they choose our products;
3. Provide sample pictures or video captured by our products according to clients’ special application for test and evaluation;
4. Provide product design drawing and package drawing to help clients work out customization pattern.
