Products description:

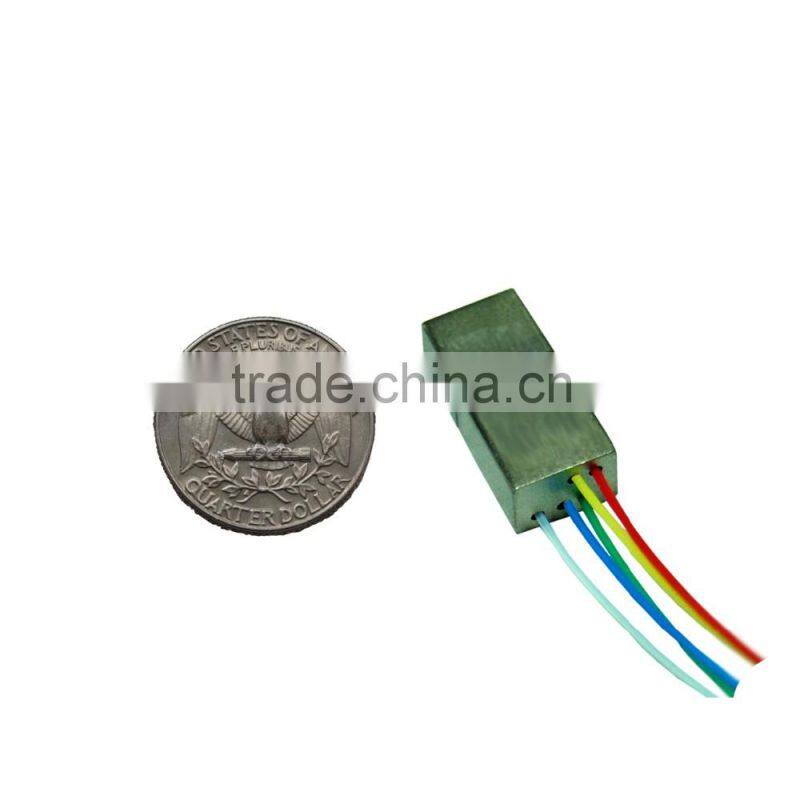

This device has the same structure as CWDM but with better controlled center wavelength. It is 5-port bi-directional device with four channels centered at 1295.56, 1300.06, 1304.59, and 1309.14nm. The dimension of such device is only 20x8x6mm, which is the most compact device in the industry and is optimized for CFP/CFP2 100GBASE transceivers.
Features:
Ultra-compact
Tight-sealed
Epoxy free optical path
Low insertion loss
Qualified Telcordia GR-1221, GR1209
RoHS Compliant
Applications:
Optimized for CFP/CFP2 100GBASE transceivers
Specifications
Optical Parameters | Specifications |
Channel Plan (Wavelength nm) | 1295.56nm, 1300.06nm, 1304.59nm,1309.14nm |
Passband (0.5 dB) | CW±1.1nm |
Insertion Loss (dB) | Maximum 1.5 Typical <1.0 |
Polarization Dependent Loss (dB) | ≤0.25 |
Adjacent Channel Isolation (dB) | ≥25 |
Non-Adjacent Channel Isolation (dB) | ≥35 |
Return Loss (dB) | ≥45 |
Directivity (dB) | ≥50 |
Mechanical |
|
Dimension (mm) | 20x8x6 |
Fiber | 250 um Corning ClearCurve Fiber, 1.0m |
Environmental |
|
Operating Temperature Range (°C) | -5 to 75 |
Storage Temperature (°C) | -40 to 85 |

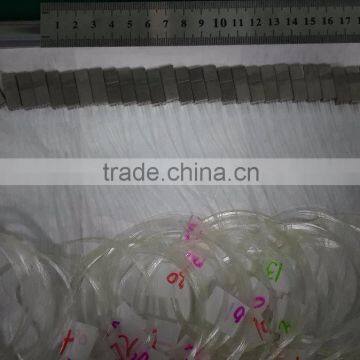

production line
product test
vibration test
temperture test
spectrum test
