1.3MP Patent MDA1300R portable digital microscope with measurement function
- 5000 Piece / Pieces per Month
- Hzngzhou Shanghai Ningbo
- T/T Credit Card
Product Details
Place of Origin: | Zhejiang, China | Brand Name: | Future Optics/ OEM | Model Number: | MDA1300R |
Theory: | Video Microscope | Drawtube: | Other |
Product Description
♦Features:
1.Digital imaging module:1.3MP high performance CMOS imaging module;
2. Imaging software: Future Win Joe image & movie capturing and processing program with movable reticle
3.Optical conjugation imaging module: One set of lenses offers two optical magnifications: 2.5X and 0.4X;
4.Zoom and focus mechanism: Bigger focus wheel and double helix rail design offers smooth and fine adjustment of focus length;
5. Uniform illumination part: Falling–in ring- lighting panel with 8 LED lamp;
6. Calibration rule: 0.1mm/10mm calibrating slide.
♦Applications:
The combination of high performance digital imaging module with innovating optics & mechanism design and powerful software provides a large breakthrough in digital microscope design. It has widely applications in industry, education, science, medicine and daily life to view, acting as a powerful digital gadget with measurement to check and to record detailed message of the micro world.
♦Function
1. Zoom function: low magnification for wider field searching and high magnification for detailed message checking;
2. Capability of capturing image in high resolution:
Display resolution:1280*1024
Picture resolution: 1280*1024
Video recording resolution: 1280*1024
3. Capture settings: Software allows you to adjust the gain, resolution, WB, contras, exposure time, image direction converter.
4. Image amendment: RGB color and gray scale.
5. Make measurement and compare with the movable software reticle calibrated.
♦Benefits:
1. Very wide dynamic range to enrich grey scale of image;
2. Well express true colors of RGB;
3. Low noise electronics, no any hot pixel inside picture;
4. Easy zooming and fine focusing with one hand or two hands;
5. Standing without support;
6. Compatibility: WIN / MAC /Linux;
7. Easy to make measurement without movement of the target.

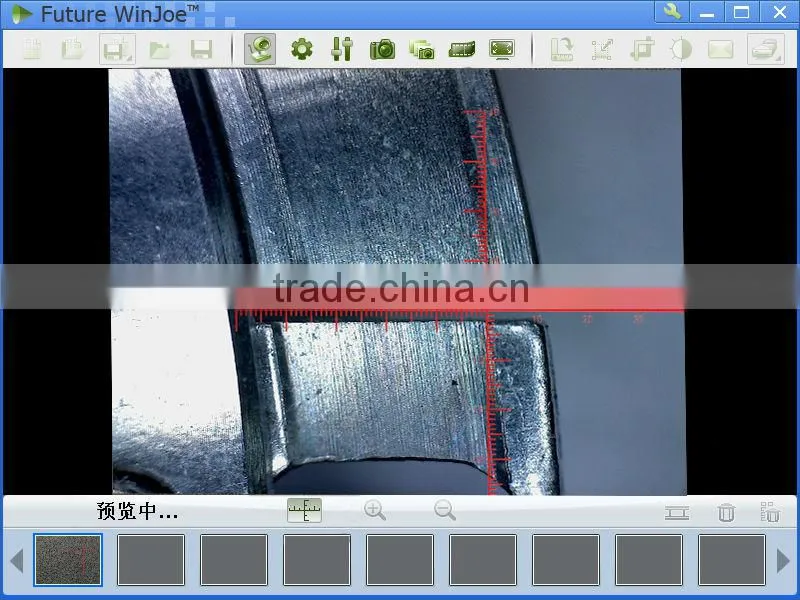

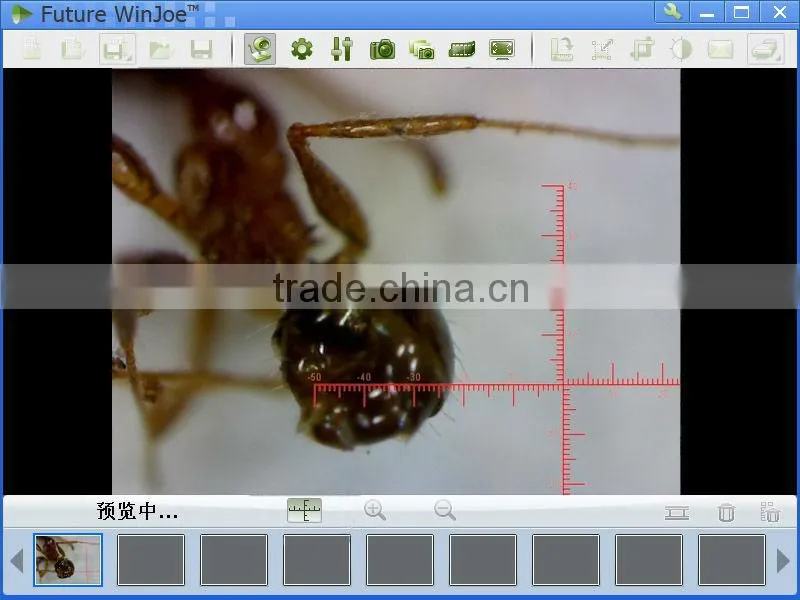

♦Caputer images
♦Quality control:
CE issued by SGS laboratory Verification No. SHEMO0808001971T01C
FC issued by SGS laboratory Verification No.SHEMO081100389IT01C
ROHS issued by POCE laboratory, Verification No.POCE13072325TCR
Copyright software of Future Win Joe V1.0 Registration Code:2009SR035346
ISO9001-2008 issued by kaixin certification co., Ltd Verification No. 06913Q12896R0S
♦OEM/ ODM:
Available for both hardware and software to be designed and made on clients' specification.
Including:
Logo package printing;
Optical system design;
PCB imaging module design;
Shell design ;
Software amendment.
♦Detail Specifications :
Capture Mode | Picture and Video |
Sensor Parameter | 1/4” 1.3MP Color CMOS |
Max. Resolution | 1280*1024 |
Pixel Size | 2.8µm*2.8µm |
Sensitivity | 1.0V / lux-sec |
Dynamic Range | 71.0 dB |
S/N Ratio | 44.0 dB |
Magnification | 1---40X; 240X |
Working Distance | 5.0MM ---∞ |
Division of calibration ruler | 0.1mm |
Spectral Range | 400-650nm(with IR-filter) |
Frame Rate | 16fps@1280*1024 |
Preview Model | 1280*1024; 640*480; 320*240 |
Exposure | ERS or Manual |
Power Consumption. | 170 mW |
White Balance | ERS or Manual |
Out Interface | USB2.0 |
Device Weight | 0.211kg |
Device Size | Φ45mm*95mm |
System Compatibility | 32bit and 64bit,XP, Vista, Win7,Win8,Mac |
Language of software | English, French, German, Spanish, Japanese, Chinese, Russian |
