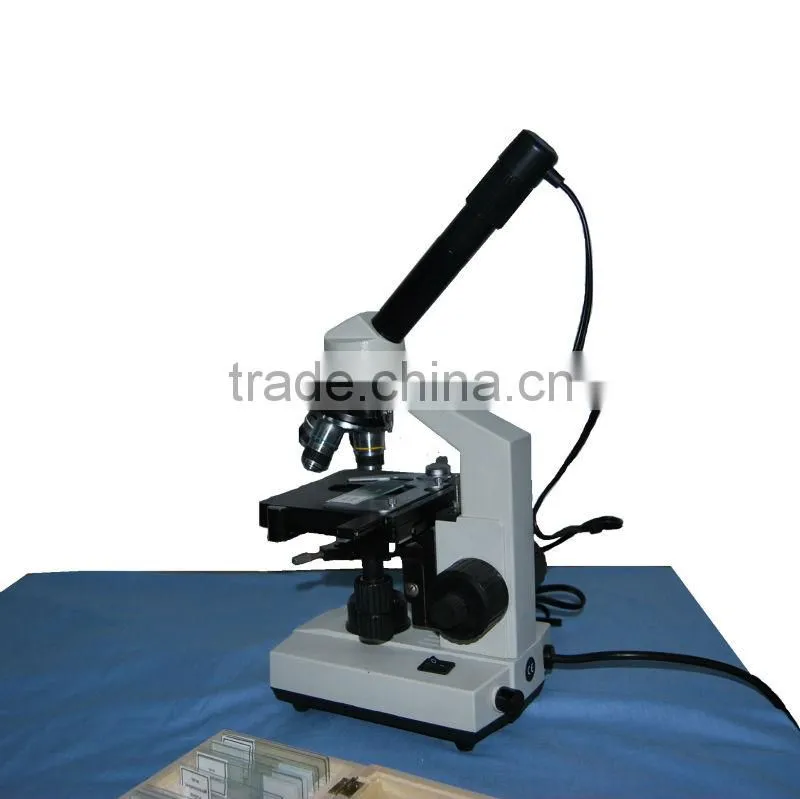

Help Center0.35MP RoHS Proved MA350-N NTSC System High Sensitivity Video Microscope Eyepiece Camera
Related Products
-
RoHS Proved 0.35MP Video Microscope Camera Connected With TV SetNegotiableMOQ: 50 Pieces -
RoHS Proved 0.35MP PAL System Video Microscope Eyepiece Camera Built-in Relay LensNegotiableMOQ: 50 Pieces
-
Professional 1.3MP RoHS Proved MD130 USB Digital Microscope Camera Equipped With Relay LensNegotiableMOQ: 50 Pieces
-
3.0MP Professional RoHS Proved MD300 USB Microscope Digital Camera Equipped With Relay LensNegotiableMOQ: 50 Pieces
-
RoHS Proved MP100 USB Digital Microscope Camera Equipped With Relay Lens and Professional Imaging Software of Future Win JoeNegotiableMOQ: 100 Pieces
1. Video imaging module:0.35MP NTSC system 720*480 video output high sensitivity imaging module;
2. Optical matching: Built-in relay lens and field lens;
3. Adapter barrel: 23.2mm and 30.0mm and 30.5mm.
4. Signal output: Video cable;
5. Camera house: compact and light-weight cylinder-shaped shell.
♦Function:
By linking with TV or monitor, to display detailed and full color video of tiny objects on screen. It’s also available to connect with a projector for public viewing and to take video recording with a video recorder for filing.
♦Benefits:
1. Easy installation and convenient operation;
2. 2, Built-in relay lens to widen field and to have image sharp and bright and to cut away the background noise
3. Automatic white balance and automatic exposure to match environmental illumination change;
4. High sensitivity sensor to capture clear images of dark target, which it’s hard to be recognized by human eye;
♦Special design:
Buitl-in matching lens to have image sharp and to cut away lighting noise of background and to save cost of an extra relay lens
♦Quality control:
CE issued by SGS laboratory Verification No. SHEMO0808001971T01C
FC issued by SGS laboratory Verification No.SHEMO081100389IT01C
ROHS issued by POCE laboratory, Verification No.POCE13072325TCR
ISO9001-2008 issued by kaixin certification co., Ltd Verification No. 06913Q12896R0S
♦OEM/ ODM:
Available for both hardware and software to be designed and made on clients' specification.
Including:
Logo package printing;
Optical system design;
PCB imaging module design;
Shell design ;
♦Detail Specifications:
Capture Mode |
Video |
Sensor Parameter |
1/4” 0.35MP |
Active pixel |
NTSC: 720H*480V ; |
Pixel Size |
5.6µm*5.6µm |
Responsivity |
11.5V/lux-sec |
Dynamic Range |
80dB |
S/N Ratio |
45dB |
Spectral Range |
400-650nm(with IR-filter) |
Frame Rate |
NTSC:60fps |
Exposure |
1/60-12µs |
Power Consumption |
168mW |
White Balance |
Auto Control |
Out Interface |
Video port |
Eyepiece Adapter Size |
23.2mm, 30.0mm |
Power Supply |
5V DC |
Device Weight |
0.36kg |
Device Size |
Φ30.0mm*109.0mm |
