Home > Instruments & Meters > Optical Lens & Instrument > Microscope > 0.35MP Video Microscope Camera

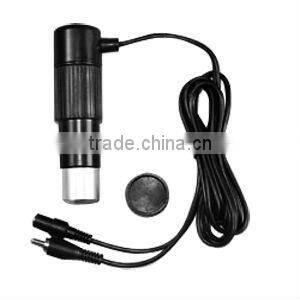

0.35MP Video Microscope Camera

Name: 0.35MP Video Microscope Camera
Brand: Future Optics
SKU: 132580673
Availability: InStock

Hangzhou Future Optics Sci & Tech Co., Ltd.

0.35MP Video Microscope Camera thumbnail-1

Negotiable MOQ: 20 Pieces (Price negotiable depending on order volume and customization)

Key Specifications

Get Latest Price

Place of Origin:

Zhejiang, China

Brand Name:

Future Optics

Model Number:

MA35

Contact Supplier Request Quote Chat Now

Payment & Shipping

Payment Methods:

Port of Shipment:

Shanghai Hangzhou

Delivery Detail:

Delivery time depends on order quantity.

Product Details
Company Profile
Contact Us

Place of Origin Zhejiang, China

Brand Name Future Optics

Model Number MA35

Theory Other, Optical Sensor

Specifications

AM10-350 composed of built in matching optical system, 1/3 inch color CMOS sensor module, AV cable and power adapter

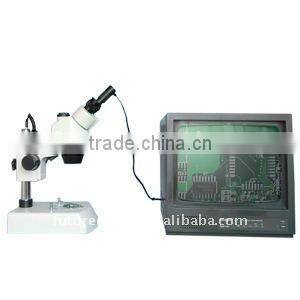

AM10-350 composed of built in matching optical system, 1/3 inch color CMOS sensor module, AV cable and power adapter, is applied to display images captured by microscope on TV set or monitor or projector for public view. The built in lenses offer 10 times optical magnification. TV system (P or N) and power supply model will be confirmed on client s demand. In comparison with digital eyepiece, AM10-350 is more convenient in operation, because on software is needed to install.

Specifications:

Capture Mode	Video
Sensor Parameter	1/3” 0.35MP
Active pixel	PAL:628586, NTSC:510496,
Pixel Size	9.2µm*7.2µm
Responsivity	5.6V/lux-sec
Dynamic Range	50dB
S/N Ratio	48dB
Spectral Range	400-650nm(with IR-filter)
Frame Rate	PAL:50fps, NTSC:60fps,
Exposure	1/60-12µs
Power Consumption	168mW
White Balance	Auto Control
Out Interface	Video port
Eyepiece Adapter Size	23.2mm, 30.0mm
Power Supply	5V DC
Device Weight	0.08kg
Device Size	Φ30.0mm*109.0mm
