Specifications
320*240 active pixelsBuilt-in achromatic relay lens
Biological microscope

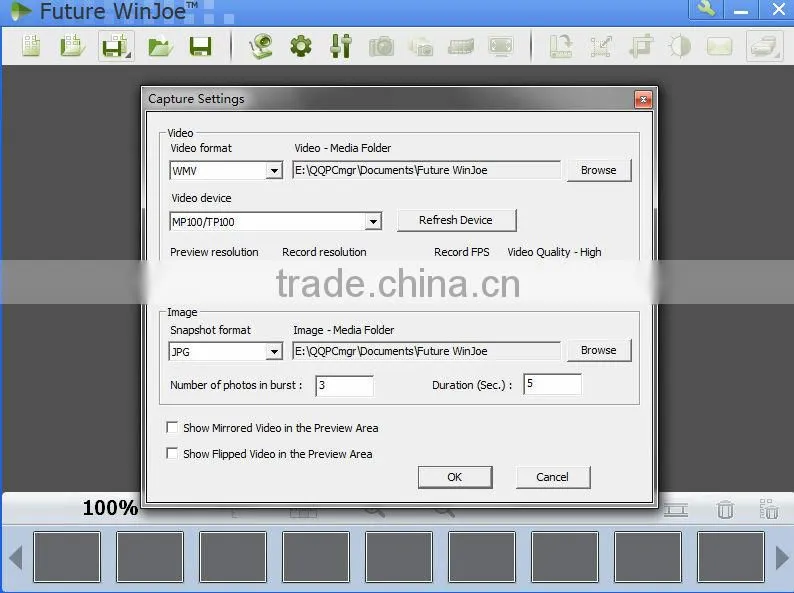

Future Win Joe image software
Win8
♦Applications:

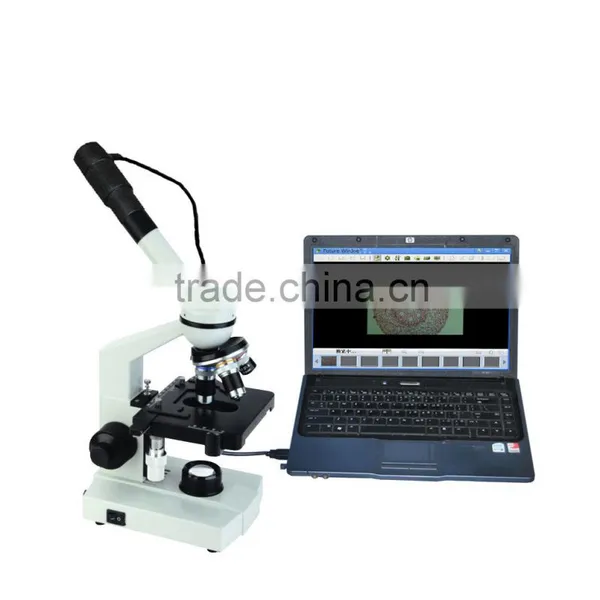

By connecting with PC, you can view images or movies of cell slide on screen and to save under the control of software. No squinting with one eye, just be enjoyable and to share with others. It’s an affordable imaging solution for microscopy in education and hobby.
♦Functions:
1. To capture images for living show, for shoot and for video recording;
2. To improve image quality by adjusting the gain, resolution, WB, contras, exposure time, RGB color and Gamma setting.
♦Benefits:
1. Easy installation, convenient operation;
2. Wide field and bright image.
3. Compatibilitywith Win/MAC
♦Quality control:
CE issued by SGS laboratory Verification No. SHEMO0808001971T01C
FC issued by SGS laboratory Verification No.SHEMO081100389IT01C
ROHS issued by POCE laboratory, Verification No.POCE13072325TCR
Copyright software of Future Win Joe V1.0 Registration Code:2009SR035346
ISO9001-2008 issued by kunlun certification co., Ltd Verification No. 16814QZ0030R0M
♦Configuration:
Digital eyepiece |
0.1 MP USB compact digital camera |
Optical eyepiece |
WF10X-18mm |
Viewing head |
Binocular head of articulated type, interpupillary distance 55-75mm |
Nosepiece |
Quadruple nosepiece with positive click stopper |
Achromatic objective (DIN45mm) |
DIN achromatic objective: 4X / NA0.10, 10X / NA0.25, 40X R/ NA0.65, 100X R(oil)/ NA1.25. |
Stage |
Built-in mechanical stage 142mmX132mm with specimen holder, controlled by coaxial knobs at low position. |
Condenser |
N.A. 1.25 Abbe condenser with Iris diaphragm |
Illumination |
Halogen bulb 6V / 20W AC85-230V |
CD of software |
Future Win Joe imaging software |
Packing |
Carton size: 36.5mm X 25.3mm X 46.8mm |
♦Main specifications:
Total magnification (optical eyepiece loaded ) |
40X, 100X, 400X, 1000X |
Equivalent magnification of digital eyepiece |
40X (17” LCD screen display pixel size: 0.2625mm ) |
Total magnification (digital eyepiece loaded ) |
160X, 400X, 1600X, 4000X |
Picture resolution |
320*240 |
Image resolution |
320*240 |
Video resolution |
320*240 |
Frame rate |
30fps@320*240 |
Active resolution of sensor |
320*240 |
Sensitivity |
190 level/lux-sec |
Dynamic rage |
31.6dB |
