2.0MP portable USB digital magnifying glass with movable reticle

Specifications

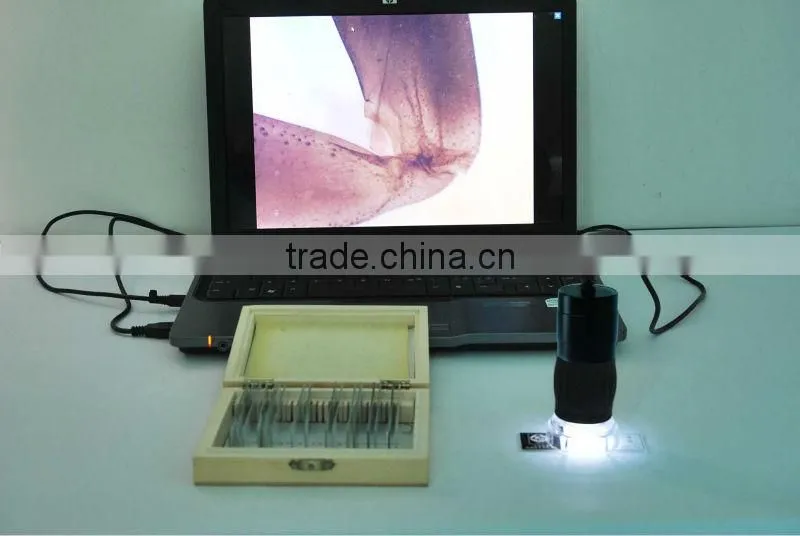

A USB gadget to magnify objects and view them on PC up to 200X with USB port connected , to take photos&movies ,and to measure.

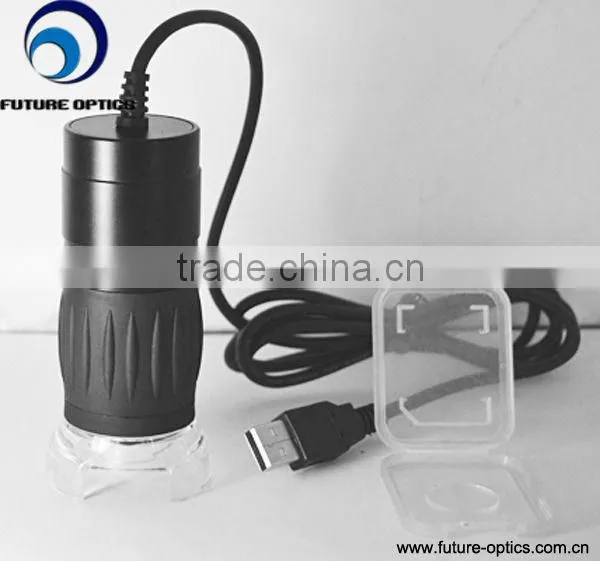

MDA2000R is composed of lighting system, optics system, sensor-IC system and software, including parts of standing base, focusing wheel, digital module cabin, USB cable, and software CD. When linking with PC and controlling by software many excellent jobs will be done, including tiny target search, display, shoot, movie, measure, compare and edit, and just function as composition of microscope, digital camera, digital video recorder, projector, scanner, micro-ruler and PC camera. MDA2000R which has a rule in order to proof the measurment is wide used in industry, education, research, health, and family life.



Features

1. Wide range of adjustable magnification from 1*~40* and 200* (17LCD Monitor), you can find the target with low magnification in wide viewing field and check its detailed message with high magnification.

2. The software of Future Win Joe copyright reserved enables you to view and to capture and to movie images in high resolution of 1600*1200, thus enables you view comfortably and get enough message file of the target inspected.

3. With the software, pictures can be saved in different formats, content can be added to the pictures and the pictures can be modified.

4. The software offers enhanced features like a movable reticle, which you can use it as an indicator to locate target in pictures, or you can take measurement with it.

5. UVC for use in Windows XP, Vista makes the operation easy and conveniently.

6. Built in 8 LED light with special parameters and special located position to ensure the field uniform in illumination and the images captured bright and clear.

7. High value of dynamic range of chip and IC board ensures images captured are of high value of gray degree to well express dark area and bright area at the same picture.

8. The design of low optical magnification combining with high digital magnification makes the MDA2000R can run at the site out of lab, just holding it or standing on the work table.

9. The design of big hand-wheel makes focusing operation easy (the lens slides along two screw tracks when the hand wheel turns).

10.The special design of optics system enables MDA2000R has a long work distance of microscope and makes it possible to act as a tool in assembly.

11.The design of metal shell insures it can be fix on a stand tightly and steadily.

12.The design of stand base makes it convenient to inspect surface, it can stand on the surface of a table without any supporting from operator.

13.Compact size: high:95mm, diam.35mm, Weight : 0.119kg



Specifications

Sensor Parameter	1/3.2" 2.0 Mega Pixels CMOS
Active Pixels	1600*1200
USB Device	USB 2.0,
Frame Rate	7.5 f/s at 1600*1200
Preview Model	1600*1200,1280*1024,640*480, 320*240,
Sensitivity	1.0V/lux-sec at 550nm
Dynamic Range	71dB
Spectrum response	400nm---1000nm
Shutter Type	ERS(electronic rolling shutter)
White Balance	Auto
USB cable length	1.5 M
Operating System	WindowsXP SP2,Vista
Basic PC	Pentium4 2.0GHz or more
	512MB RAM or more
	USB 2.0 Port
	17 Monitor or more big
