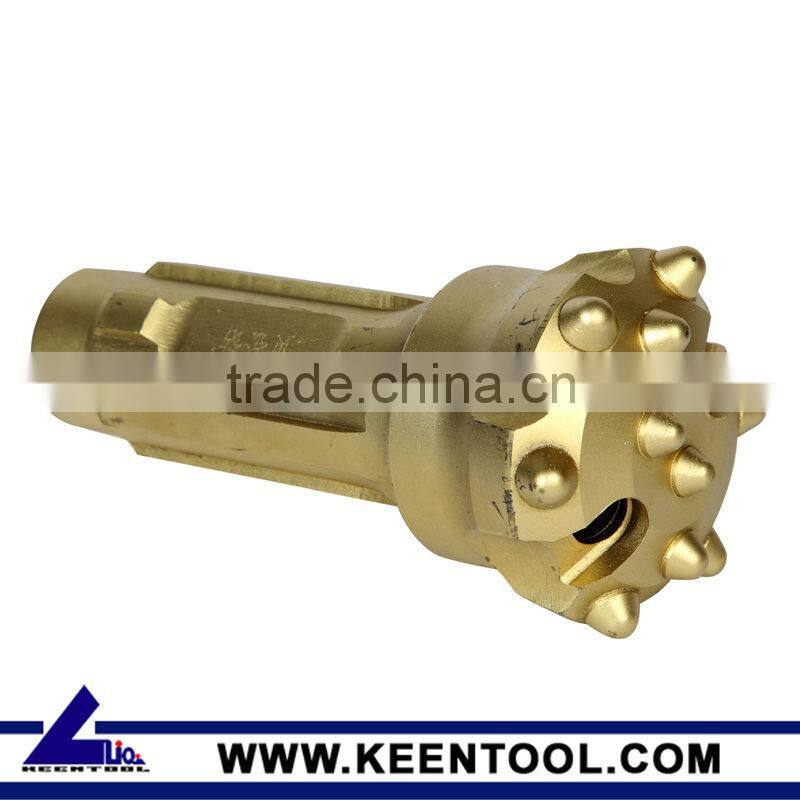

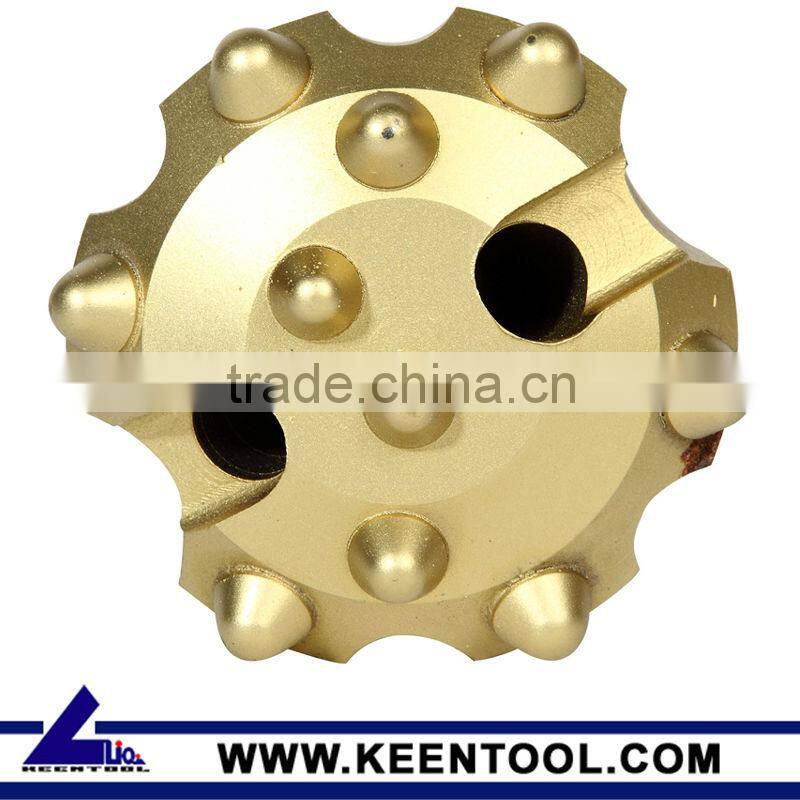

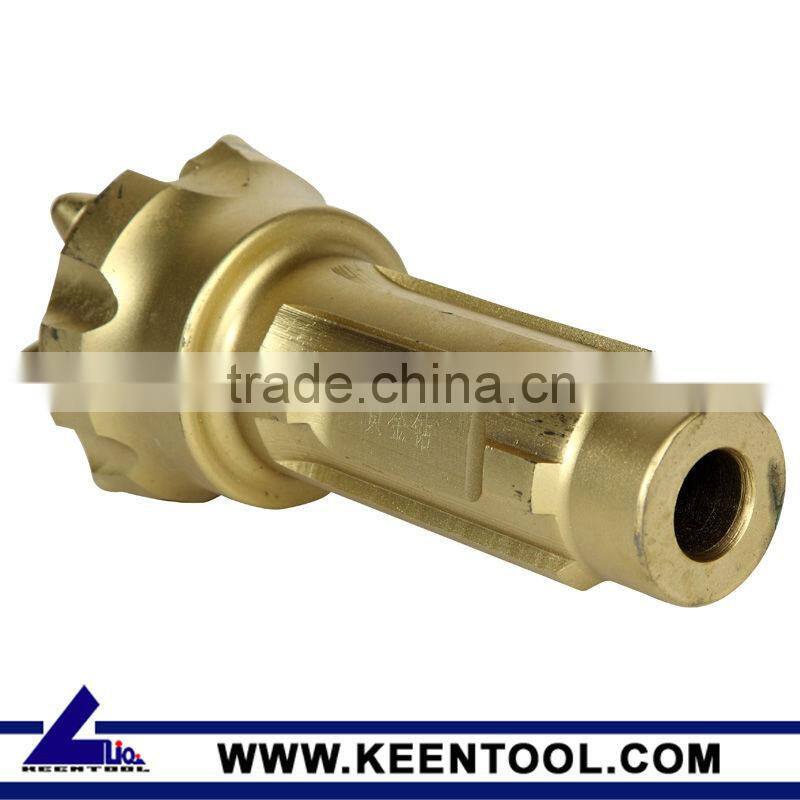

Help CenterQuarrying or Mining DTH Bits for DTH Drill Machine
Related Products
-
Pneumatic Stone Drilling RigUS$ 4,800 - 6,000MOQ: 1 Set -
Pneumatic Drill for MiningUS$ 4,800 - 6,000MOQ: 1 Set
-
Pneumatic Vertical (any Direction) Drilling MachineUS$ 4,800 - 6,000MOQ: 1 Set
-
Compressor Drilling Machine for Holes DrillingUS$ 4,800 - 6,000MOQ: 1 Set
-
Pneumatic Rock Drill for MiningUS$ 4,800 - 6,000MOQ: 1 Set
Rock Drilling Machine is mainly used for perforation working during stone quarrying. For drilling the holes of introducing the diamond wire saw, with features of easy operation, high working efficiency and easy to converge the holes.
Full Pneumatic Rock Drilling Machine commonly used for drilling use a pneumatic system: the energy thrust is transmitted by compressed air. In fact Down-The-Hole Drill Machines need air compressors. The pneumatic hammers penetrate the rock mass by means of a drill rod that is nothing more than a shaped steel rod. The pneumatic system is supported or sometimes substituted by the hydraulic system in which hydraulic oil instead of air is used to transmit the energy.
Major technical parameters of Full Pneumatic DTH drill machine:
Model |
LQ-PE-90B |
LQ-PE-90B |
Type |
Full Pneumatic |
Pneumatic & Electric |
Diameter of the drilling hole |
Φ65-Φ90 |
Φ65-Φ90 |
Max depth of drill hole |
30-40 Meter |
25-30Meter |
Drilling speed |
3-6 Meter/Hour |
4-6 Meter/Hour |
Air consumption |
9-12 M3/Min |
5-8 M3/Min |
Minimum air pressure |
0.6Mpa |
0.6Mpa |
Drilling direction |
Any direction (Horizontal, Vertical, Slant) |
|
Extension distance |
1.2 Meters |
1.2 Meters |
Advance device |
Pneumatic motor, reducer, chain |
Pneumatic motor, reducer, chain |
Rotation device |
Pneumatic motor, reducer |
Electric motor, reducer |
Adjust height of down jack |
220mm |
220mm |
Control panel |
Remote control, manual change direction |
|
Net weight |
550 KGS |
560KGS |
Features:
1- The drill is equipped with pneumatic rotation head which combined with the hole hammer permits drilling linearity to maintained, reaching considerable depths at high penertration speeds.
2- The support coloum has special fixing system with a spherical joint and an anchoring down jack which permits drilling in all directions.
3- Permit the drill height from the ground to kept to a minimum, in the case of horizontal drill.
4- Lightness of the structure are easy for handling and transportation.
When inquiring please sending the following information for our technical reference:
1. The type of motor (Full Pneumatic / Pneumatic& electric / pneumatic &hydraulic)
2. Diameter of the down-the-hole-hammer (65mm/ 90mm)
3. How many meters of pipe needed.
4. Special requirement (if any).
Packaging: All packing will be done with protection against damages while transporting.
Delivery time: In 7 days for one set of Compressor Drilling Rock.
1. Wire sawing operational assistance service.
2. Proposal for quarry development and plan, if necessary.
Related photos of DTH drill machine:
Borehole Drilling Machine
Borehole Drilling Machine
Borehole Drilling Machine
DTH Bits Borehole Drilling Machine
DTH Bits Borehole Drilling Machine
DTH Bits Borehole Drilling Machine
We, KEEN TOOL is a specialized manufacturer of diamond tools for construction industry with 20 years experience, and we mainly concentrates on series equipments and diamond wires for stone quarry work and construction work in recent 8 years. We monthly produce around 8000 Meters diamond wire and 30 sets quarry equipments now, 80% of them are for export to USA, Brazil, Australia, South Africa, East & West Europe, especially our LQ & ROC series diamond wire for natural stone quarry work, shape cutting and controlled demolition of construction (for concrete, reinforced concrete and steel rebar).
KEENTOOL will be best solution for customers in fields as below:
- Diamond Wire for stone quarry, blocks trimming and profiling.
- Diamond Wire for controlled demolition work of construction with structure of concrete, reinforced concrete and steel.
- Wire Saw Machine with variable speed and step-less tension system for quarry and block cutting.
- DTH drills with complete Pneumatic system, or Pneumatic & Electrical system for drilling the wire hole.
- Conventional Diamond Tools for processing stone and other construction materials.
Welcome to visit our website of or http://keentool.en.china.cnto know more about us.
