The diamond wire is widely recognized as the good solution for granite quarry and processing work, due to it’s relatively low comprehensive cost and high output offered. Sandstone quarry diamond wire with vulcanised rubber is with exceptional advantages for quarrying of hard materials like granite, sandstone and slate etc, for the reasons as below:
1. Vulcanised rubber adheres to the beads and cable tightly, which protects the cable against from action of pastes, in particular when takes up small radii of curvature (beginning and end of quarry cuts)
2. Good flexibility which reduces the risk of irregular wear of diamond beads.
3. Higher safety for the operator, as good protection of internal cable from break.

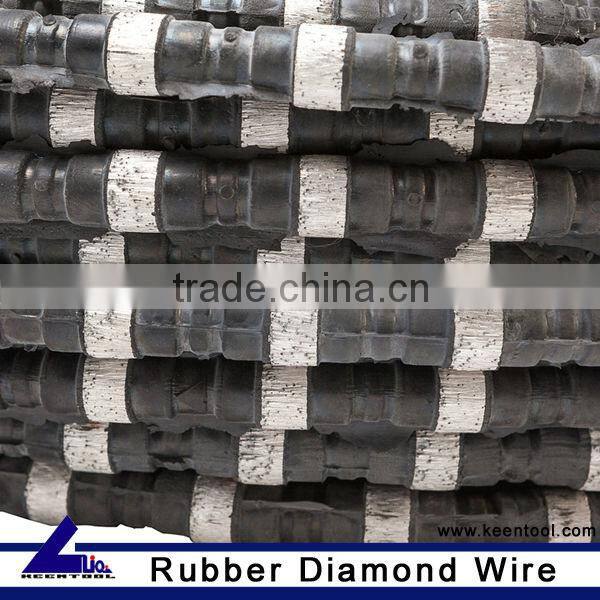

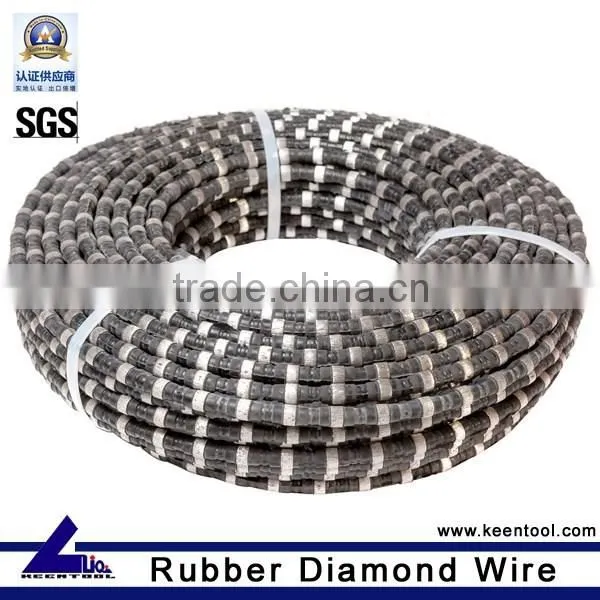

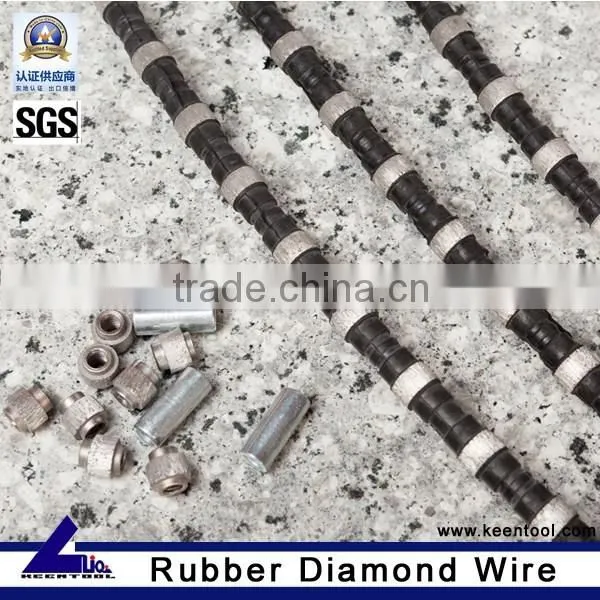

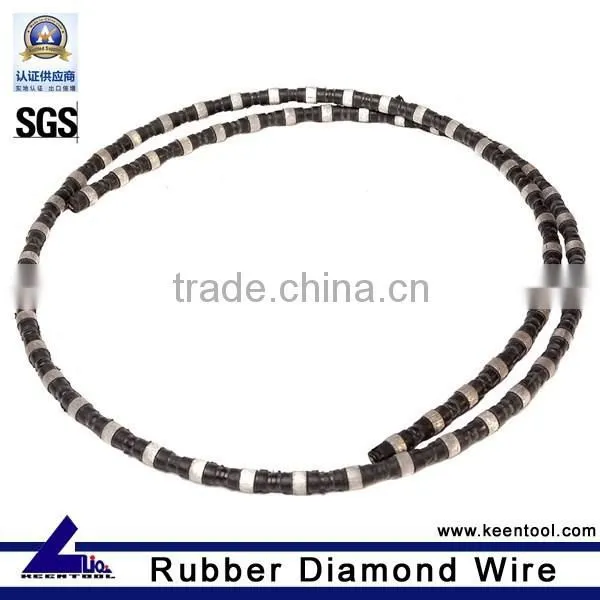

The photos of Sandstone quarry diamond wire
The parameters of Sandstone quarry diamond wire
Sandstone quarry diamond wire | ||||||
Specification of beads(mm) |
Model |
Coating |
Beads No. (Pcs/M) |
Hardness of Granite |
Cutting speed (Sqm/Hr) |
Cutting life (Sqm/Mtr) |
|
Φ11.5mm Φ11.0mm |
GDW-KT-Q |
Rubber |
40 |
Soft |
8-12 |
28-40 |
Medium |
6-8 |
18-25 |
||||
Hard |
3-5 |
8-15 |
||||
Remarks:
1. Other specifications are available as per customers’ requirement.
2. Different bond of wire beads specially for different kinds of material are available.
3. The performance of wire depends much on real cutting operation, power and tension system of wire saws, chemical composition of material and dimension of cutting bench etc.
Related products

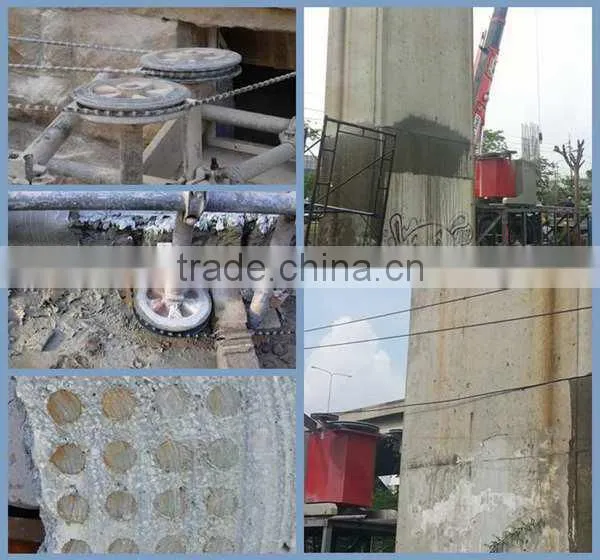

Working site
Stone fair

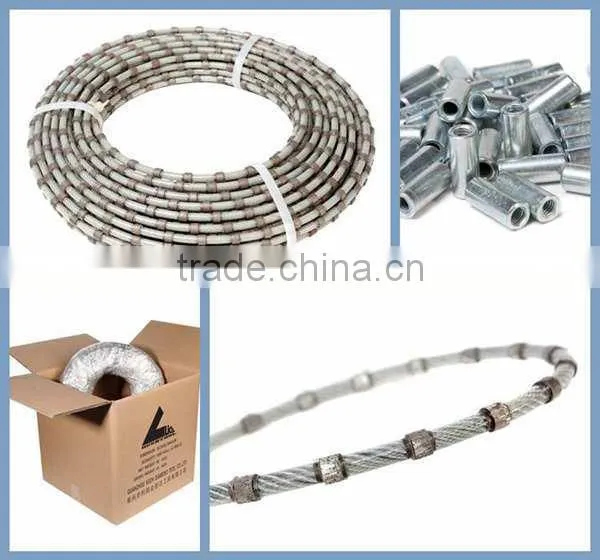

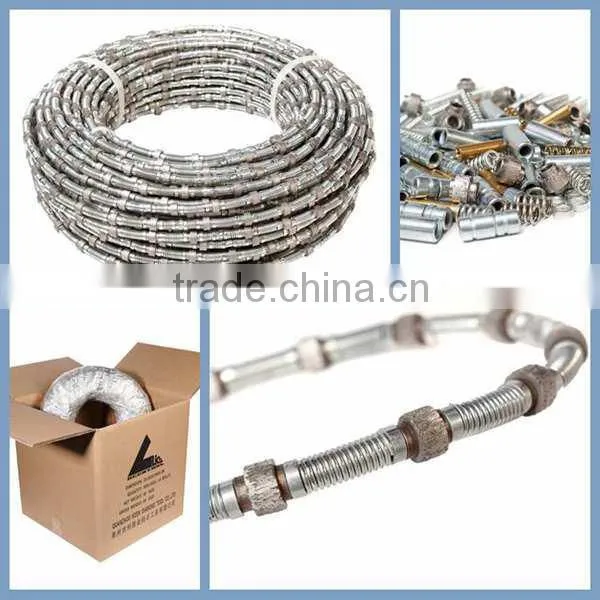

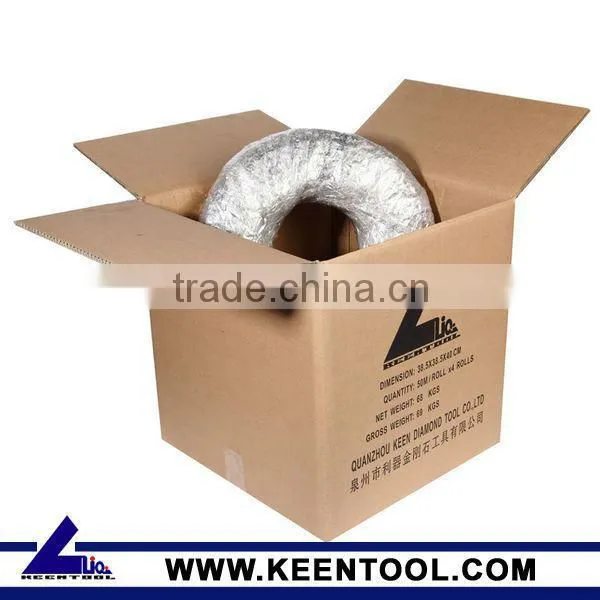

Packaging:Carton with water proof plastic.
Meters/Roll: 50 Meters/Roll
NW:/GW: 17KG/18KG
Sample lead time: In 3 working days.
Delivery time: In 14 days for quantity of 1000meters wire saw.
1. Wire sawing operational assistance service.
2. Proposal for quarry development and plan, if necessary.
We, KEEN TOOL is a specialized manufacturer of diamond tools for construction industry with 20 years experience, and we mainly concentrates on series equipments and diamond wires for stone quarry work and construction work in recent 8 years. We monthly produce around 8000 Meters diamond wire and 30 sets quarry equipments now, 80% of them are for export to USA, Brazil, Australia, South Africa, East & West Europe, especially our LQ & ROC series diamond wire for natural stone quarry work, shape cutting and controlled demolition of construction (for concrete, reinforced concrete and steel rebar).
KEENTOOL will be best solution for customers in fields as below:
1. Diamond Wire for stone quarry, blocks trimming and profiling.
2. Diamond Wire for controlled demolition work of construction with structure of concrete, reinforced concrete and steel.

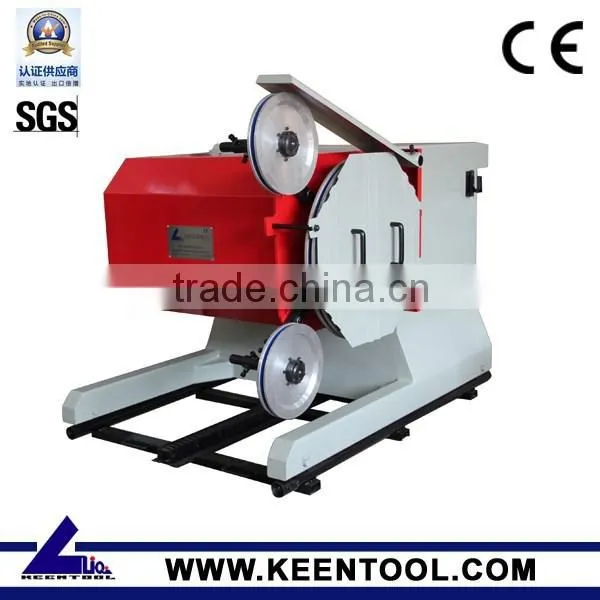

3. Wire Saw Machine with variable speed and step-less tension system for quarry and block cutting.
4. DTH drills with complete Pneumatic system, or Pneumatic & Electrical system for drilling the wire hole.
5. Conventional Diamond Tools for processing stone and other construction materials.
