China Diamond Core Drill Bit Supplier

China Diamond Core Drill Bit Supplier thumbnail-1
China Diamond Core Drill Bit Supplier thumbnail-2
China Diamond Core Drill Bit Supplier thumbnail-3
China Diamond Core Drill Bit Supplier thumbnail-4
China Diamond Core Drill Bit Supplier thumbnail-5
China Diamond Core Drill Bit Supplier thumbnail-6
China Diamond Core Drill Bit Supplier photo-1

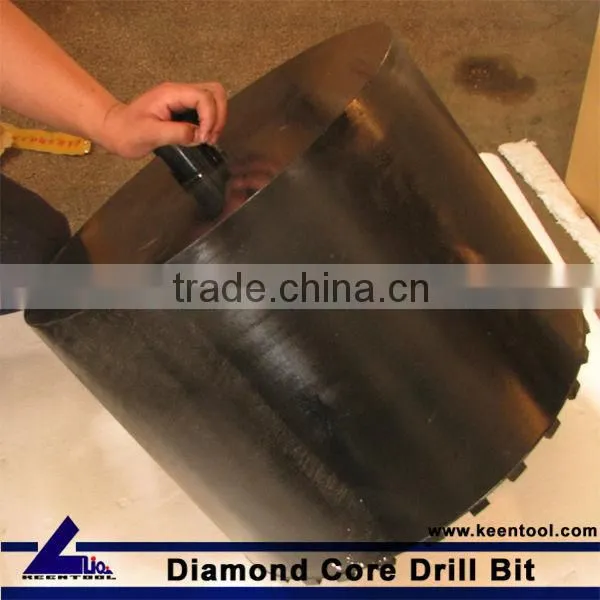

China Diamond Core Drill Bit Supplier photo-2

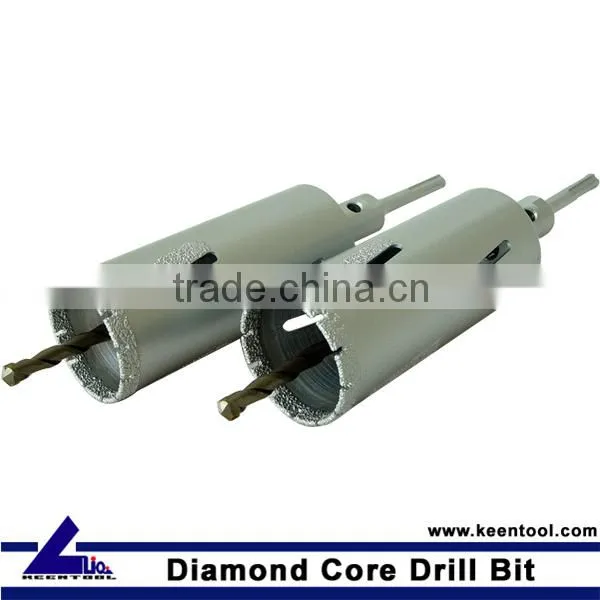

China Diamond Core Drill Bit Supplier photo-3

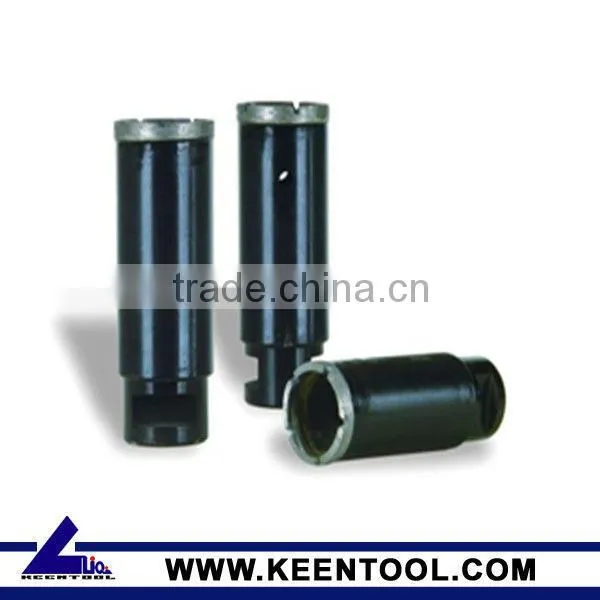

China Diamond Core Drill Bit Supplier photo-4

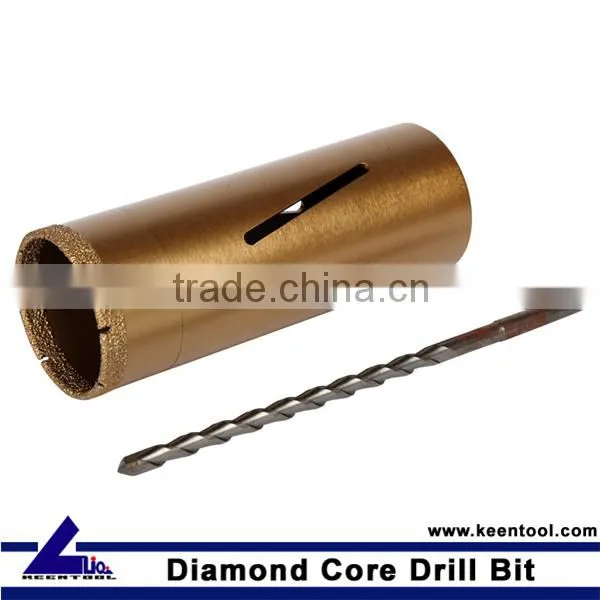

China Diamond Core Drill Bit Supplier photo-5

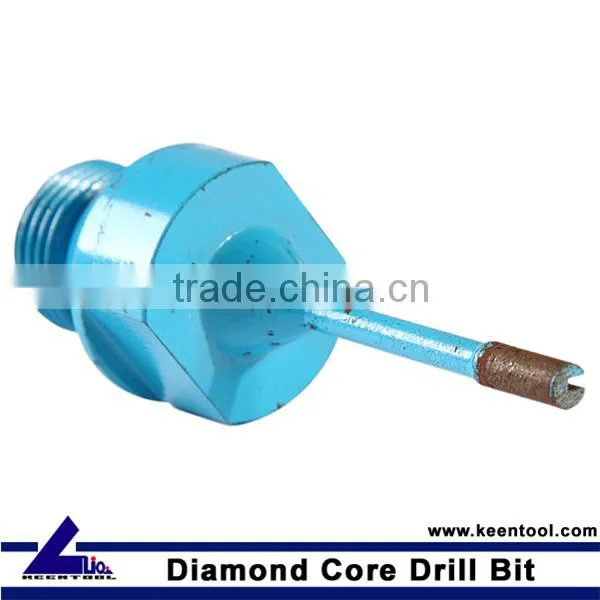

China Diamond Core Drill Bit Supplier photo-6
US$ 5 - 200 MOQ: 20 Pieces
Key Specifications
Get Latest Price
Place of Origin:
Fujian, China
Brand Name:
KEEN TOOL
Model Number:
LQ-DCD
Contact Supplier Request Quote Chat Now
Quanzhou Keen Diamond Tool Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
Xiamen
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Place of Origin Fujian, China
Brand Name KEEN TOOL
Model Number LQ-DCD
Type Other, Core Drill Bit, Diamond core drill bit supplier
Material Diamond
Use Masonry Drilling




  China Diamond core drill bit supplier

Product Description



Quanzhou Keen Diamond Tool Co., Ltd is a professional and competitive manufacturer of kinds of diamond tools, especially in the fields of diamond wires, diamond saw blades, diamond segments, diamond fickert abrasives and diamond core drill bits etc.

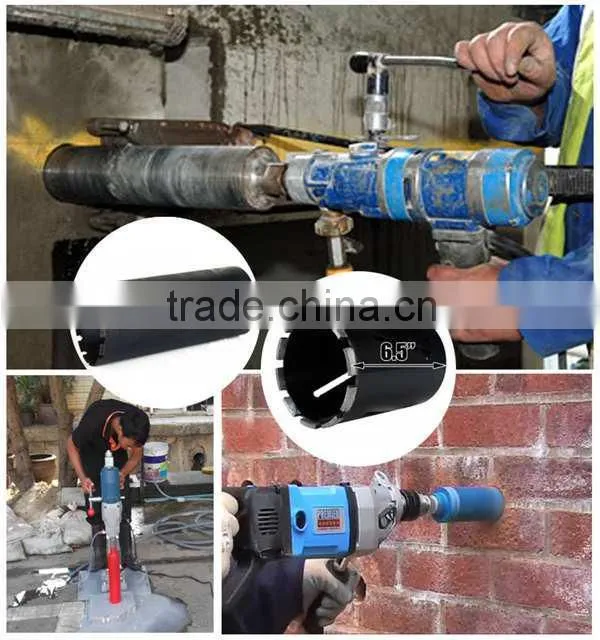

KEENTOOL offers different size of diamond core drill bit for drilling granite, marble, concrete and wall. With years of research and application of diamond core drill bit, we are pride of being able to offer high performance diamond core drill for different drilling use.



 Main features of diamond core drill bit:



  1. High frequency welding / Laser welding technology for wet/dry drilling application.
  2. Ideal for general purpose drilling, such as concrete, aggregate concrete, reinforced concrete, brick and rocks.

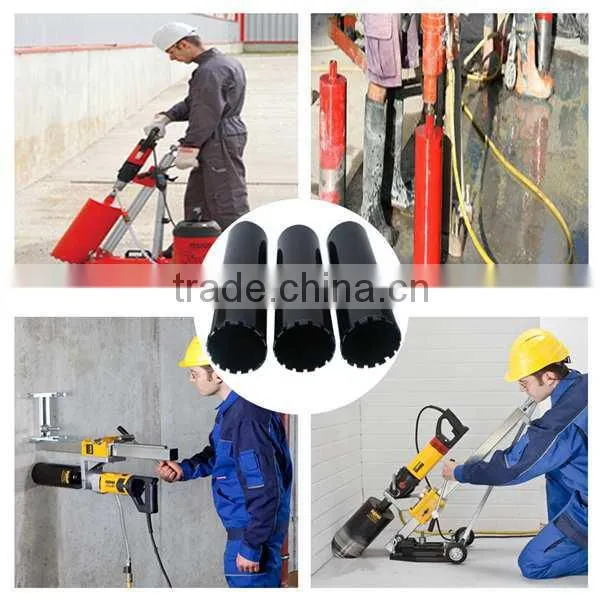

  3. Different thread to fit on core rigs or hand hold core drill machine.
  4. General specifications:



Diameter

Segment Dimensions

Segment Nos.

Length

Thread

Remarks

Inch

mm

1

25

16×3.3×10

3

300-500mm

1-1/4"-7 UNC

Brazed/Laser welded

1 1/4

32

16×3.3×10

4

300-500mm

1-1/4"-7 UNC

1 1/2

38

20x3.3x10

4

300-500mm

1-1/4"-7 UNC

1 3/4

44

20x3.5x10

5

300-500mm

1-1/4"-7 UNC

2

51

20x3.5x10

6

300-500mm

1-1/4"-7 UNC

2 1/2

64

20x3.5x10

8

300-500mm

1-1/4"-7 UNC

3

76

20x3.5x10

9

300-500mm

1-1/4"-7 UNC

3 1/2

89

20x3.5x10

10

300-500mm

1-1/4"-7 UNC

4

102

20x3.8x10

12

300-500mm

1-1/4"-7 UNC

4 1/2

114

20x4.2x10

13

300-500mm

1-1/4"-7 UNC

5

127

20x4.2x10

15

300-500mm

1-1/4"-7 UNC

5 1/2

140

24x4.2x10

14

300-500mm

1-1/4"-7 UNC

6

152

24x4.5x10

15

300-500mm

1-1/4"-7 UNC

7

178

24x4.5x10

17

300-500mm

1-1/4"-7 UNC

8

203

24x4.5x10

18

300-500mm

1-1/4"-7 UNC

9

229

24x5x10

19

300-500mm

1-1/4"-7 UNC

10

254

24x5x10

20

300-500mm

1-1/4"-7 UNC

12

305

24x5.5x10

20

300-500mm

1-1/4"-7 UNC



Remarks: Other specification is available as per customer’s requirement.



When order diamond core drill bit, please kindly inform the followings:
1). Diameter of the core drill
2). Specification of segments for core drill bits
3). The length of the core drill
4). The size and types of screw of joint
5). For what drilling use(granite, marble, concrete etc)
6). Other special requirements ( if any)

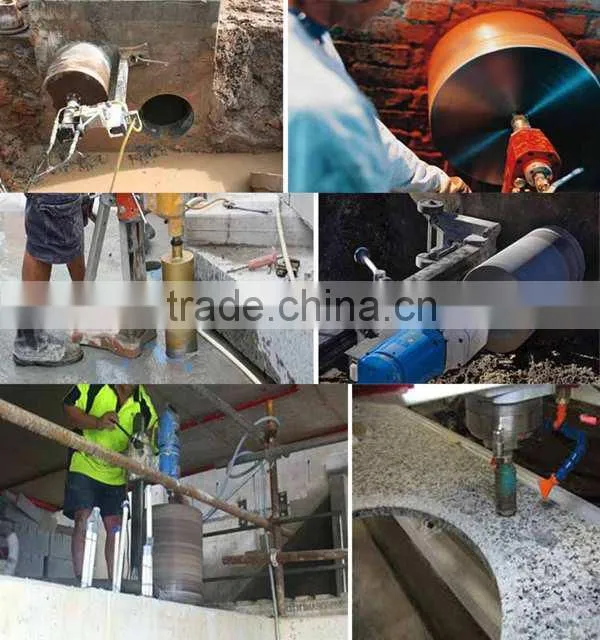

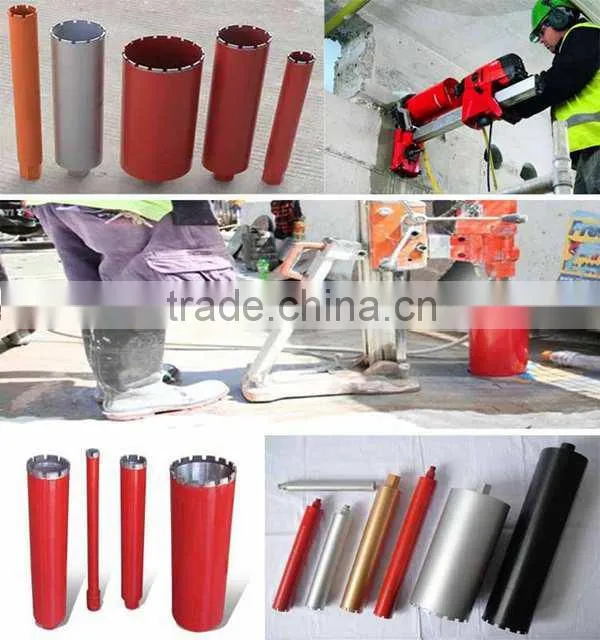

 China Diamond core drill bit supplierChina Diamond core drill bit supplierChina Diamond core drill bit supplierChina Diamond core drill bit supplier






Company Information

We, Keen Diamond Tool Co. Ltd specialize in development and production of series machinery and diamond tools for stone quarry, processing and civil construction work, especially in the fields of diamond wires, diamond beads, wire saws, DTH drill etc. All of our products have been proved in very competitive performance in USA, Brazil, Mexico, Sweden, Germany, South Africa, Thailand etc.



 We, KEEN TOOL is a specialized manufacturer of diamond tools for construction industry with 20 years experience, and we mainly concentrates on series equipments and diamond wires for stone quarry work and construction work in recent 8 years. We monthly produce around 8000 Meters diamond wire and 30 sets quarry equipments now, 80% of them are for export to USA, Brazil, Australia, South Africa, East & West Europe, especially our LQ & ROC series diamond wire for natural stone quarry work, shape cutting and controlled demolition of construction (for concrete, reinforced concrete and steel rebar).



KEENTOOL will be best solution for customers in fields as below:



1. Diamond Wire for stone quarry, blocks trimming and profiling.

2. Diamond Wire for controlled demolition work of construction with structure of concrete, reinforced concrete and steel.

3. Wire Saw Machine with variable speed and step-less tension system for quarry and block cutting.

4. DTH drills with complete Pneumatic system, or Pneumatic & Electrical system for drilling the wire hole.

5. Conventional Diamond Tools for processing stone and other construction materials.

China Diamond core drill bit supplierChina Diamond core drill bit supplier



Welcome to visit our website of or http://keentool.en.china.cn to know more about us.
