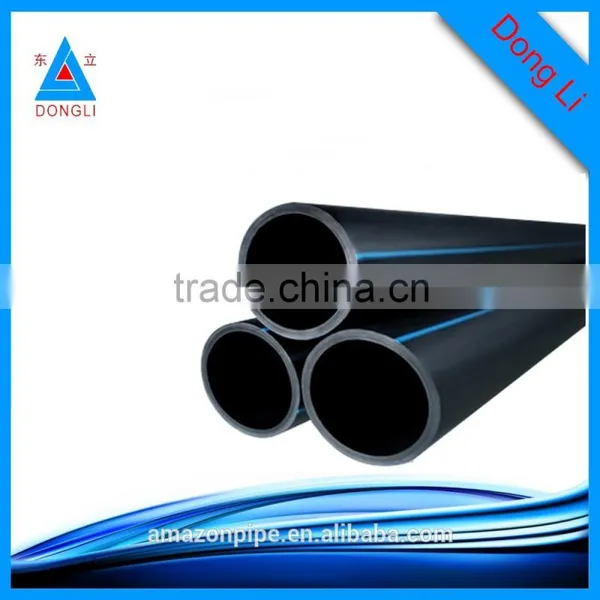

hdpe water supply pipe pe80 pe100 Features:
- Material: high quality PE100
- Sizes: 20 to 630mm
- Pressure Rating: 0.4MPa, 0.6MPa, 0.8MPa, 1.0MPa, 1.25MPa, 1.6MPa
- Colors: blue, black or other colors on request
- Connection: socket fusion joint, butt fusion joint, electro fusion joint, flanged joint
- Standard: ISO 4429 and BS6920
- Applications: water supply, industrial liquids transportation and sewage treatment
- Non-toxic: no heavy metal additives, would not be covered with dirt or contaminated by bacterium
- Corrosion Resistant: resist chemical matters or electron chemical corrosion
- Lower Installation Costs: light weight and ease of installation can reduce installation costs by as much as 50% over metal piping system
- Higher Flow Capacity: smooth interior walls result in lower pressure loss and higher volume than metal pipe
- Longevity: more than 50 years under proper use
- Recycled and Environment-friendly
hdpe water supply pipe pe80 pe100 size:
PE100 Water Supply Pipe | |||||
| SDR26, PN0.6MPa | SDR21, PN0.8MPa | SDR17, PN1.0MPa | SDR13.6, PN1.25MPa | SDR11, PN1.6MPa | |
| dn | en | en | en | en | en |
| 20 | 2.3 | ||||
| 25 | 2.3 | ||||
| 32 | 3.0 | ||||
| 40 | 3.7 | ||||
| 50 | 4.6 | ||||
| 63 | 4.7 | 5.8 | |||
| 75 | 4.5 | 5.6 | 6.8 | ||
| 90 | 4.3 | 5.4 | 6.7 | 8.2 | |
| 110 | 4.2 | 5.3 | 6.6 | 8.1 | 10.0 |
| 125 | 4.8 | 6.0 | 7.4 | 9.2 | 11.4 |
| 160 | 6.2 | 7.7 | 9.5 | 11.8 | 14.6 |
| 180 | 6.9 | 8.6 | 10.7 | 13.3 | 16.4 |
| 200 | 7.7 | 9.6 | 11.9 | 14.7 | 18.2 |
| 225 | 8.6 | 10.8 | 13.4 | 16.6 | 20.5 |
| 250 | 9.6 | 11.9 | 14.8 | 18.4 | 22.7 |
| 280 | 10.7 | 13.4 | 16.6 | 20.6 | 25.4 |
| 315 | 12.1 | 15.0 | 18.7 | 23.2 | 28.6 |
| 355 | 13.6 | 16.9 | 21.1 | 26.1 | 32.2 |
| 400 | 15.3 | 19.1 | 23.7 | 29.4 | 36.3 |
| 450 | 17.2 | 21.5 | 26.7 | 33.1 | 40.9 |
| 500 | 19.1 | 23.9 | 29.7 | 36.8 | 45.4 |
| 560 | 21.4 | 26.7 | 33.2 | 50.8 | |
| 630 | 24.1 | 30.0 | 37.4 | 46.3 | 57.2 |
hdpe water supply pipe pe 80pe100 application:
1.Urban tap water pipe network system
Large diameter PE pipe, health non-toxic, not fouling, more suitable for urban water supply main conduit and buried tube, safety, hygiene, convenient construction.
2.Used for old nets renovation project, don’t need large area excavation, low cost, can be widely used in old town of pipe network reconstruction.
3.Industrial materials duct
Chemical industry, chemical fiber, food, forestry, pharmacy, light industry and papermaking, metallurgical and other industrial raw material conveying pipe.
4.Landscaping water supply network
Landscaping need lots of water pipe, PE pipe toughness and low cost, make it become the best choice.
5.Sewage discharge pipes
PE pipe have unique corrosion resistance, can be used in industrial wastewater, sewage discharged pipe,low costs and maintenance costs .
6.Ore, mud transfers
PE pipe has high resistance to stress and wear resistance, can be widely applied in conveying ore, coal ash and river bait-casting mud.
7. Agricultural irrigation pipe
PE pipe inside sleek, great flow, cross road construction, good impact resistance, it is the ideal tool for agricultural irrigation.
