factory price DN50-DN1000 black pe plastic pipes steel framed hdpe pipe
DN/mm |
Pressure/MPa |
||||||
1 |
1.25 |
1.6 |
2 |
2.5 |
3.5 |
||
Specification |
Deviation |
EN/mm AND Deviation/mm |
|||||
75 |
0+1.2 |
|
|
5.0+01.2 |
5.00+1.2 |
5.50+1.5 |
6.00+1.5 |
90 |
0+1.4 |
|
|
5.50+1.5 |
5.50+1.5 |
5.50+1.5 |
6.00+1.5 |
110 |
0+1.5 |
5.50+1.5 |
5.50+1.5 |
7.00+1.5 |
7.00+1.5 |
7.50+1.5 |
8.50+1.5 |
140 |
0+1.7 |
5.50+1.5 |
5.50+1.5 |
8.00+1.5 |
8.50+1.5 |
9.00+1.5 |
9.50+1.5 |
160 |
0+2.0 |
6.00+1.5 |
6.00+1.5 |
9.00+1.5 |
9.50+1.5 |
10.00+2.0 |
10.50+2.0 |
200 |
0+2.3 |
6.00+1.5 |
6.00+1.5 |
9.50+1.5 |
10.50+2.0 |
11.00+2.0 |
12.50+2.2 |
225 |
0+2.5 |
8.00+1.5 |
8.00+1.5 |
10.00+2.0 |
10.50+2.0 |
11.00+2.0 |
|
250 |
0+2.5 |
10.50+2.0 |
10.50+2.0 |
12.00+2.2 |
12.00+2.2 |
12.50+2.2 |
|
315 |
0+2.7 |
11.50+2.2 |
11.50+2.2 |
13.00+2.5 |
13.00+2.5 |
|
|
355 |
0+2.8 |
12.00+2.2 |
12.00+2.2 |
14.00+2.5 |
|
|
|
400 |
0+3.0 |
12.50+2.2 |
12.50+2.2 |
15.00+2.8 |
|
|
|
450 |
0+3.2 |
13.50+2.5 |
13.50+2.5 |
16.00+2.8 |
|
|
|
500 |
0+3.2 |
15.50+2.8 |
15.50+2.8 |
18.00+3.0 |
|
|
|
560 |
0+3.2 |
20.00+3.0 |
|
|
|
|
|
630 |
0+3.2 |
23.00+3.0 |
|
|
|
|
|
The inner plastic PE layer bears the inner pressure.
The outer plastic PE layer is convenient for welding operation.

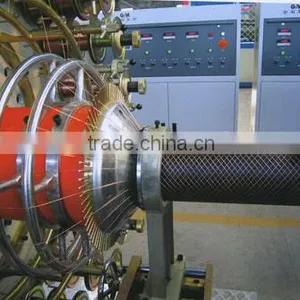

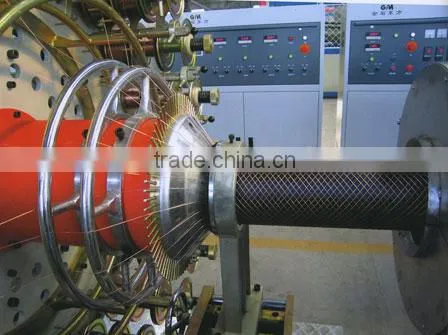

The steel wire mesh layer can effectively suppress the chronic crack growth (SCG) and the rapid crack propagation (RCP) and increase bearing strength, creep resistance, impact resistance, better than that of HDPE pipe.
The high strength adhesive layer can effectively avoid the delaminating of metal layer and plastic layer with different expansion expansion rate
| Model Number | DN50MM-DN1000MM |
| Material | pe, steel wire and hot melt adhesive |
| Nominal Pressure | 0.8/1.0/1.25/1.6/2.0/2.5/3.5/4.0/5.0/6.3/7.0(Mpa) |
| Characteristics | double-faced anticorrosion |
| Structure | excellent and no easy to be burst |
| Service life | over 50 years |
| Mechanical properties | big strength and impact resistance |
| Application |
used for underground wastewater, electrical and optical cable protection, eeawater and rainwater transmission, and so on. |
Product Characteristic of factory price DN50-DN1000 black pe plastic pipes steel framed hdpe pipe
1.It’s strength, rigidity and shock resisitance are higher than that of plastic pipes.
2.Double-faced anticorrosion:having the same anticorrosion property with plastic pipes.
3.Raised using temperature;low thermal conductivity;heat preservation on outside pipe surface not needed in
winter and no dewing in summer.
4.Smooth inner surface and no scaling make head loss lower than steel pipes by 30%.
5.Mature electrofusion connection technique is adopted in pipeline connection:Electrofusion fittings have
complete type and specification,with strong resistance to axial tension.
6.Light in weight,thus concenient to transport and install;integrated reliability of this pipe line is high;
service life could reach 50 years under normal working diversified pipe connection modes conditions.
7.Due to its low cost,health and drug-free, it is the best substitute of galvanized steel pipes.
Application of facatory price DN50-DN1000 black Pe plastic pipes steel framed hdpe pipe.
1. Municipal underground wastewater and sewage pipelines.
2. Drainage and sewage pipelines in factories and sewage treatment plant.
3. Ventilation system pipelines.
4. Electrical and optical cable protection use pipeline system.
5. Seawater and rainwater transmission pipelines.
6. Water gathering and water percolation system.
7. Agricultural irrigation water pipelines.
8. Production of chemical processing vessel.
Thank you for your view of our products,
For detailed information,like pipe speficiation,test report,loading capacity and so on,please pressue" contact supplier" or click " Chat Now".
