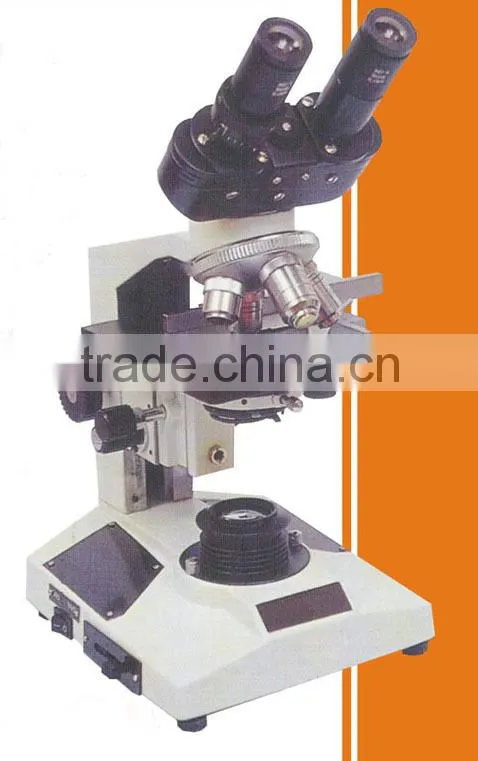

Binocular Microscope / Laboratory Microscope / Pathology Microsocpe / Biology Microscope

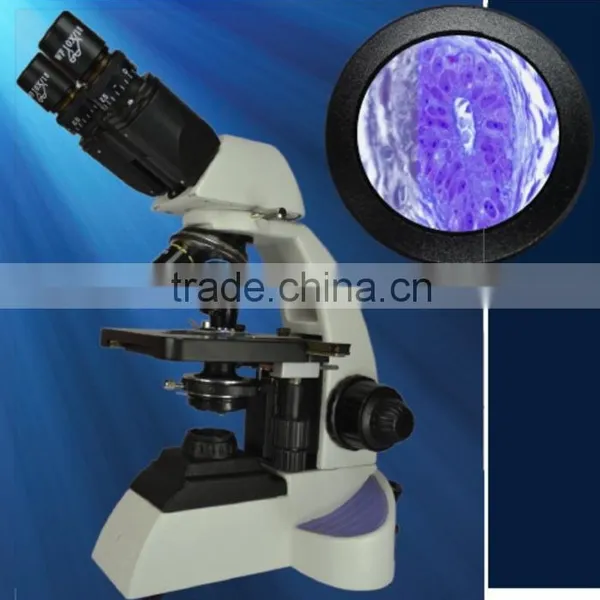

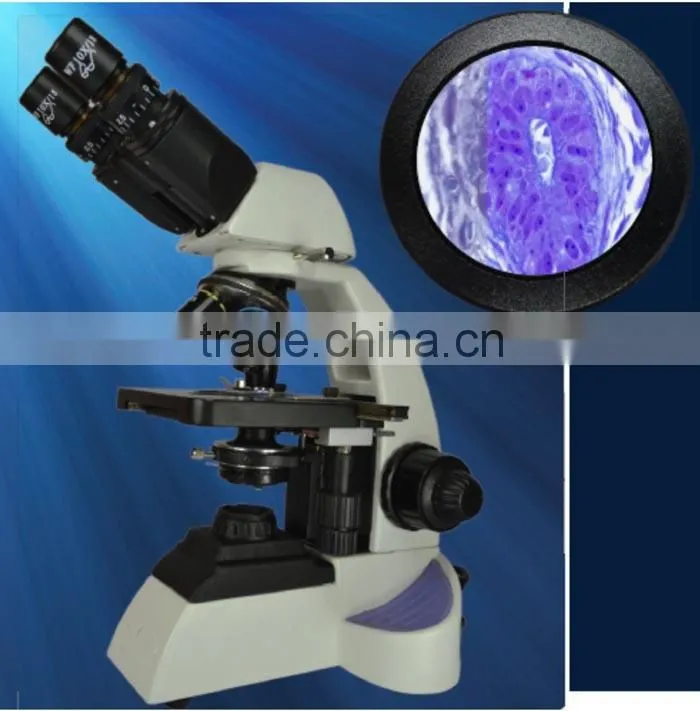

BINOCULAR MICROSCOPE MODEL RMB-1 PLUS

Roslane Meditech offer, various models of Export Quality Laboratory Microscopes, at most affordable price, as per the buyer’s need.

Here, we are submitting, the Biological Binocular Microscopes, as per the specifications given below:

Optical Systems: Finite optical system.

Stand: sturdy stand with anti rust materials.

Magnification: 40x to 1000x for visual observation.

Eyepiece tube: Binocular head 30°, 360° rotatable, IPD 55mm - 75mm.

Eyepiece: Widefield eyepieces 10x, FOV 18mm, antifungal coated.

Nosepiece: Upright, quadruple nosepiece (Ball bearing type) with click stops and rubber grip.

Mechanical stage: Double plate stage size 140mm X140mm. X/Y travel range 90mm X 65mm. Low driveright side movement controls. Ceramic coated surface for scratch resistance. Double

specimen holder clip.

Objectives: DIN Semi Plan Achromatic objectives 4x (N.A. 0.10, W.D. 25mm), 10x (N.A.0.25, W.D. 6.7mm),40x (SL, N.A. 0.65, W.D. 0.6mm) and 100x (SL, Oil, N.A. 1.25,W.D. 0.17mm) antifungal, antireflection coated.

Condenser: Abbe condenser NA 1.25 with aspheric lens. Iris diaphragm with Frosted white filter. Rack and pinion movements on stainless steel guides.

Coarse and fine focusing: Co-axial coarse and fine focusing on gear systems for smooth operation. Fine adjustment 0.2mm/rotation with maximum 2 micron scale increment.

Illumination: LED 3.3W 3V illumination with variable control. Up to 100,000 hours of LED life.

Electronics: Universal input 110V - 240V AC, 50/60 Hz.
