Home > Electrical & Electronics > Telecommunication & Broadcasting > Radio & TV Broadcasting > DT-7141HE Transmitter Wireless

DT-7141HE Transmitter Wireless

Name: DT-7141HE Transmitter Wireless
Brand: dexin
SKU: 132554601
Availability: InStock

DT-7141HE Transmitter Wireless thumbnail-1

DT-7141HE Transmitter Wireless thumbnail-2

DT-7141HE Transmitter Wireless thumbnail-3

US$ 1 - 5,000 MOQ: 1 Set

Key Specifications

Get Latest Price

Place of Origin:

Sichuan, China

Brand Name:

dexin

Model Number:

DT-7141HE

Contact Supplier Request Quote Chat Now

Dexin Digital Technology Corp. Ltd. (Chengdu)

Payment & Shipping

Payment Methods:

Port of Shipment:

chengdu china

Delivery Detail:

Delivery time depends on order quantity.

Product Details
Company Profile
Contact Us

Place of Origin Sichuan, China

Brand Name dexin

Model Number DT-7141HE

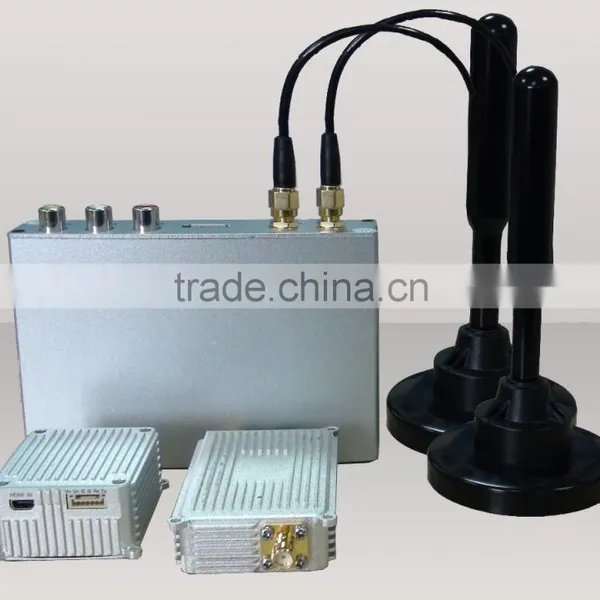

DT-7141HE Mini Transmitter for Drone Aircraft

- - - wireless transmitter

Outline

Dexin DT-7141HE mini encodulator+transmitter is a set of real-time image transmission system which is specially designed for working with mini drone aircraft. It integrates encoder, modulator, transmitter and antenna. It converts the real-time signal from the mini camera into RF and send back to groud wirelessly. The returned signal will be received by the accessary STB and displayed on TV screen. .

Principle Chart

Main Features

l Support standard HDMI wireless transmission, support up to1080P resolution

l Frequency & Transmission distance: 300MHz-860MHz can reach 5-10 km; 860MHz-1500MHz can reach 1-3 km.

l Receiving frequency range: 300MHz-862MHz

l Transmission delay 300-350ms

l H.264 encoding format, high quality encoding

l Channel selectivity and channel spurious suppression characteristics

l Excellent receiving sensitivity, stable image transmission at high speed above 230km/hours

Specifications:

Transmitter

Video	Interface	HDMI input
	Resolution	1920x1080_60P, 1920x1080_50P 1920x1080_60i, 1920x1080_50i 1280x720_60P,1280x720_50P 720x576_50i, 720x480_60i
	Video Format	PAL/NTSC
	Encoding Format	MPEG-4 AVC/H.264
	Bitrate	0.8Mbps~30Mbps
	Rate Control	CBR
	GOP Structure	IPPP
Audio	Encoding Format	MPEG-1 Layer2
	Sampling Rate	48KHz
	Resolution	24-bit
	Bite rate	64Kbps-192Kbps
RF frequency		300~1500MHz, 10 KHz step
RF Output and Power		300MHz-860MHz, ≤1W 860MHz-1500MHz, ≤500mw
RF Interface		RF output (RPSMA )
Modulation mode		COFDM DVB-T
Bandwidth		6M,7M,8M
Transmission Rate		1-8Mbps
Code Rate		1/2, 2/3, 3/4, 5/6, 7/8
Guard Interval		1/32, 1/16, 1/8, 1/4
Constellation		QPSK, 16QAM, 64QAM
Transmission Mode		2K 8K
MER		≤25dB
Transmission Delay		300MS-350MS
Antenna interface and impedance		RPSMA male, MMCX female,impedance 50Ω
Operating Voltage		DC 24V/DC 12V
Temperature		-10℃ ~+50℃(Operating); -20℃~75℃(Storage)
Transmission Distance		300MHz-860MHz, 5-10km 860MHz-1500MHz, 1-3km
Weight		≤110g (antenna and cables are exclusive)
Dimension		Encodulator	46(L)40(W)24mm(H)
		Amplifier	68(L)43(W)20mm(H)

Receiving Box:

Model NO	DR-2108
RF frequency	300MHz-862MHz
Input Impedance	75Ω
Signal Level	-80dBm~-10dBm
Channel Band Width	6M/7M/8M
Constellation	QPSK, 16QAM, 64QAM
Guard Interval	1/32, 1/16, 1/8, 1/4
FEC	1/2, 2/3, 3/4, 5/6, 7/8
Carrier Mode	2K 8K
Transport Stream	MPEG-4AVC/H.264HP@L4 MPEG-2 MP@HL/ML
Video Aspect Ratio	4:3/16:9
Video System	PAL/NTSC
Video Output	1±0.3Vpp
Video Resolution	HDMI	1920x1080_60P, 1920x1080_50P 1920x1080_60i, 1920x1080_50i 1280x720_60P,1280x720_50P 720x576_50i, 720x480_60i
	CVBS	720x576_50i
Audio Decoder	MPEG-2/HE_AAC(DD/DD +optional)
Audio Output	R/L/ST
A/V Output interface	Video RCA Jack×1,Audiop RCA Jack(R/L) ×2
Upgrade and Multimedia Port	USB
Power Consumption	≤4.5W
Power Supply	DC+12V~24V±10%
Operating Temperature	-10℃~+50℃
Dimension	1157727mm
