IP2IP video transcoderMPEG-2 SD/HD to H.264 SD/HD any-to-any
IP input + 6 tuners/ASI input

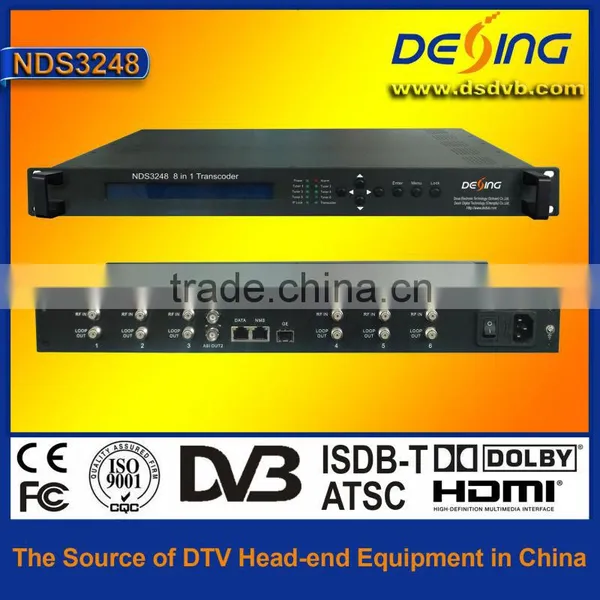

NDS3248 8-IN-1 IP2IP video transcoder

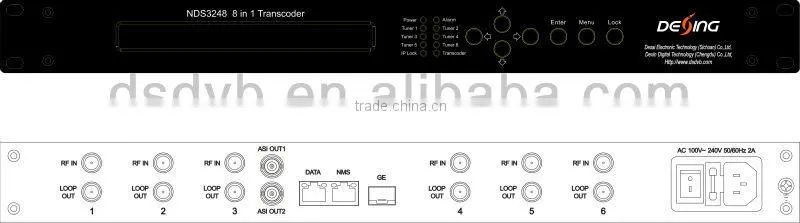

6 tuners + IP input Panel
6 ASIs + IP input Panel
Brief Introduction
NDS3248 is a professional bidirectional trans-coder to convert video between H.264 and MPEG-2 format and also to trans-code between HD and SD programs simultaneously. It is equipped with 6 tuner inputs to receive channels directly from satellite, or ASI /IP inputs to receive digital channels. After trans-coding, it outputs MPTS & SPTS through the DATA port or ASI port.
This trans-coder supports advanced re-multiplexing and can effectively provide operators with real-time code rate switch and optimize the video with its high performance.
It can be easily managed through web NMS system, and has become an ideal solution for operator to provide high quality video trans-coding.
Key Features
- Ø Support 8 * IP (SPTS/MPTS UDP) input plus 6 tuners input
- Or 8 * IP (SPTS/MPTS UDP) input plus 6 ASI input
- Ø Support 8*SPTS & 1*MPTS (UDP) output and 1 ASI output
- Ø Video Trans-coding: MPEG-2 SD/HD and H.264 SD/HD any-to-any
- Ø Audio Trans-coding: AAC and MPEG-2 any-to-any or pass-through
- Ø Support maximal 8 SD or 4 HD programs trans-coding
- Ø Support maximal 8 channel audio trans-coding
- Ø Supporting 1920x1080I, 1280x720P, 720x576i, and 720x480i resolutions
- Ø Supporting CBR and VBR rate control
- Ø Advanced re-multiplexing
- Ø LCD & Key board local control; web NMS management

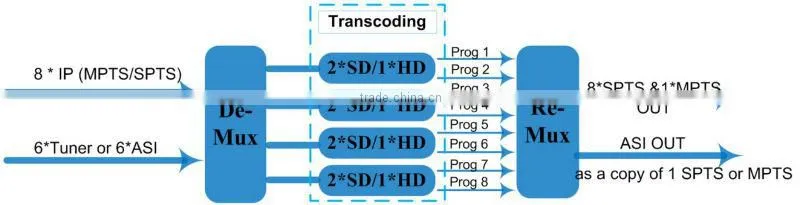

Principle Chart

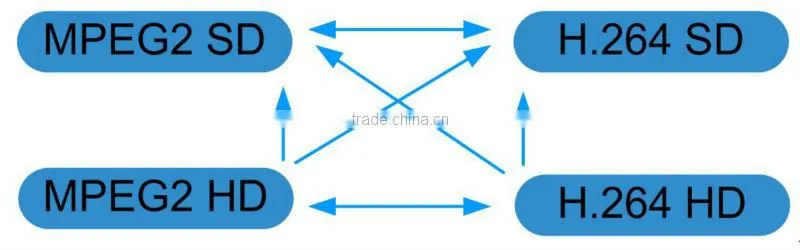

Trans-coding Mode Example
Technical Specifications
Stream In |
MPTS/SPTS over UDP, 1000Base-T Ethernet Interface/ SFP interface |
||
6 * Tuner (DVB-C/T/ISDB-T/ATSC); 6 * ASI (optional) | |||
Video |
Resolution |
1920x1080I,1280x720P, 720x576i, 720x480i |
|
Trans-coding |
4*MPEG2 HD → 4*MPEG2/H.264 HD ; 4*MPEG2 HD → 4*MPEG2/H.264 SD ; 8 *MPEG2 SD → 8 *MPEG2/H.264 SD |
||
|
4* H.264 HD → 4*MPEG2/H.264 HD ; 4* H.264 HD → 4*MPEG2/H.264 SD ; 8* H.264 SD → 8 *MPEG2/H.264 SD | |||
Rate Control |
CBR/VBR |
||
Audio |
Trans-coding |
MPEG-1 Layer 2 to AAC any-to-any |
|
Sampling rate |
48KHz |
||
Bit Rate |
64Kbps-384Kbps |
||
Stream Out |
8*SPTS & 1*MPTS over UDP, 1000Base-T Ethernet Interface (UDP uni-cast / multicast) /SFP interface |
||
1*ASI (as a copy of one of the 8 SPTS or the MPTS) output, BNC interface | |||
System function |
LCD & Key board control; web NMS management |
||
Ethernet software upgrade | |||
General |
Dimensions |
430mm×405mm×45mm(WxDxH) |
|
Approx weight |
4.8 Kg |
||
Temperature range |
0~45°C(Operation), -20~80°C(Storage) |
||
Power requirements |
AC 110V±10%, 50/60Hz or AC 220V±10%,50/60Hz |
||
Power consumption |
20W |
||
Order Information
Version |
4 ASI or Tuner Input |
6 ASI or Tuner Input |
IP Input |
Simple Version |
l |
|
|
Advanced Version |
|
l |
l |
