South American Market ISDB Standard Multiplexer ISDB-Tb Multiplexer

South American Market ISDB Standard Multiplexer ISDB-Tb Multiplexer thumbnail-1
South American Market ISDB Standard Multiplexer ISDB-Tb Multiplexer photo-1
US$ 1 - 3,000 MOQ: 1 Set
Key Specifications
Get Latest Price
Place of Origin:
Sichuan, China
Brand Name:
DEXIN
Model Number:
3105A
Contact Supplier Request Quote Chat Now
Dexin Digital Technology Corp. Ltd. (Chengdu)
Payment & Shipping
Payment Methods:
Port of Shipment:
chengdu
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Place of Origin Sichuan, China
Brand Name DEXIN
Model Number 3105A

Specifications

ISDB-Tb multiplexer
1.ISDB_T and ISDB_TB standard
2.SPTS and MPTS code stream multiplexing

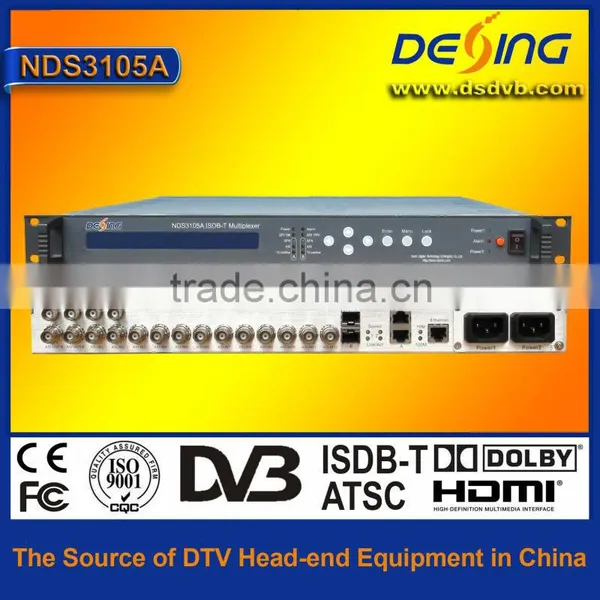

NDS3105A ISDB-Tb multiplexer





Outline

 NDS3105A ISDB_T multiplexer is a TS re-multiplexer developed to adapt Japan and those South American countries such as Brazil and Argentina. It supports 2 separate multiplexers which are fully complying with ISDB-T standard. This multiplexer can transfer the head-end single program and multi-program to ISDB-T standard TS as required. Additionally, it also supports PSI/SI table editing and generating, single frequency network and IIP packet editing and inserting. What’s more, the NDS3105A ISDB-T multiplexer can support up to 6channels input and 2 channels output, the transmission mode is compatible with hierarchy. User can upgrade and control the multiplexer system online through network.



Features

  •   SPTS and MPTS code stream multiplexing
  •   PSI/SI information editing and generating; descriptor data inserting
  •   PCR correction and PID re-mapping function
  •   NMS supporting, keypad parameter setting
  •   Network long-distance upgrading function
  •   Two groups separate output
  •   Huge buffer, suddenly code stream resistance
  •   188/204Byte transmission stream packet
  •   Fully complying with ISDB_T and ISDB_TB standard
  •   Supporting hierarchy transmission
  •   Supporting each kind of table’s user-define in its transmission layer
  •   External 1PPS and 10MHz inputting; supports SFN
  •   Separately set the parameters such as time delay for each device when it works as SFM mode
  •   Section receiving
  •   Number of segments, encoding code rate, modulation mode, time domain interlacing length for each layer and be set separately
  •   IIP packet editing and inserting



Specifications



Signal inputting

12 groups inputting ( max value: 214Mbps/group)

188/204Byte transmission stream packet

TS packet mode and suddenly code rate mode

GPS 10mhz reference clock inputting

GPS 1pps signal inputting

Re-multiplexing

TS re-multiplexer

256 PID mapping for each group(manual, auto optional)

PCR correction

PSI/SI table automatically generating

Modulation parameter

mode mode1(2k)    model2(4k)    model3(8k)

Guard interval 1/4   1/8  1/16   1/32

Coding rate 1/4   2/3  3/4   5/6   7/8

constellation DQPSK  QPSK  16QAM  64QAM

Layer A      A+B    A+B+C

Bandwidth 6MHz    7MHz     8MHz

SFN parameter

Maximum time delay 0ms ~ 1000ms

Off set -1000ms ~ +1000ms

Device ID 0 ~ 30

Output

2 groups separate output

RS encoding output supporting

1pps signal loop-out

General

Demission 44mmx482mmx410

Temperature0~45°C(operation)    -20~80°C(storage)

Power supply220VAC±10%,50Hz,10W
