Digital tv Headend Scrambler

Digital tv Headend Scrambler thumbnail-1
Digital tv Headend Scrambler photo-1
US$ 1 - 1,000 MOQ: 1 Piece
Key Specifications
Get Latest Price
Place of Origin:
Sichuan, China
Brand Name:
NeoDs
Model Number:
NDS3701
Contact Supplier Request Quote Chat Now
Dexin Digital Technology Corp. Ltd. (Chengdu)
Payment & Shipping
Payment Methods:
Port of Shipment:
CHENGDU
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Place of Origin Sichuan, China
Brand Name NeoDs
Model Number NDS3701

Specifications

digital tv headend scrambler
1. 2 DVB standard ASI port (BNC)
2 .TS bit rate: Up to 155Mbps
3.2 DVB standard ASI output

digital tv headend scrambler

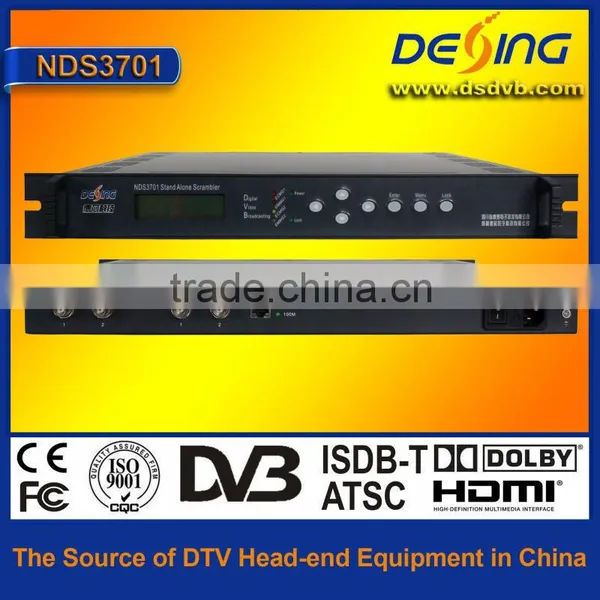

NDS3701 Stand Alone Scrambler



Outline:

The NDS3701 Stand Alone Scrambler can simulcrypt scramble the input stream, and the embedded control word generator can transmit the constant or variable control word to scrambler the input transmitting stream. The internal simulcrypt synchronous controller can transmit the control word and the access conditions to exchange the information with the ECMG. When the scrambler works with the CA system, it can easily help the decoder to correctly decrypt the control word, and decode the scrambling stream by properly controlling the CP. Its high compatibility and integrate design make this device widely being used in the digital TV scrambling field.

Features

  1. Adopts the general scrambling system description ETR289
  2. It can DVB scramble the specific program or the basic transmitting stream
  3. Complies with the DVB common scrambling algorithm, supports the simulcrypt mode, be compatible with a variety of CV systems.
  4. Analysis the overall MPEG stream
  5. Re-treating the PSI/SI
  6. Protecting the input and output ASI stream channel
  7. Supports four different CAS system simultaneously
  8. Supports huge buffer memory, and resists the unexpected code stream
  9. Supports the bit-rate self-adoption, the re-adjustment and the re-mark of PCR
  10. Real-time effective bit-rate monitoring
  11. The database format: 188/244 bytes
  12. Monitoring the work state by network system
  13. Supports the CAS remote connection scrambling

Specification

Input interface

Two DVB/ ASl (one for reserve)

Output interface

Two DVB/ ASl

Output bit-rate

1~54mpbs

Management

Ethernet port 10/100M

General

Dimension

482mm×410mm×44mm

Weight

3.5kg

Work temperature

0~45°C(working ),-20~80°C(storage)

Power supply

AC 110V±10%,50/60Hz or AC 220V±10%,50/60Hz

Power consumption

11W
