Help CenterNDS3302 IP to Atsc-t Modulator
Related Products
Specifications
dual IP streams input, re-muxdual carrier combined output
Web-based NMS operation

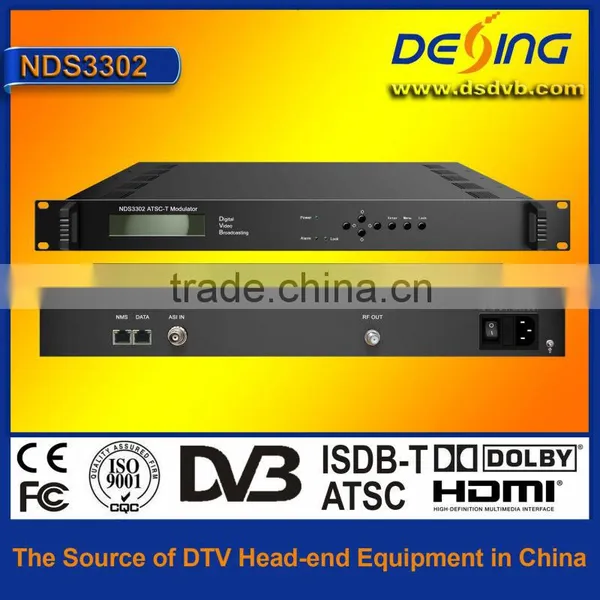

NDS3302 IP to ATSC-T Modulator
Outline
DEXIN NDS3302 ATSC modulator is a high performance modulator developed according to ATSC A/53 standard. It provides a more powerful receiving ability to receive double IP streams from encoder, multiplexer, DVB gateway and etc. It also has a powerful output capacity with two adjacent carrier output.
For management and operation, this device supports local and remote control through a web-based NMS system.
Features
* Fully complying with ATSC A/53 standard
* Dual IP streams input
* Huge buffer memory for the burst code stream
* Support program multiplexing
* Dual carrier combined output
* RF Output frequency range: 30MHz~1000MHz in 1 kHz step
* Support VCT insert
* LCD and keyboard operation
* Web-based NMS operation
Specifications
IP Input |
2 Channels IP input over UDP (Unitcast/Multicast) (100M based Ethernet) |
|
|
Anti-jitter IP Bandwidth: 0-7 |
|
RF Output |
Standard |
ATSC A/53 |
Carriers |
2 adjacent carriers output |
|
RF Range |
30~1000MHz, 1kHzStepping |
|
Constellation |
8 VSB |
|
Bandwidth |
6M |
|
Output Level |
-25dBm~-5dBm,0.1dB Stepping |
|
System |
LCD/keyboard operating and Web-based NMS support |
|
Ethernet software upgrading | ||
General |
Dimension |
482mm×300mm×44mm (W*D*H) |
Weight |
2.3kg |
|
Temperature |
0~45°C(Operation) ; -20~80°C(Storage) |
|
Power |
AC 110V±10%, 50/60Hz; or AC 220V±10%, 50/60Hz |
|
Consumption |
25W |
|
Principle Chart
