NDS3306 IP to ISDB-T Modulator
- chengdu china
- T/T Money Gram Credit Card
You May Like
Product Details
| Place of Origin | Sichuan, China | Brand Name | DEXIN | |
| Model Number | NDS3306 |
Product Description
Specifications
IP to rf modulator4 IP streams input, re-mux
dual carrier combined output, 4ip out
Web-based NMS operation
NDS3306 IP to ISDB-T modulator
Outline
DEXIN NDS3306 IP to ISDB-T modulator is a high performance modulator developed according to ARIB STD-831 standard. It provides a more powerful receiving ability to simultaneously process 4 IP streams inputting from encoder, multiplexer, gateway and etc head-end. It outputs digital RF after multiplexing process.
For management and operation, this device supports local and remote control through a web-based NMS system.
DEXIN NDS3306 IP to ISDB-T modulator is a high performance modulator developed according to ARIB STD-831 standard. It provides a more powerful receiving ability to simultaneously process 4 IP streams inputting from encoder, multiplexer, gateway and etc head-end. It outputs digital RF after multiplexing process.
For management and operation, this device supports local and remote control through a web-based NMS system.
.
Features
*
l Complying with ARIB STD-831 standard
l 1000M IP port, 4 IP streams input
l Support 4 IP output
l Programs output through RF with multiplexing
l Dual adjacent carriers output
l RF Output frequency range: 30MHz~1000MHz in 1 kHz step
l Support PID remapping
LCD/keyboard and Web-based NMS operation
Specifications
IP Input | 4* IP (MPTS/SPTS) input over UDP (Unitcast/Multicast) (1000M port based Ethernet) | ||
IGMP Snooping: v2, v3 | |||
RF Output | Standard | ARIB STD-B31 | |
Bandwidth | 6M | ||
Constellation | DQPSK, QPSK, 16QAM, 64QAM | ||
Guard Interval | 1/32, 1/16, 1/8, 1/4. | ||
Transmission Mode | 2K, 4K, 8K | ||
FEC | 1/2, 2/3, 3/4, 5/6, 7/8 | ||
MER | ≥42dB | ||
Output | 30~1000MHz, 1KHz step | ||
RF output level | -30~ -10dbm (77~97 dbµV), 0.1db step | ||
IP Output | 4*IP output, one for one with the 4 IP input | ||
System | LCD/keyboard operating and Web-based NMS support | ||
Ethernet software upgrading | |||
General | Dimension | 482mm×300mm×44mm (W*D*H) | |
Weight | 2.3kg | ||
Temperature | 0~45°C(Operation); -20~80°C(Storage) | ||
Power | AC 110V±10%, 50/60Hz; or AC 220V±10%, 50/60Hz | ||
Consumption | 25W | ||

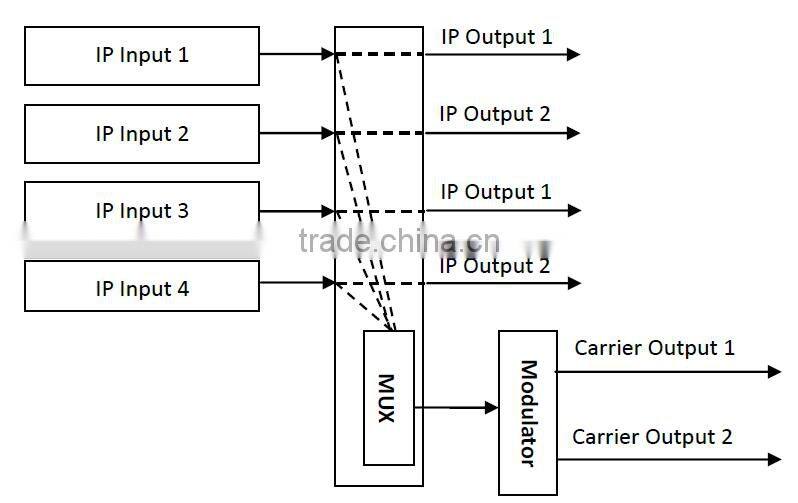

Principle Chart
