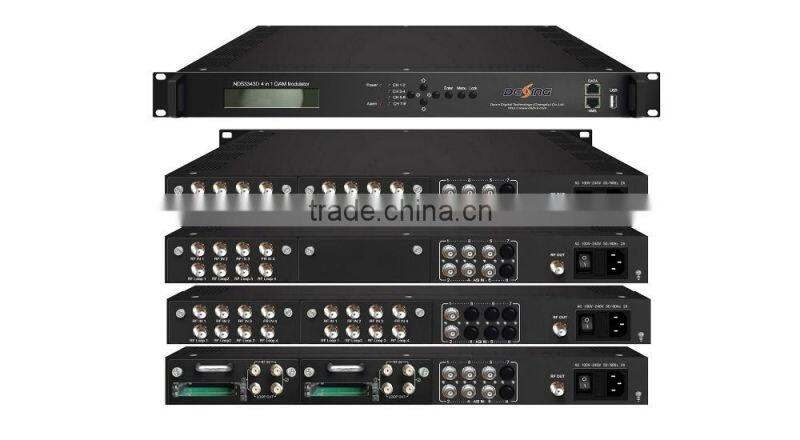

Dexin NDS3343D QAM modulator

Dexin NDS3343D QAM modulator

• Tuner, ASI and IP input optional
• 4 RF and 4 *MPTS output
• Max 4 simulcrypt CA
• 4 channels multiplexing + scrambling + QAM modulating

Outline

NDS3343D is a high performance and cost-effective mux-scrambling QAM modulator designed by Dexin. It has multiple input ports optional. After multiplexing, scrambling and QAM modulating process, then it gives 4 RF output. To meet customers’ various requirements, this device is also equipped with IP port to output 4 MPTS over UDP. Its pluggable structure design greatly facilitates the change of modules (demodulator) as needed.

The four CAMs/CIs (Optional) accompanied and BISS modules can descramble the programs input from 4 Tuner inputs. Its pluggable structure design greatly facilitates the change of modules (demodulator) as needed. NDS3343D is also characterized with high integrated level, high performance and low cost. This is very adaptable to newly generation CATV broadcasting system.

Key Features

l  Multiple Input ports optional:

    8 DVB-C/S/S2 FTA Tuner + 6 ASI input ports (Version 1)

   4 DVB-C/S/S2 FTA Tuner + 6 ASI + 2 IP input port (Version 2)

   8 DVB-C/S/S2 FTA Tuner + 2 ASI + 2 IP input port (Version 3)

   4 DVB-C/S/S2 Tuner with CAM+6 ASI input ports (Version 4)

l   Support 4 channels multiplexing+4 channels scrambling+4 channels QAM modulating

l   Fully support DVB-C (EN300 429) and ITU-T J.83A/B/C

l   Fully support DVB general scrambling system description ETR289, simulcrypt standard ETSI 101 197 and ETSI 103 197

l   Support accurate PCR adjusting

l   Support PSI/SI editing and inserting

l   Excellent RF output performance index, MER≥40db

l   Support 4*MPTS output over UDP

l   4 CAM decrypt multiple programs from 4 Tuner input (Optional)

l   Support BISS descrambling

l   Support LCD display and keyboard

l   Support Web management, Updates via web and USB

Specifications

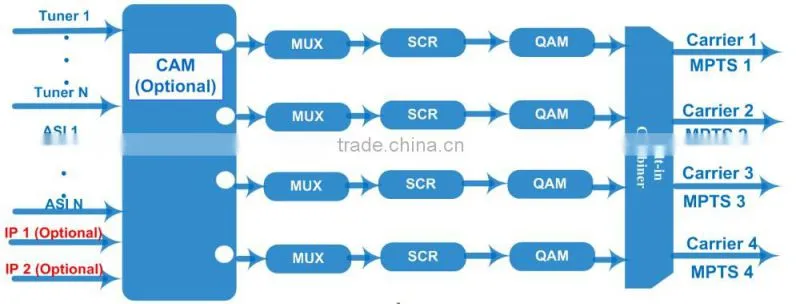

Working Principle
