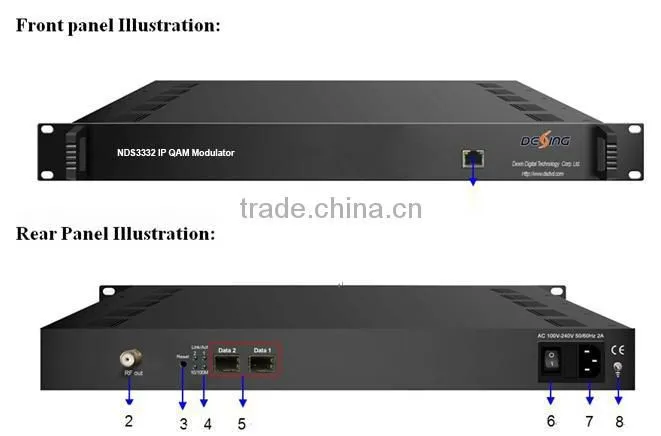

Dexin NDS3332 DVB-C modulator
1 |
NMS/CAS: network management port and CA data port |
2 |
RF output port |
3 |
Reset IP: Reset webmaster IP address, recover it to default IP address |
4 |
Link/Act Indicators |
5 |
Data Input/Output 1/2 (SFP) |
6 |
Power switch |
7 |
AC Power Socket |
8 |
Grounding |
Product Overview
NDS3332 IP Mux-Scrambling modulator is the latest generational Mux-scrambling-modulating all-in-one device developed by DEXIN. It has 32 multiplexing channels, 32 scrambling channels and 32 QAM (DVB-C) modulating channels, and supports maximum 1024 IP input through the GE port and 32 non-adjacent carriers (50MHz~960MHz) output through the RF output interface. The device is also characterized with high integrated level, high performance and low cost. This is very adaptable to newly generation CATV broadcasting system.
Key Features
2 GE input, SFP interface
Supports up to 1024 channels TS over UDP/RTP, unicast and multicast, IGMP v2v3
Max 840Mbps for each GE input
Supports accurate PCR adjusting
Supports CA PID filtering, remapping and PSI/SI editing
Supports up to 180 PIDS remapping per channel
Support DVB general scrambling system (ETR289), simulcrypt standards ETSI 101 197 and ETSI 103 197
Support 32 multiplexed or scrambled TS over UDP/RTP/RTSP output
32 non-adjacent QAM carriers output, compliant to DVB-C (EN 300 429) and ITU-T J.83 A/B
Supports RS (204,188) encoding
Support Web-based Network management

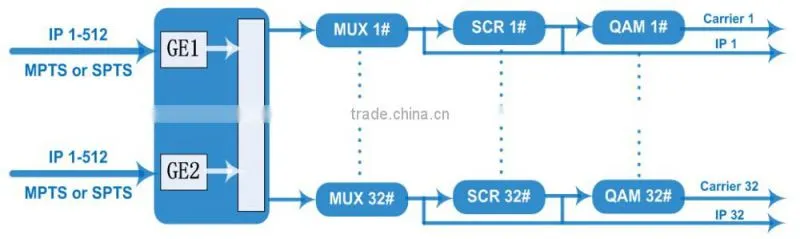

Inner Principle Chart
Carrier Setting Illustration
Technical Specifications
Input |
Input |
512×2 IP input, 2*100/1000M Ethernet Port (SFP) |
|
Transport Protocol |
TS over UDP/RTP, unicast and multicast, IGMP V2/V3 |
||
Transmission Rate |
Max 840Mbps for each GE input |
||
Mux |
Input Channel |
1024 |
|
Output Channel |
16 |
||
Max PIDs |
180 per channel |
||
Functions |
PID remapping(auto/manually optional) |
||
PCR accurate adjusting | |||
PSI/SI table automatically generating | |||
|
Scrambling Parameters |
Max simulscrypt CA |
4 |
|
Scramble Standard |
ETR289, ETSI 101 197, ETSI 103 197 |
||
Connection |
Local/remote connection |
||
|
Modulation Parameters |
QAM Channel |
32 non-adjacent carrier |
|
Modulation Standard |
EN300 429/ITU-T J.83A/B |
||
Symbol Rate |
5.0~7.0Msps, 1ksps stepping |
||
Constellation |
16, 32, 64 , 128, 256QAM |
||
FEC |
RS (204, 188) |
||
RF Output |
Interface |
1 F typed output port for 32 carriers, 75Ω |
|
RF Range |
50~960MHz, 1kHz stepping |
||
Output Level |
-20dBm~+10dBm(87~117dbµV), 0.1dB stepping |
||
MER |
≥ 40dB |
||
ACLR |
-60 dBc |
||
TS output |
32 IP output over UDP/RTP/RTSP, unicast/multicast, 2*100/1000M Ethernet Ports (SFP) |
||
System |
Network management software (NMS) supporting |
||
General |
Demission |
420mm×440mm×44.5mm (WxLxH) |
|
Weight |
3kg |
||
Temperature |
0~45℃(operation), -20~80℃(storage) |
||
Power Supply |
AC 100V±10%, 50/60Hz or AC 220V±10%, 50/60Hz |
||
Consumption |
15.4W |
||

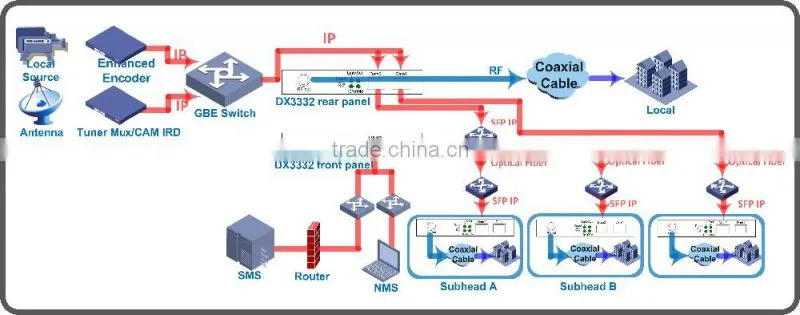

System Connection Sample (IP Based)
