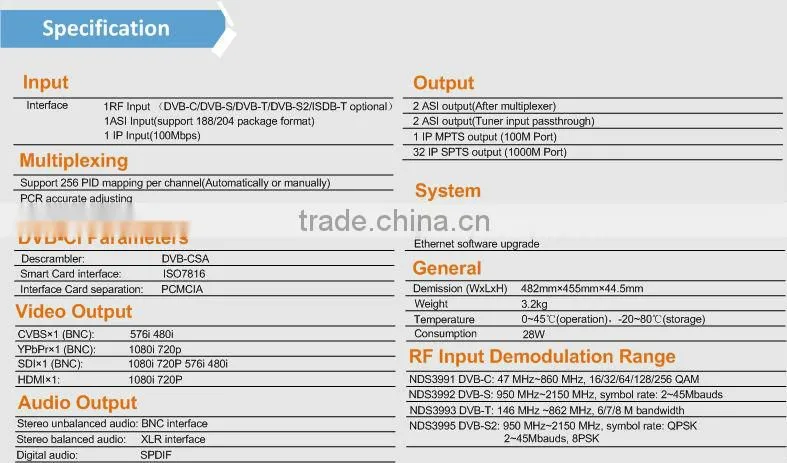

Specifications
dvb-s2 professional irdoptional for DVB-S/-S2/-T/-C, ISDB-T tuner inputs
VBI TELETEX , SUBTITILE support
NMS control

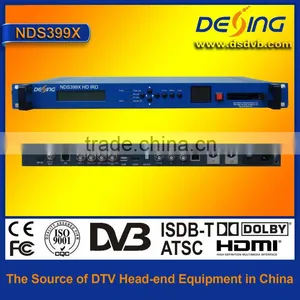

NDS399X1080p dvb-s2 professional ird
Overview

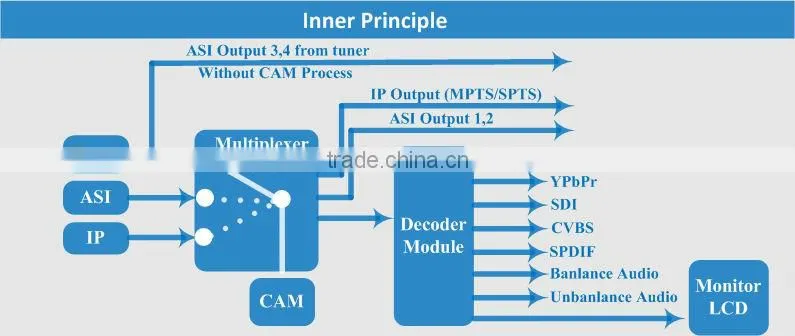

NDS399X Series HD IRD is Dexin new design IRD with video monitor LCD equipped on the front panel. It can receive TS signals from tuner (QPSK,8PSK S2,DVB-T,DVB-C optional),ASI and IP sources. After multiplexing and de-encryption with CAM module, then give it to ASI,IP (MPTS and SPTS) as well as various interface video/audio output. With the CAM slot support, it can support one channel (Tuner,ASI or IP) de-scrambling and give transparent signal output. User can operate the device by using front panel LCD or NMS software. Moreover, user can choose to have an optional ASI output interface which can pass through the encryption data source directly from tuner.
Key features
l Support DVB-C/DVB-S/DVB-T/DVB-S2/ ISDB-T RF Input
l Support 1 RF,1 ASI, and 1 IP(100M) input
l Support 2 channels ASI output and MPTS/32 SPTS IP output
l Support tuner passthrough to ASI output
l Multiple Video and Audio format output
l Support H.264 and MPEG2 decoding
l LCD display on the front panel
l Unicast and multicast support
l Support variable SI table editing
l Support web NMS and SNMP control
