Help CenterDigital IP Dvb-c Qam Modulator
Related Products
Specifications
DVB-C QAM modulator1U with 3 modules, each module support 512 Ip in 32 QAM out
Dual power supply
LCD/SNMP control
DX3232 digital IP dvb-c qam modulator
Outline
DX3232 IP Mux-Scrambling QAM modulation module is the latest generation mux-scrambling-modulating all-in-one device. It supports maximum 512 IP (MPTS/SPTS) input and 32 carriers output as well as 32 IP output after multiplexing and scrambling process (RF output for local transmission and IP output for remote sub-head end). It adopts the slot structure with one device supporting maximum 3 DX3232 modules and 96 channels mux-scrambling-modulation. With its powerful performance and low cost, DX3232 is especially adequate for the new generation CATV system.
Features
Compliant to DVB-C (EN 300 429) and ITU-T J.83 A/B/C
Support DVB general scrambling system(ETR289), simulcrypt standards ETSI 101 197 and ETSI 103 197
2 GE input, RJ45interface or SFP
Supports up to 512 channels TS over UDP, MPTS or SPTS
Supports unicast and multicast, supports IGMP v2v3
Max 840Mbps for every GE input
Supports MPEG2 re-multiplexing and MPTS/SPTS multiplexing
Supports accurate PCR adjusting
Supports PID filtering, remapping and PSI/SI editing
Supports up to 256 PIDS remapping per channel
Support multiplexed or scrambled TS over UDP output
32 QAM carriers output per module, adjustable carrier frequency output within 768 MHz supporting
Supports RS(204,188) encoding
Excellent RF performance, MER≥40db
Support NMS/SNMP Management
Modular design,1U chassis support 3 modules , 4U chassis support 12 modules
Carrier Setting Illustration

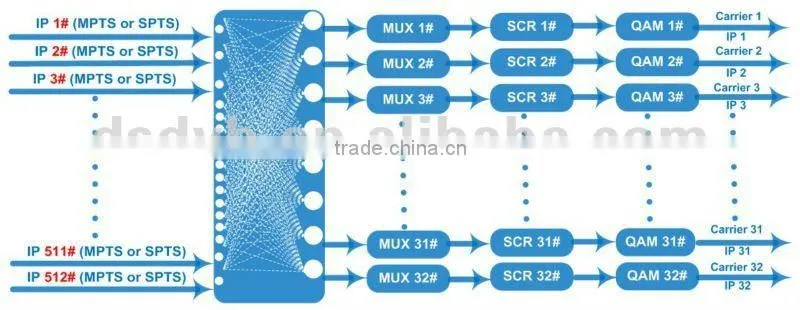

Principle Chart

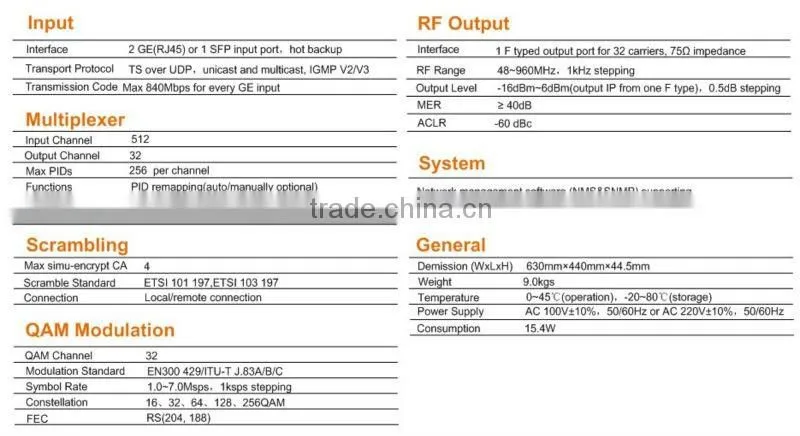

Specifications
