DVB-C Modulator ip Qam Modulator With Mux and Scrambler

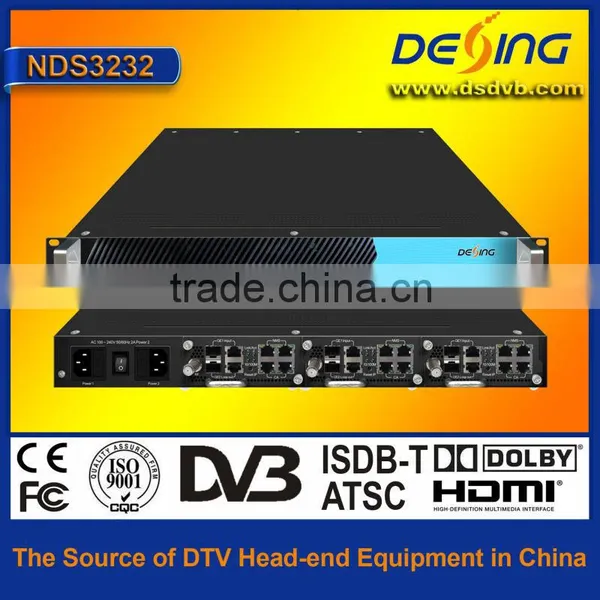

DVB-C Modulator ip Qam Modulator With Mux and Scrambler photo-1
US$ 1 - 2,000 MOQ: 1 Set
Key Specifications
Get Latest Price
Place of Origin:
Sichuan, China
Brand Name:
DEXIN
Model Number:
DX3232
Payment & Shipping
Payment Methods:
Port of Shipment:
chengdu china
Delivery Detail:
Delivery time depends on order quantity.
Place of Origin Sichuan, China
Brand Name DEXIN
Model Number DX3232



DX3232 512 ip to 32  ip qam modulator with mux  and scrambler



Outline



DX3232 IP Mux-Scrambling QAM modulation module is the latest generation mux-scrambling-modulating all-in-one device. A single module supports maximum 512 IP (MPTS/SPTS) input and 24 carriers output as well as 24 IP output after multiplexing and scrambling process (RF output for local transmission and IP output for remote sub-head end). It adopts the slot structure with one device supporting maximum 3 DX3232 modules and 72 channels mux-scrambling-modulation. Each module can work standalone.



With its powerful performance and low cost, DX3232 is especially adequate for the new generation CATV system.



Features



  •   Compliant to DVB-C (EN 300 429) and ITU-T J.83 A

  •   Support DVB general scrambling system (ETR289), simulcrypt standards ETSI 101 197 and ETSI 103 197

  •   2 GE input per module, RJ45 interface or SFP

  •   Supports up to 512 channels IP input over UDP, RTP (MPTS/SPTS)

  •   Supports unicast and multicast, supports IGMP v2v3

  •   Max 840Mbps effective bit rate for every GE input

  •   Supports re-multiplexing and MPTS/SPTS multiplexing

  •   Supports up to 256 PIDs remapping per channel

  •   24 QAM carriers output per module, adjustable frequency output within 768 MHz

  •   Support 24 IP (MPTS) output over UDP, RTP/RTSP per module

  •   Supports RS (204,188) encoding

  •   Excellent RF performance, MER≥40db

  •   Support Web-based NMS Management

  •   Modular design, 1U chassis support up to 3 modules

  •   Redundancy Power Supply





Carrier Setting Illustration



 DVB-C modulator ip qam modulator with mux and scrambler

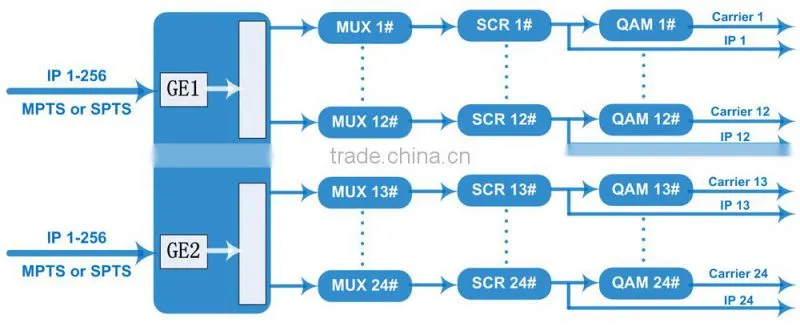

Principle Chart

 DVB-C modulator ip qam modulator with mux and scrambler

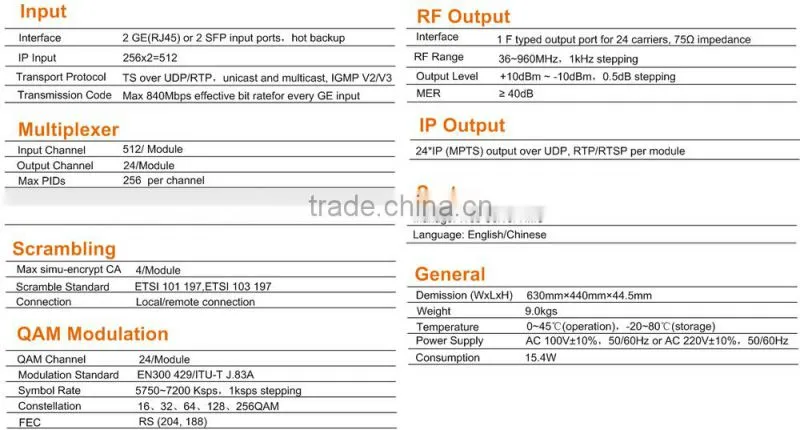

Specifications



DVB-C modulator ip qam modulator with mux and scrambler
