Help CenterHot Sell HDMI to 3G-SDI Converter
Related Products
Specifications
HDMI to 3G-SDI converternverting HDMI signal to SDI signal
2.1 channel HDMI input, 4 channels 3G SDI out

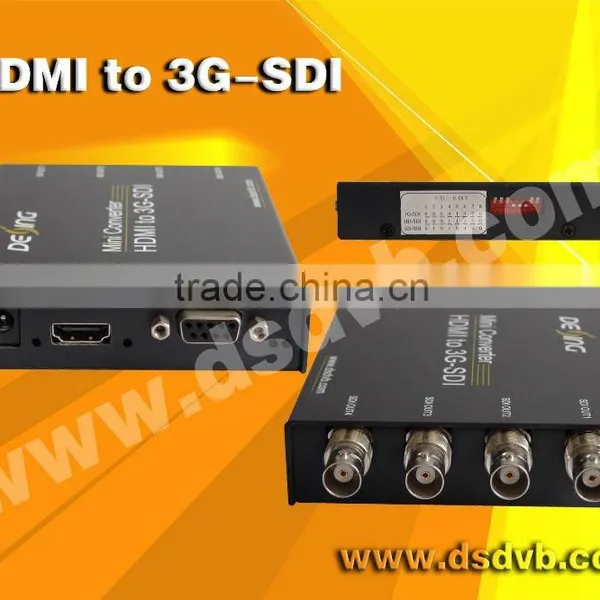

HDMI to 3G-SDI converter
Input port: HDMI
Output port: 4-channel SDI
Outline: HDMI to 3G-SDI converter can convert HDMI signals into SD, HD or 3G SDI signal.
With one channel HDMI inputs, four channels 3G SDI output (used in mirror mode is used to display video). Can be long-distance transmission after converting, and directly connected to the video switcher or digital video recorders. The device is available to all professional high-definition audio / video equipment.
Features:
l Support HDMI 1.3, HDCP 1.3 and DVI 1.0 Standard
l Support PAL or NTSC format's SD or HD, 3G audio and video SDI signal output
l Provide the highest resolution up to 1920x 1080P 60Hz 12-bit color depth
l Supports lossless compressed digital audio (Dolby True HD, Dolby Digital Plus and DTS-HD Master Audio)
l With 10-bit resolution, supports higher precision and dynamic screen
l Support output SD-SDI - SMPTE 259M-C (270Mbps)
HD-SDI-SMPTE 292M (1.485, 1.485 / 1.001Gbps)
3G-SDI-SMPTE 424M/425M (2.97/3.0Gbps)
l Support audio conversion (embedded audio function)
l Advanced features to reduce noise and increase the detail
l With a serial RS-232 control interface
l Ultra-Low Power
Specifications
l The output video signal bandwidth 4 x 3.0Gbps
l The highest input resolution 1920 x 1080P 60Hz 12-bit color depth
l The highest output resolution Quad 3G-SDI 1080p
l Supports 480i, 480p, 576i, 576p, 720p, 1080i, 1080p and other common formats
l HDMI 1.3 and compliant HDMI 1.2 standards and equipment
l HDMI port A-type 19-pin female header
l SD/HD/3G SDI port BNC female
l Control Ports Serial RS-232
l Power Supply 12V DC
l Power loss 4W (max)
l Size 116 (L) X 93 (W) X 24 (H)
