Specifications
mini encoder modulator with USB and web-server managementMPEG2 & MPEG4 HD/SD encoding
easy setup
AV distribution
mini encoder modulator with USB and web-server management
----HOME VERSION
A device that allows audio and video signal input in TV distributions and video recorded and playback through a USB port, with applications in home entertainment, Digital Signage for hotels, shops, restaurants etc...
High Lights
n HDMI/YPbPr/AV input for encoding
n MPEG2 and MPEG4 AVC/H264 HD/SD video encoding,
n MPEG1 Layer II, MPEG2-AAC, MPEG4-AAC audio encoding, DD AC3 (2.0) optional
n DD AC3 passthrough
n CC(Closed Caption) optional
n Record encoded TS and playback TS files (*.ts) through USB port
n DVB-C, DVB-T RF output optional
n Transmission mode (FFT): 2K, 8K (applied in DVB-T modulation)

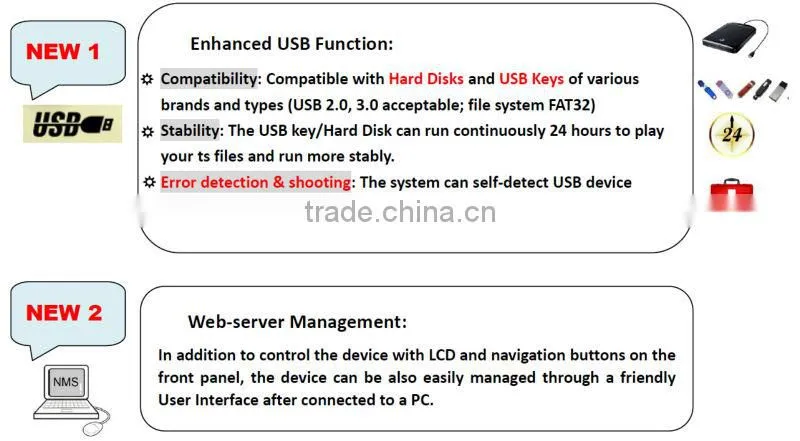

n Enhanced USB function: more stable and compatible with Hard Disks and USB Keys of various brand
n USB device error self-detection and removal, ensure USB device running uninterrupted
n Volume adjustable

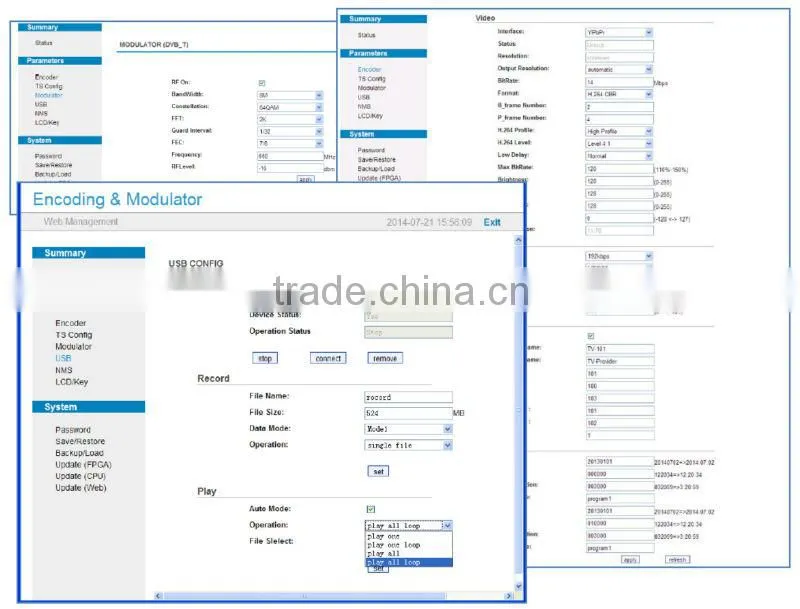

n Easy operation with LCD + control buttons, and Web-server management

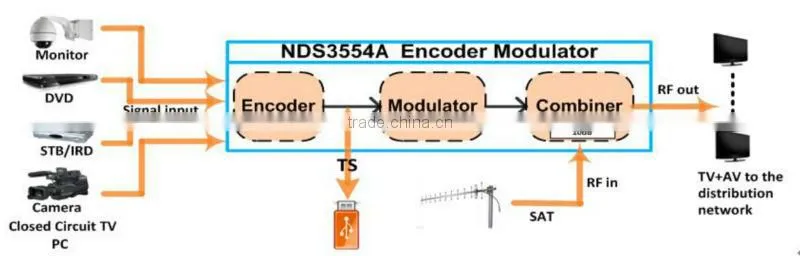

Principle Chart

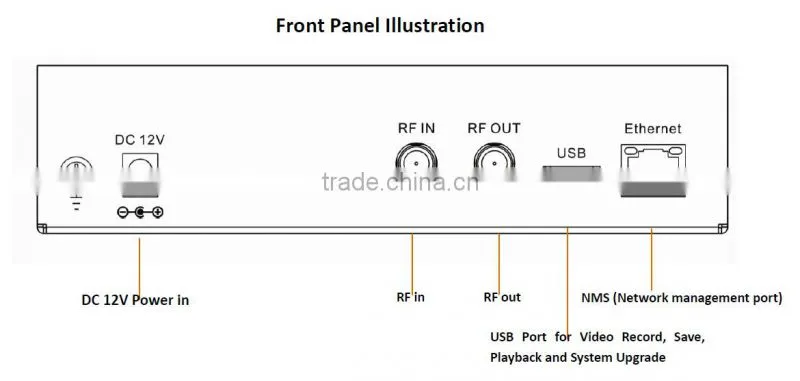

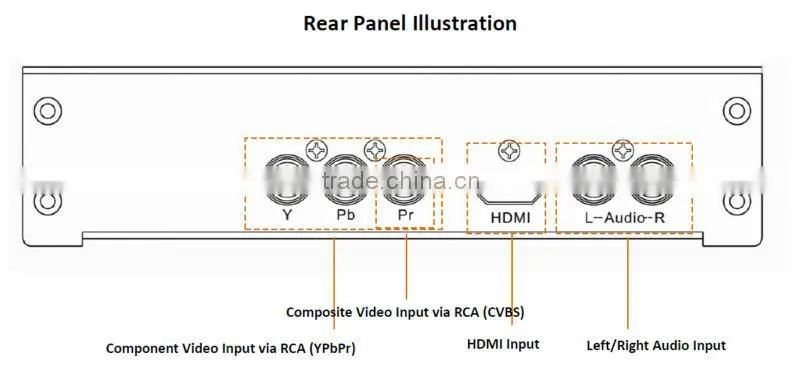

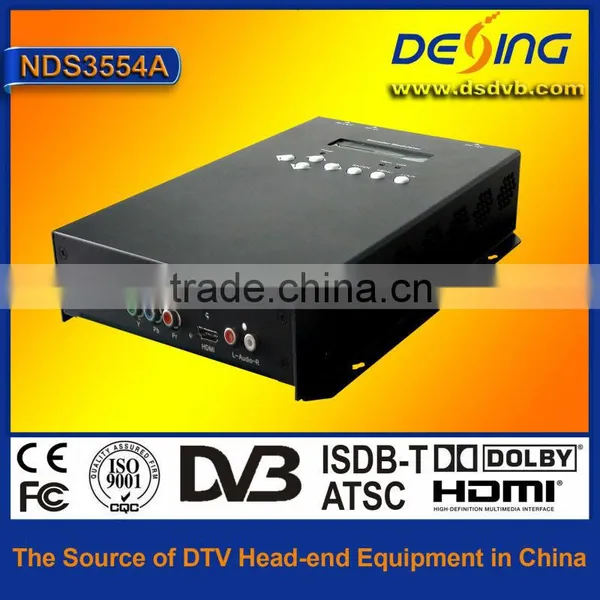

Appearance
Technical Specifications
Encoding Section | |||
HDMI |
Video |
Encoding |
MPEG-2, MPEG-4 AVC/H.264 |
Interface |
HDMI*1 |
||
Resolution |
1920*1080_60P,1920*1080_50P à (for MPEG-4 AVC/H.264 only) 1920*1080_60i, 1920*1080_50i; 1280*720_60p, 1280*720_50P |
||
Bit rate |
0.500~19.500 Mbps |
||
Audio |
Encoding |
MPEG1 Layer II, MPEG2-AAC, MPEG4-AAC, Dolby AC3(optional) |
|
|
AC3 Passthrough |
||
Interface |
HDMI |
||
Sample rate |
48KHz |
||
Bit rate |
64, 96,128, 192, 256, 320, 384kbps |
||
|
YPbPr/ CVBS
|
Video |
Encoding |
MPEG-2, MPEG-4 AVC/H.264 |
Interface |
CVBS *1, YPbPr*1 (RCA) |
||
Resolution |
CVBS: 720x576_50i (PAL); 720x480_60i (NTSC) YPbPr: 1920*1080_60i, 1920*1080_50i; 1280*720_60p, 1280*720_50P |
||
Bit rate |
0.500~19.500 Mbps |
||
Audio |
Encoding |
MPEG1 Layer II, MPEG2-AAC, MPEG4-AAC, DolbyAC3(optional) |
|
|
AC3 Passthrough |
||
Interface |
1 Stereo /2 mono |
||
Sample rate |
48KHz |
||
Bit rate |
64, 96,128, 192, 256, 320, 384kbps |
||
DVB-T Modulator Section | ||||
Standard |
DVB-T COFDM |
|||
Bandwidth |
6M, 7M, 8M |
|||
Constellation |
QPSK, 16QAM, 64QAM, |
|||
Code rate |
1/2, 2/3, 3/4, 5/6, 7/8. |
|||
Guard Interval |
1/32, 1/16, 1/8, 1/4 |
|||
Transmission Mode: |
2K, 8K |
|||
MER |
≥42dB |
|||
RF frequency |
30~960MHz, 1KHz step |
|||
RF output level |
-16~ -36 dBm (71~91 dbµV), 0.1db step |
|||
DVB-C Modulator Section (Option) | ||||
Standard |
J.83A (DVB-C) |
J.83B |
J.83C |
|
Constellation |
16/32/64/128 /256 QAM |
64/ 256 QAM |
64/ 256 QAM |
|
Bandwidth |
8M |
6M |
6M |
|
MER |
≥43dB |
|||
RF frequency |
30~960MHz, 1KHz step |
|||
RF output level |
-16~ -36dbm(71~91 dbµV), 0.1db step |
|||
Symbol rate |
5000-9000 Ksps |
|||
System | ||||
Management |
Local control: LCD + control buttons |
|||
Language |
English |
|||
LCN Insertion |
yes |
|||
General | ||||
Power supply |
DC 12V |
|||
Dimensions |
200*237*49mm |
|||
Weight |
< 1kg |
|||
Operation temperature |
0~45°C |
|||
Technical Compare
Main Features |
DEXIN NDS3554/3554A/NDS3556/NDS3558 |
Competing Products |
Encode |
lMPEG2 HD/SD; MPEG4 HD/SD |
lMPEG2 SD |
Record TS to USB memory |
lYes |
lNo |
*.ts files play-mode |
lBoth Multi/Single files loop lSupport HD&SD video play |
lSingle file loop lSupport only SD video play |
TS Creator.exe |
lHD video to HD video transform lNull Packet Filter, effect bit rate up to 90% lSupport output video size, rate, and format control |
lHD video to SD video downscale lNo Null Packet Filter, effect bit rate only around 50% |
Single video length |
l2-3 Hours HD/SD |
l40 Minutes SD |
Management |
lLocal: LCD + control buttons lRemote: web-server control (3554A/3558) |
lLocal: LCD + control buttons |
