Home > Electrical & Electronics > Telecommunication & Broadcasting > Radio & TV Broadcasting > SDI in 4-channel H.264 hd Encoder

SDI in 4-channel H.264 hd Encoder

Name: SDI in 4-channel H.264 hd Encoder
Brand: DEXIN
SKU: 132547265
Availability: InStock

SDI in 4-channel H.264 hd Encoder thumbnail-1

SDI in 4-channel H.264 hd Encoder photo-1

US$ 1 - 2,000 MOQ: 1 Set

Key Specifications

Get Latest Price

Place of Origin:

Sichuan, China

Brand Name:

DEXIN

Model Number:

NDS3214A-D

Contact Supplier Request Quote Chat Now

Dexin Digital Technology Corp. Ltd. (Chengdu)

Payment & Shipping

Payment Methods:

Port of Shipment:

Chengdu

Delivery Detail:

Delivery time depends on order quantity.

Product Details
Company Profile
Contact Us

Place of Origin Sichuan, China

Brand Name DEXIN

Model Number NDS3214A-D

Specifications

4-channel h.264 hd encoder
IP out ,MPTS and SPTS sopport
4SDI in upport MPEG1 Layer 2, HE-AAC (V2), LC-AAC audio encoding

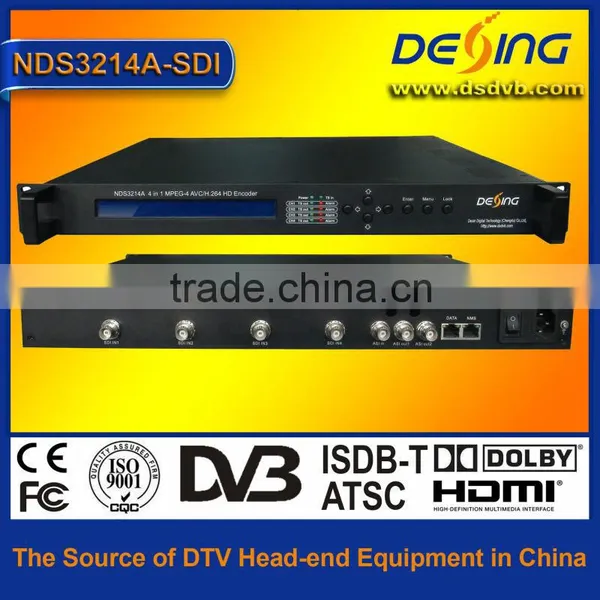

NDS3214A SDI in 1080P HD 4-channel h.264 hd encoder

Outline

The DEXIN NDS3214A 4-channel h.264 hd encoder is a professional HD audio & video encoding and multiplexing device with powerful functionality. It has 4 channels HDMI (or SDI) input interfaces, supporting MPEG4 AVC/H.264 High Profile code format. This device can simultaneously encode 4 channel HD programs; moreover, it has an ASI input and can multiplex the input TS with the 4 encoded program to generate ASI and IP output. Also, the PSI/SI information can be inserted into MPTS output. In conclusion, its high integrated and cost effective design makes the device widely used in varieties of digital distribution systems.

Features

l Support AVC/H.264 High Profile Level 4.0 video encoding, Advanced video pretreatment algorithm

l Support MPEG1 Layer 2, HE-AAC (V2), LC-AAC audio encoding

l 4 channel HDMI (or SDI) inputs and 1 ASI input with Mux

l Support PSI/SI editing and inserting

l Support VBR or VBR video bitrate mode

l Support 720P, 1080I, 1080P HD video format

l Support ASI output MPTS or 4 SPTS

l Support IP output (UDP) MPTS and 4 channel SPTS, unicast/multicast

l Support IP null packet filter

l Support PID filter and transparent transport.

l Real- time effective output bit-rate monitoring

l Support update device through NMS port

l Support LCD / keyboard operating, and network management (SNMP)

Specifications

Input	4x SDI input	NDS3214A-SDI
	4x HDMI input	NDS3214A-HDMI
	1×ASI input, BNC interface
Video	Resolution	19201080_59.94P, 19201080_50P
		1920×1080_59.94i, 1920×1080_50i
		1280×720_59.94p, 1280×720_50p
		720x576_50i, 720x480_59.94i
	Encoding	MPEG4 AVC/H.264 High Profile Level 4.0
	Bit-rate	0.8Mbps~19Mbps (each channel)
	Rate Control	CBR, VBR
	GOP Structure	IBBP
	Advanced Pretreatment	De-interlacing, noise reduction, sharpening
Audio	Encoding	MPEG-1 Layer 2, HE-AAC(V2), LC-AAC
	Sampling rate	48KHz
	Resolution	24-bit
	Bit-rate	64Kb/s~384Kb/s each channel
Multiplexing	1×ASI input multiplexed and 4 encoding channel SPTS
output	2×ASI outputs, BNC interface
output	MPTS and 4 SPTS over UDP,10/100Base-T Ethernet interface, support unicast / multicast
System	LCD/keyboard operating, net manager (SNMP) Chinese-English control interface
System	Ethernet software upgrade
General	Dimensions (W×D×H)	440mm×410mm×44.5mm
	Approx weight	4Kg
	Temperature range	0~45°C(work), -20~80°C(Storage)
	Power Requirements	AC 110V±10%, 50/60Hz; AC 220V±10%, 50/60Hz
	Power consumption	25W
