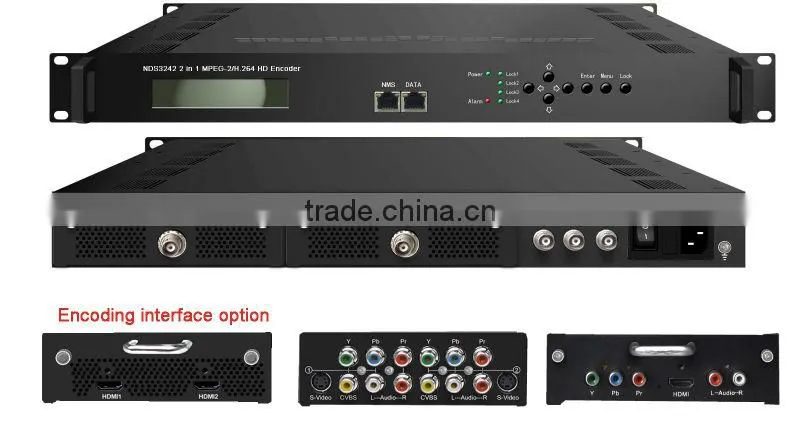

NDS3242 2 in 1 MPEG2/h.264 HD low latency rear time encoder
Product Overview

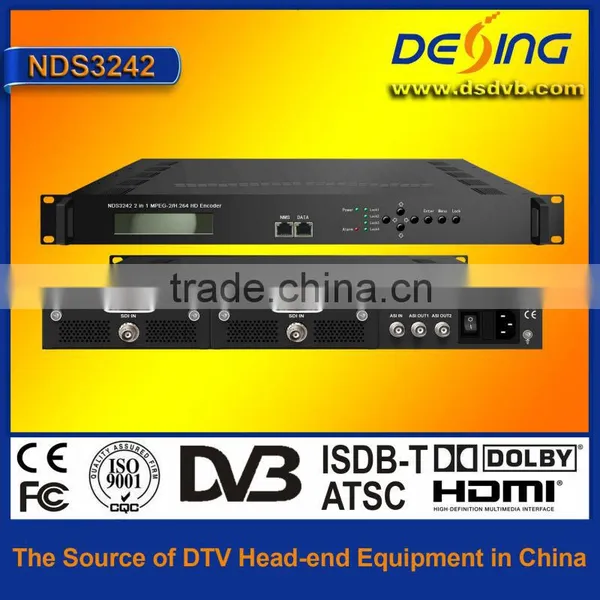

NDS3242 is DEXIN’s modular HD Encoder which has 2 channels of HDMI (SDI/YPbPr+HDMI+ CVBS/YPbPr+S-Video+CVBS Optional) input for MPEG2 or H.264 encoding. It is also equipped with 1 channel ASI input for re-mux. The 2 encoded programs will output through 2 ASI or IP ports in MPTS or 4 SPTS.
It adopts inner drawer-type structural design which greatly facilitates the change of encoding modules as needed.
Key Features
n MPEG2 & MPEG4 AVC/H.264 HD video encoding
n MPEG1 Audio Layer 2, MPEG2-AAC, MPEG4-AAC and Dolby Digital AC3 audio encoding
n HDMI/SDI/YPbPr+HDMI+CVBS/YPbPr+S-Video+CVBS signals in optional, pluggable and changeable encoding modules
n Support CBR/VBR rate control mode
n Support Low Latency function
n Support PSI/SI editing and inserting
n Supports IP null packet filter
n ASI output, IP (MPTS & 4 SPTS) output over UDP, RTP
n LCD display, Remote control and firmware
n Web-based NMS management; Updates via web
Technical Specifications
Encoding Section
Video
Encoding |
MPEG2 & MPEG4 AVC/H.264 |
Input |
HDMI*2 (SDI*2/(YPbPr+HDMI+CVBS)*2/(YPbPr+S-Video+CVBS)*4 Optional) |
Resolution |
1920*1080_60P, 1920*1080_50P, (-for MPEG4 AVC/H.264 only, except YPbPr+S-Video+CVBS) 1920*1080_60i, 1920*1080_50i,(except YPbPr+S-Video+CVBS) 1280*720_60p, 1280*720_50P(except YPbPr+S-Video+CVBS) 720*480_60i, 720*576_50i |
Bit Rate |
1~19.5Mbps |
Rate Control Mode |
CBR/VBR |
Audio
encoding |
MPEG1 Layer II, MPEG2-AAC, MPEG4-AAC, Dolby Digital AC3 |
Sample rate |
48KHz |
Bit rate |
64kbps, 96kbps,128kbps, 192kbps, 256kbps, 320kbps |
System
Local interface |
LCD + control buttons |
Remote management |
Web NMS |
output |
2ASI out (BNC type) IP (1 MPTS & 4 SPTS) over UDP, RTP (RJ45, 100M) |
NMS interface |
RJ45, 100M |
Language |
English |
General
Power |
AC 100V~240V |
|
Dimensions |
482*300*44mm |
|
Weight |
3.5 kgs |
|
Operation temperature |
0~45°C |
|
