Help CenterHoting Selling Three-way Ball Valve With Direct Mounting Pad
Related Products
-
Wholesale Price 3-way(L/T-Port)1000Psi Ball Valve Made in ChinaUS$ 1.2 - 13MOQ: 50 Pieces -
Hex Nipple 1/2" Male x 1/2" Male 304 Stainless Steel Threaded Pipe FittingUS$ 0.5 - 30MOQ: 500 Pieces
-
High Quality Industrial 3 Way 304 Ball ValveUS$ 2.5 - 130.5MOQ: 50 Pieces
-
High Quality Three-way 1000psi Ball ValveUS$ 1.2 - 13MOQ: 50 Pieces
-
Standard 1-piece Ball Valve With HandleUS$ 1.2 - 10MOQ: 500 Pieces
| Three-way ball valve with direct mounting pad product description: |
| 1.SIZE: DN15-DN50 (1/4 to 2 inch) |
| 2.Material: CF8,CF8M,CF3M,WCB |
| 3.Working Pressure: 1000WOG/1000PSI/PN63 |
| 4.Connect end: Thread |
| 5.Thread ends types: ANSI B1.20.1(NPT) BS7/1(DIN2999)ISO7/1(ISO228) |
| 6.Seat: PTFE/RPTFE |
| 7.Valve Body & Cap: Investment Casing |
| 8.Test:100% tested under water and gas |
| 9.ISO and CE Certification |
| dia: water,oil,gas |
| 11. Applicable temperature: -40C~180C |
| 12.Locking device :Optional |
| 13.Blot-out proof stem |
| 14.All size are full port |
| 15.Testing according to API-598 |
| 16.Anti-static debices for ball-stem-body |

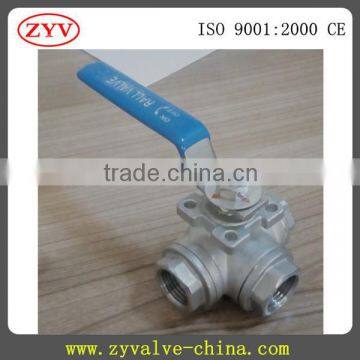

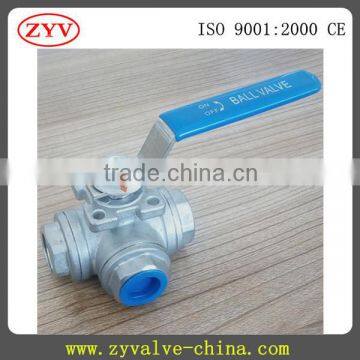

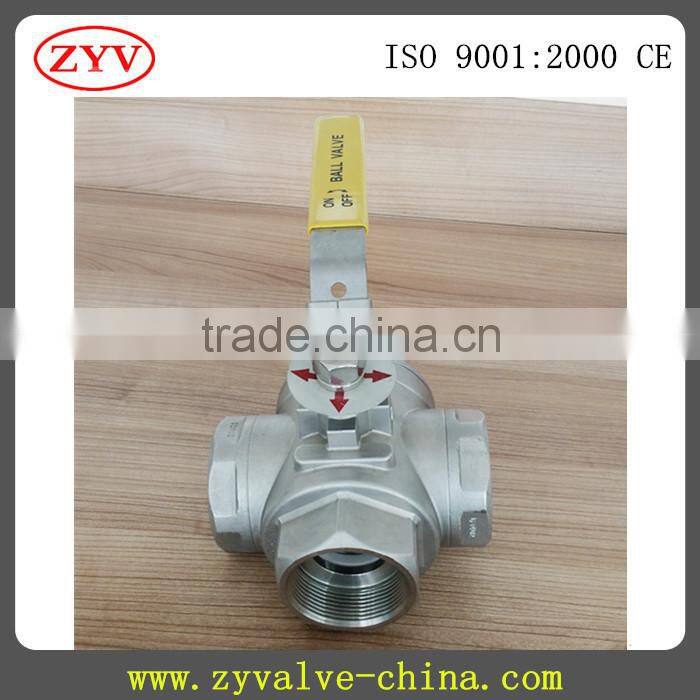

3-way screw ends 1000Psi stainless steel ball valve Main view picture:

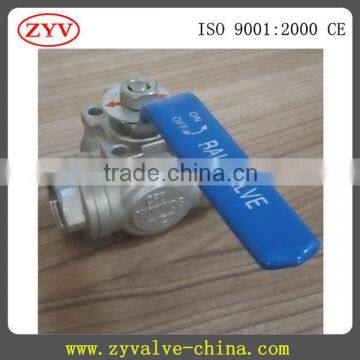

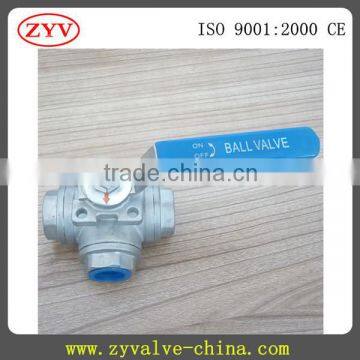

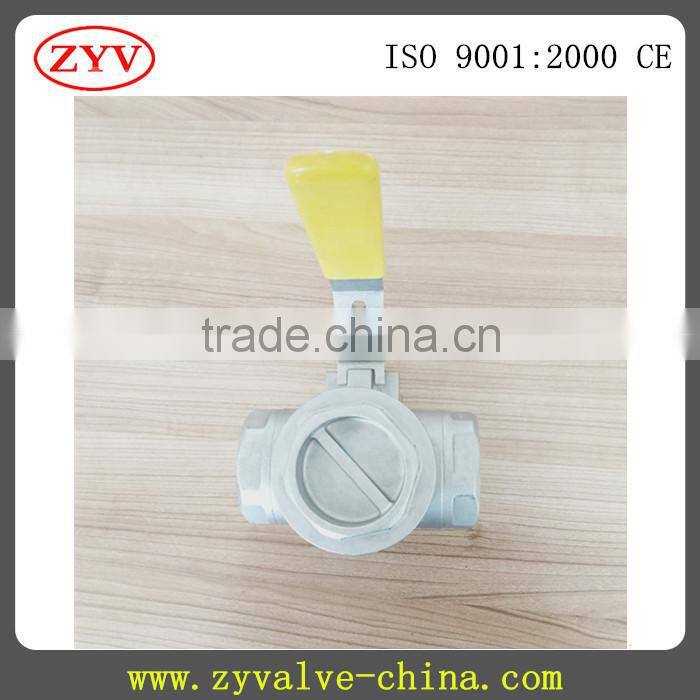

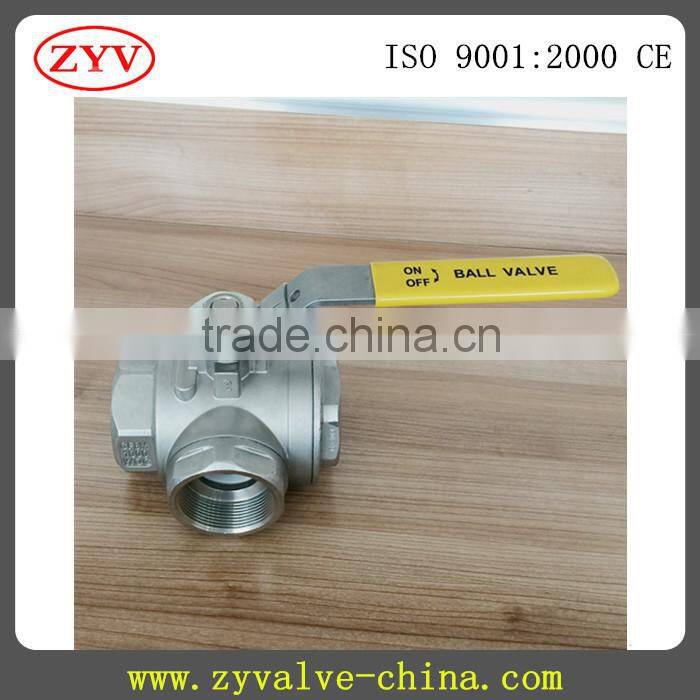

3-way screw ends 1000WOG stainless steel ball valve lateral view picture:

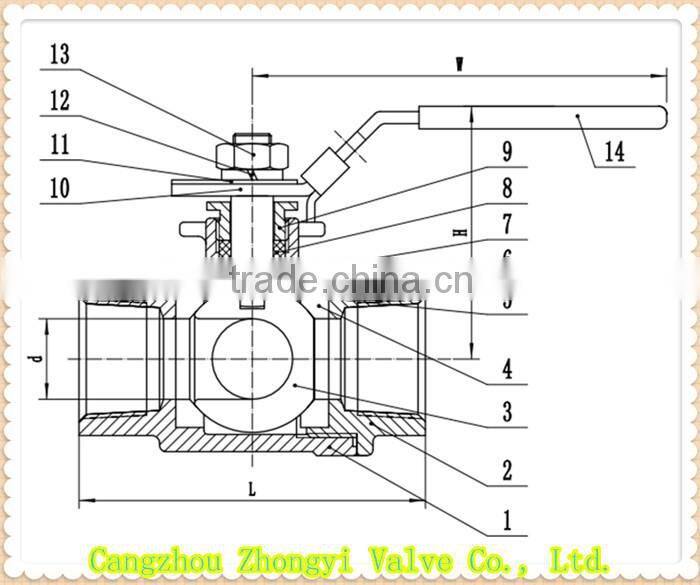

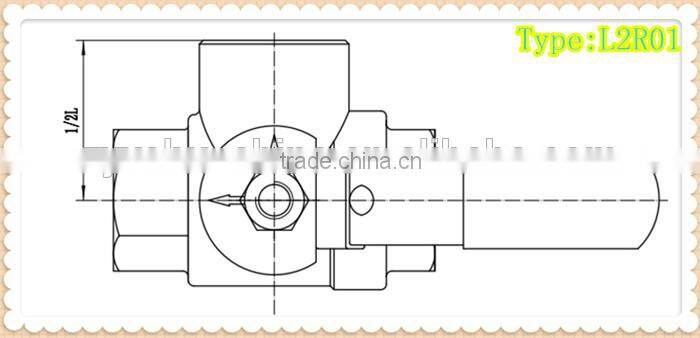

3-way screw ends 1000WOG stainless steel ball valve Assembly drawing:
3-way screw ends 1000WOG stainless steel ball valve material list:

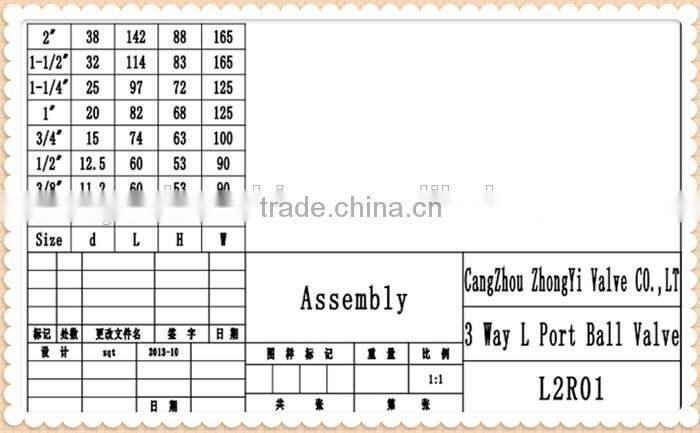

3-way screw ends 1000WOG stainless steel ball valve Dimension table:
Ball Valve Sample Services: Provides a free samples and customer bear courier charges.
Ball Valve Customized services: We can be processed in accordance with the customer's drawings.
We can be processed in accordance with the sample provided by the customer.
Ball Valve Product service: Provide service within one year quality warranty.
We are professional manufacturers, If you want to check out our other stainless steel ball valves, please click here.
We have other Ball Valve in the following:
3-way screw ends 1000WOG stainless steel ball valve workshop:
3-way screw ends 1000WOG stainless steel ball valve Corner assembly:
3-way screw ends 1000WOG stainless steel ball valve Packaging and shipping:
3-way screw ends 1000WOG stainless steel ball valve FAQ:
Grip color can be according to customer requirements.
Brand name can be printed according to customer requirements on the handle.
Lettering on the valve body in accordance with customer needs.
Payment terms:T/T or L/C
Port:Tianjin port
Min Qty:50 Set
inquiry price:FOB for Tianjin Port
Why start business with us:
We keep high quality ball valve!
We offer ball valve competetive price!
We are good in after-sales service!
