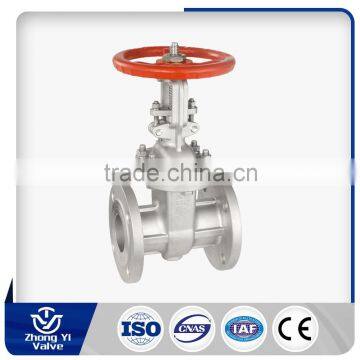

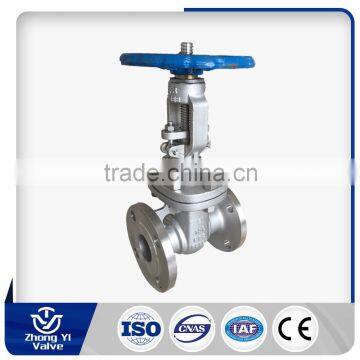

2016 Good Quality Stainless Steel Fighting Gate Valve Stainless Steel

1.SIZE

1/2 to 12 inch

2.Material

CF8/304,CF8M/316,CF3/304L,CF3M/316L,WCB

3.Working pressure

150LB/300LB

4.

Investment casting body

5.

Screwed Bonnet,wedge disc

6.

Integral Seat

7.Connection type

inside screws,threaded ends

8.Inspection standard:

API598

9.Suitable media

water, oil, air and some corrosive liquids

10.Face to face

ASME B16.10

13.Design standard

ASME B16.34

15.Flange standard

ASME B16.5

Item

Part

Material

1

Body

ASTM A351 CF8M

ASTM A351 CF8

ASTM A216 WCB

2

Cap

ASTM A351 CF8M

ASTM A351 CF8

ASTM A216 WCB

3

Ball

ASTM A351 CF8M

ASTM A351 CF8

ASTM A216 WCB

4

Seat

PTFE,RTFE

PTFE,RTFE

PTFE,RTFE

5

Stem

ANSI 316

ANSI 304

ANSI 304

6

Thrust washer

PTFE

PTFE

PTFE

7

Packing

PTFE

PTFE

PTFE

8

Gland nut

ANSI 304

ANSI 304

ANSI 304

9

Handle

ANSI 430

ANSI 430

ANSI 430

10

Washer

ANSI 301

ANSI 301

ANSI 301

11

Nut

ANSI 304

ANSI 304

ANSI 304

1. Q: Do you have your own factory?

A: Yes, we have. Our factory located in cangzhou city, Hebei province.

2. Q: How can I visit your factory? A: Before you take off from your country, please let us know. We will show you the way,or arrange time to pick you up if possible.

3. Q: Do you provide free sample?

A: Usually we do not offer free sample

4. Q: Could you print our company LOGO on the nameplate and package?

A: Yes, we can do that.

5. Q: Do you accept custom design on size?

A: Yes, if the size is reasonable.

6. Q: How do you overcome the anti-dumping and countervailing duties?

A: We can use original Taiwan ball valve, and provide Certificate of Origin of Taiwan.

7. Q: How can I be your agent in my country?

A: Please leave feedback. It's better for us to talk about details by email
