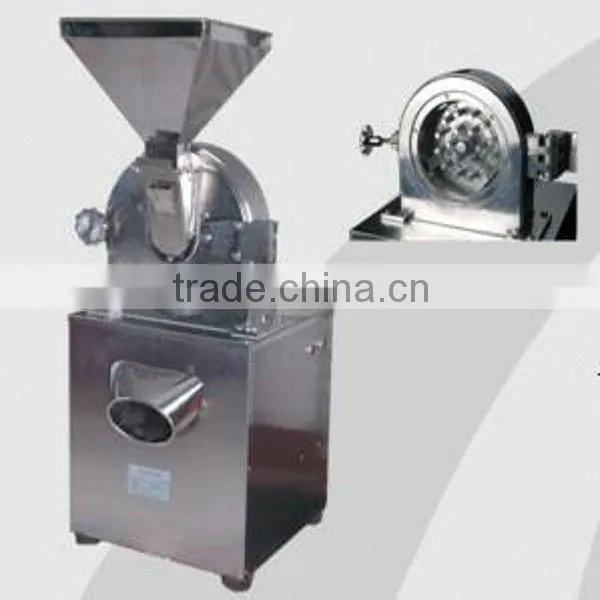

30B/40B High Effect Grinding Machine
1. Applications
This machine has wide application and it is wide used for pharmaceutical industry, chemical industry, pesticide industry, foodstuff industry and so on.
2. The principle of working

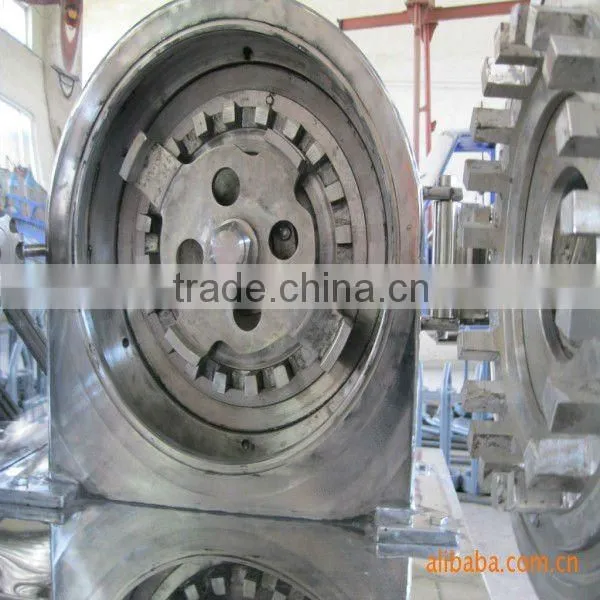

This machine uses the relative motion between movable and fixed teeth disc, the raw materials to be crushed undertakes the comprehensive impacted by teeth, friction, impacted between raw materials, finally the raw material are crushed. Its features are simple and solid in structure, stable in operation, high crushed raw material can be discharged through the grinding chamber. Moreover, this machine is made from stainless steel. Its inner wall is processed finely. So it is smooth and level. It makes the products of medicines, foodstuff and chemicals and so on. It is made meet the requirement of “GMP”.
3. Technical parameters
Item |
Unit |
20B |
30B |
40B |
60B |
Productive capacity |
Kg/h |
60-150 |
100-300 |
160-800 |
500-1500 |
Speed of main shaft |
R/min |
4500 |
3800 |
3400 |
2800 |
feeding granule size |
mm |
6 |
10 |
12 |
15 |
fitness of pulverization |
mesh |
60-150 |
60-120 |
60-120 |
60-120 |
Motor power |
kw |
4 |
5.5 |
11 |
15 |
Fan power |
kw |
1.5 |
1.5 |
1.5 |
2.2 |
Weight |
kg |
250 |
320 |
550 |
680 |
