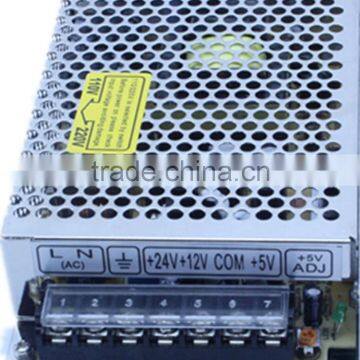

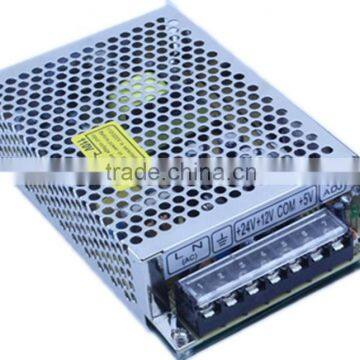

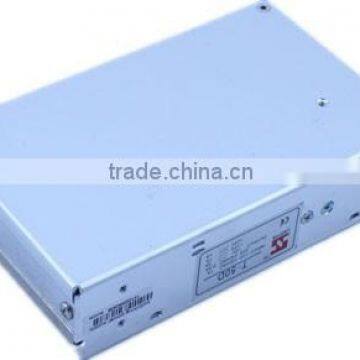

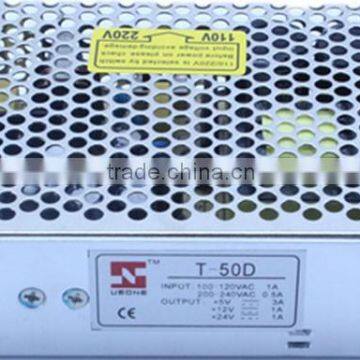

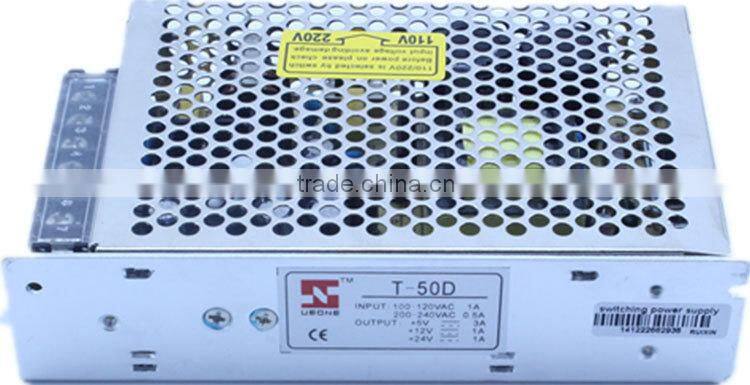

Promotion 5V12V24V Triple output 50w switching power supply T-50D
Welcome,my friend! Glad to introduce 50w Triple output 5v 12v 24v switching power supply CE factory price T-50D. If you have any questions, please don't hesitate to ask me.we are factory
Notice:
1.We do have enough ability to produce your customized order
2. Samples are available
3.High quality and competive price .
4.If need samples, pls click this link of our aliexpress shop, much more discount on our store. /store/1213562
5.2 years warrenty ,buy with confidence
6:Related products:10w--1500w
1. AC input range 100-120vac or 200-240vac 50/60HZ by switch choice
2. Protections: Short circuit / Overload / Over voltage
3. 100% full load burn-in test
4. Low cost, high reliability
5. 24 months warranty
6. high efficiency
Model |
T-50A |
T-50B |
T-50C |
T-50D |
||||||||
CH1 |
CH2 |
CH3 |
CH1 |
CH2 |
CH3 |
CH1 |
CH2 |
CH3 |
CH1 |
CH2 |
CH3 |
|
DC output voltage |
5V |
12V |
-5V |
5V |
12V |
-12V |
5V |
15V |
-15V |
5V |
12V |
24V |
Output voltage range(Note:2) |
±2% |
±5% |
±5% |
±2% |
±5% |
±5% |
±2% |
±5% |
±5% |
±2% |
±6% |
±6% |
Rated output current |
7A |
1A |
1A |
5A |
1A |
1A |
4A |
1A |
1A |
3A |
1A |
1A |
Output current range |
0.6-7A |
0.2-1A |
0.2-1A |
0.6-5A |
0.2-1A |
0.2-1A |
0.6-1A |
0.2-1A |
0.2-1A |
0.6-4A |
0.2-1.2A |
0.2-1.2A |
Wave and noise(Note:3) |
100mV |
100mV |
100mV |
100mV |
100mV |
100mV |
100mV |
100mV |
100mV |
50mV |
120mV |
120mV |
Inlet stability(Note:4) |
±0.5% |
±0.5% |
±0.5% |
±0.5% |
±0.5% |
±0.5% |
±0.5% |
±0.5% |
±0.5% |
±0.5% |
±1% |
±1% |
Load stability(Note:5) |
±1% |
±4% |
±4% |
±1% |
±4% |
±4% |
±1% |
±4% |
±4% |
±1% |
±5% |
±5% |
DC output power |
52W |
49W |
50W |
51W |
||||||||
Efficiency |
66% |
69% |
71% |
72% |
||||||||
Adjustable range for DC voltage |
CH1; +10, -5% |
CH1; +10, -5% |
CH1; +10, -5% |
CH1; +10, -5% |
||||||||
Input current |
1.6A/115V 0.8A/230V |
|||||||||||
AC inrush current |
Cold-start current 20A/115V 40A/230V |
|||||||||||
Leakage current |
<0.5mA/240VAC |
|||||||||||
Overload protection |
105%~150% Type: pulsing hiccup shutdown Reset: auto recovery |
|||||||||||
Temperature coefficient |
±0.03%/°c(0~50°c)ON+5V |
|||||||||||
Setup, rise , hold up time |
200ms, 50ms, 16ms |
|||||||||||
Vibration |
10~500Hz, 2G 10min,/1cycle, Period for 60min, Each axes |
|||||||||||
Withstand voltage |
Input and output internal: Input and encolsur: 1.5KvAC, Output and enclosure: 0.5KvAC |
|||||||||||
Isolation resistance |
Input and output internal: Input and enclosure, Output and enclosure:500VDC/100MΩ |
|||||||||||
Working temperature and humidity |
-10°c~+60°c(Refer to output derating curve), 20%~90%RH |
|||||||||||
Overall dimension |
159×98×38mm |
|||||||||||
Weight |
0.55Kgs |
|||||||||||
Safety standards |
Meet UL 1012 requirement (Not apply for the mark) |
|||||||||||
The 5 layers corrugated empty carton can bear 1 person pressure ,
you can rest assured about our fixed package
we use 4 trips to reinforce our carton,the international standards package methods
guaranteed our goods safety during transportation
we can shiped the goods by EMS DHL FEDEX UPS AIR SEA SF TNT
Notes on choosing a switching power supply?
To increase the reliability of the S.P.S., we suggest users choose a unit that has a rating of 30% more power than actual need. For example, if the system needs a 100W source, we suggest that users choose a S.P.S. with 130W of output power or more. By doing this, you can effectively boost the reliability of the S.P.S. in your system.Make sure that the model qualifies for the safety standards and EMC regulations you need.
- What are switching power supplies?
- Switching power supplies input a commercial AC power supply (such as 110 VAC or 220 VAC), uses a high-speed semiconductor switching process to convert the input to high-frequency electric power, and yields a direct current (such as 24 VDC).
