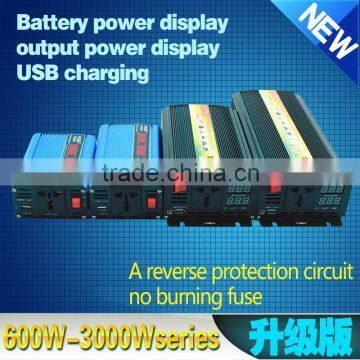

12VDC to 220VAC 1200w Modified Solar Power Inverter Inverter

Model

UTP-1200

Input

DC Voltage

12V or 24V or 48V or 110V

Voltage Range

10-15VDC or 21-30VDC or 42-60VDC or 92-132VDC

No Load Current Draw

<0.2A

Efficiency

> 90%

DC Connector

Cables With Clips or Car Adaptor

Output

AC Voltage

100/110/120VAC or 220/230/240 VAC

Continuous Power

700W

Max Power

1200W

Surge Power

1200W

Waveform

modified sine wave power inverter

Frequency

50Hz or 60Hz ±2

THD

<3% (Linear load)

Output sockets

AC sockets/ USB 5V 500mA (optional)

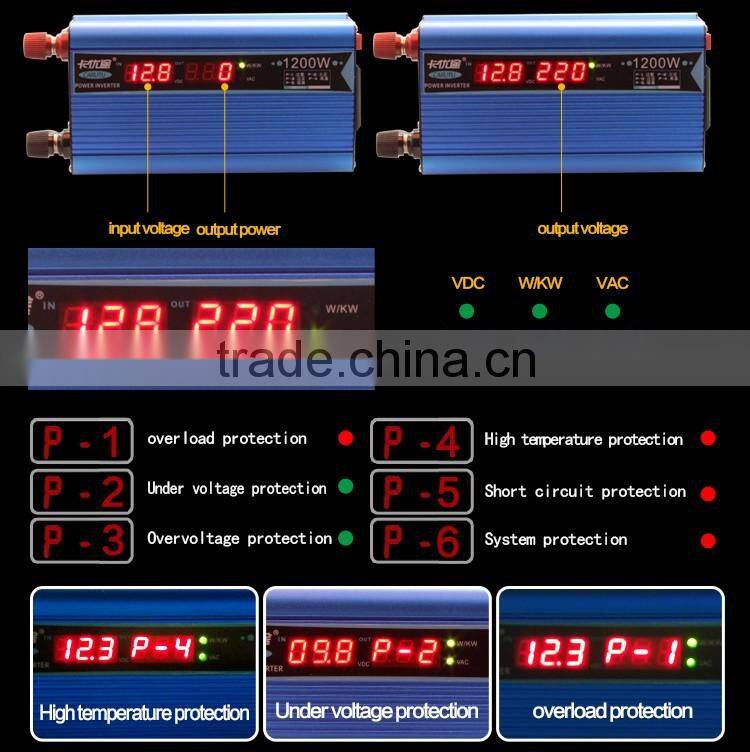

Protection

Low Voltage Alarm

10DC±0.5V or 20.5DC±1V or 44VDC±1V or 100VDC±1V

Low Voltage Shut Down

9.5DC±0.5V or 19.5DC±1V or 42VDC±1V or 96VDC±5V

Over Load

Shut Off Output

Over Voltage Shut Down

15.5V or 30.5V or 61.2V or 120V

Over Thermal

Shut Off Output Automatically

Fuses

blade fuse

Start

Soft Start

Cooling Ways

Intelligent cooling fan

Environment

Working Temperature

Between -10°C and +50°C

Working Humidity

20%~90%RH non-condensing

Storage Temperature

Between -30°C and +70°C

Package

Machine Size(mm)

175*98*55MM

Packing Size(mm)

170X110X60

Net Weight(g)

820

Gross Weight(kg)

1.18

Packing Mode

Carton
