Specifications
1.with API 8C,7K2.made of good-quality forged alloy steel
3.verified by ABAQUS finite-element analysis&of electrical trials

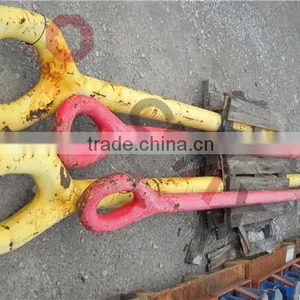

Elevator links
* These kinds of elevator links are designed in accordance with API 8C,7K and relative technical standards and have getten a production license from relative authority.
* These kinds of elevator links are made of good-quality forged alloy steel.
* The intensity and stress force of the elevator links have been verified and tested by ABAQUS finite-element analysis and of electrical trials.
* The elevator links have been treated with two-grade sand blast for surface finish.
Main technical specification for single-arm elevator links
Model |
Rated load kN/US ton |
Working length (in) |
Dimension (in) |
Net weight (lbs) |
DH75 |
665/75 |
59 |
64×10×3.5 |
110 |
DH150 |
1335/150 |
71 |
78×11×4 |
132 |
DH250 |
2225/250 |
106 |
114×14×4.3 |
331 |
Main technical specification for double-arm elevator
Model |
Rated load kN/US ton |
Working length (in) |
Dimension (in) |
Net weight (lbs) |
SH75 |
665/75 |
59 |
64×12×3.5 |
132 |
