Oil Drilling Rig Swivel API Oil Drilling Swivel

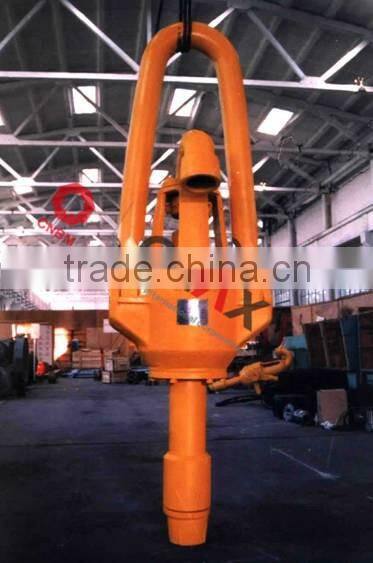

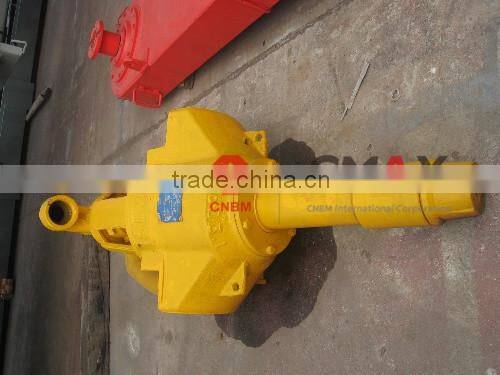

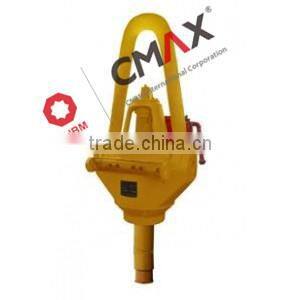

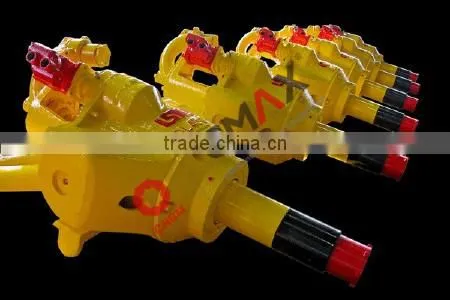

Oil Drilling Rig Swivel API Oil Drilling Swivel photo-1

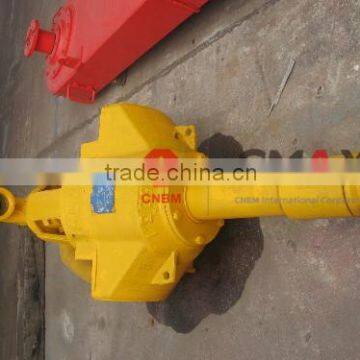

Oil Drilling Rig Swivel API Oil Drilling Swivel photo-2

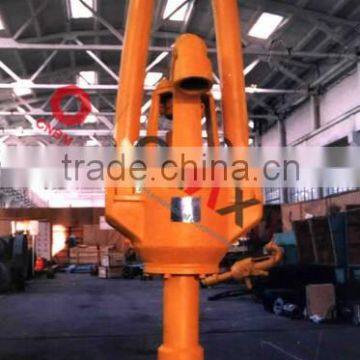

Oil Drilling Rig Swivel API Oil Drilling Swivel photo-3

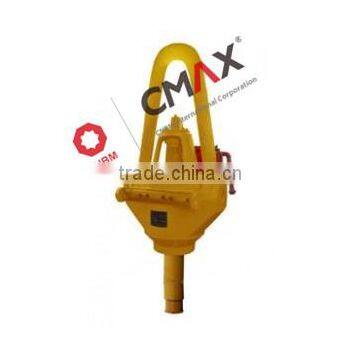

Oil Drilling Rig Swivel API Oil Drilling Swivel photo-4
Negotiable MOQ: 1 Set (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Brand Name:
CNBM
Model Number:
SL70,SL110,SL135,SL160,SL225
Payment & Shipping
Payment Methods:
Port of Shipment:
Shanghai Port TianJin Port
Delivery Detail:
Delivery time depends on order quantity.
Brand Name CNBM
Model Number SL70,SL110,SL135,SL160,SL225

Specifications

Conform to API Spec 8C Standard and the other related technical standards.
Load carrying components are made of high quality.

* The swivel is designed and manufactured in accordance with API Spec 8C, SY5210 and other related technical standards.

* The loaded parts are made of good-quality alloy steel.

* The flushing pipes and packing can be dismantled easily for replacement by design of a portable packing unit.

Main technical specification for swivel



Model

SL70

SL110

SL135

SL160

SL225

Max static loads (lbs)

151000

252000

300000

359000

337000

The working load of the main bearing per 100r/min (lbs)

67000

101000

224000

269000

337000

The centerline and vertical line inclination of the gooseneck pipe

15°

15°

15°

15°

15°

Thread of the gooseneck pipe

2 3/8"TBG

4 1/2”DP

4 1/2"TBG

4 1/2"TBG

4 1/2"TBG

Thread of the lower end of the connection

3 1/2"REG LH

4 1/2"REGLH

6 5/8"REG LH

6 5/8"REG LH

6 5/8"REG LH

Max working pressure (psi)

2100

3000

3000

5000

5000

Diameter of the center pipe (in)

2

2 1/2

3

3

3

Overall dimension (in)

67×18×12

64×11×20

89×27×29

95×27×28

102×31×26

Weight (lbs)

600

740

2100

2200

2900













Oil drilling rig Swivel API oil drilling SwivelOil drilling rig Swivel API oil drilling Swivel







Oil drilling rig Swivel API oil drilling Swivel



Oil drilling rig Swivel API oil drilling Swivel
