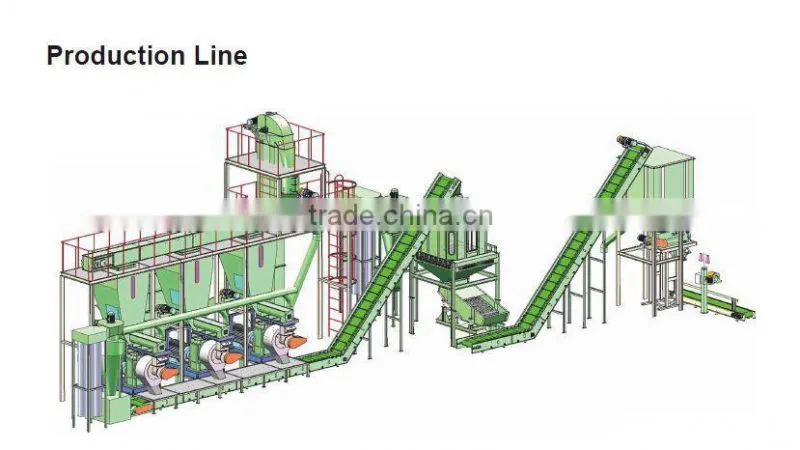

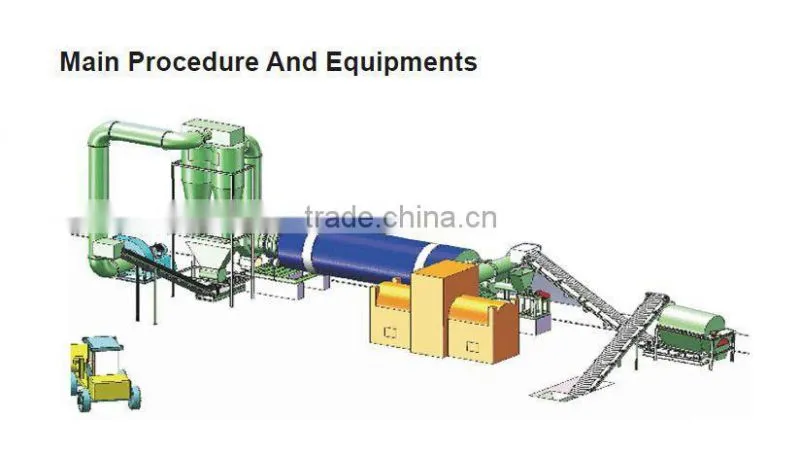

1. Main Equipments:
Conveyor→Screen→Standard Dryer(can be removed if the moisture of raw material is proper)
→Elevator→Scrapper→Pre-pelleting Silo→3 Sets of Pellet ,Machines→ Pellets Conveyor
Belt(skirt-edged belt conveyor) →Cooler→Pack.
2. Other Equipments:
Electric Control→Cooling System of Main Engine→Air Net of Cooler→Deffrization system.
Features
There’s flame retaining wall inside, which induces just air without fire. Temperature control display
is equipped in the final end. Flame can be adjusted manually according to the moisture of material.
1. Material: wood sawdust(mainly);
2. Original moisture contained:40%;
3. Final moisture contained:12%;
4. Output:1T/H(with goal moisture contained);
5. Inlet temperature of hot air:300℃ ;
6. Output temperature of hot air:70℃ ;
7. Properties of water: surface water;
8. Recycle methods:host+cyclone;
9. Heating :direct-fired hot blast stove(burning firewood);
10. Power supply:380V 50HZ three-phase four-wire.
Specification:
The production line should be customer designed, and we need more details to give an accurate answer, please contact us.
FAQ
1.Q:Can you supply the installation drawing?
A:Yes,it's available.Will offer boiler body drawing,valve and meter drawing,thermal test report,strength calculate report and product list.
2.Q:How to ger a price list?
A:We need to know following points:
1.) what is the capacity per hour you required?
2.) what is the pressure of your needed boiler?
3.Q:Do you accept a special order?
A:Yes,we do. All kinds of boilers can be designed and manufactured if details and specification can be offerd.
4.Q:Can you make a design for us?
A: Yes, we can. What we supply is not only product, but also solution and design.
5.Q: If the machine works wrong, how to repair it?
A:We have professional after-sale service team,will send our engineers to your country and solve your problems immediately once reveived your problem feedback.
