Home > Manufacturing & Processing Machinery > Lifting Equipment > Lifting Table > ETFD Mini Electric Table Lift

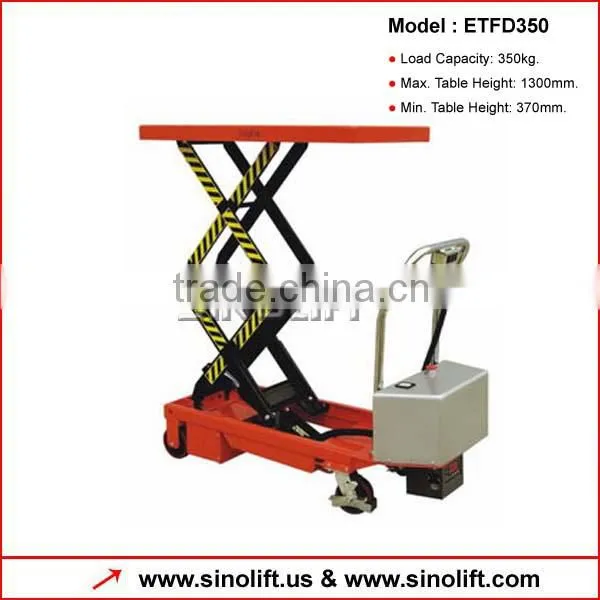

ETFD Mini Electric Table Lift

Name: ETFD Mini Electric Table Lift
Brand: SINOLIFT
SKU: 132450785

ETFD Mini Electric Table Lift thumbnail-1

Negotiable MOQ: 6 Units (Price negotiable depending on order volume and customization)

Key Specifications

Get Latest Price

Place of Origin:

Shanghai, China

Brand Name:

SINOLIFT

Model Number:

ETFD

Contact Supplier Request Quote Chat Now

Shanghai Sinolift Equipment Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

SHANGHAI

Delivery Detail:

Delivery time depends on order quantity.

Product Details
Company Profile
Contact Us

Place of Origin Shanghai, China

Brand Name SINOLIFT

Model Number ETFD

Lift Mechanism Scissor Lift

Lift Drive / Actuation Electric Motor

Power Electric

Rated Loading Capacity 350kg

Min. Lifting Height 370mm

Max. Lifting Height 1300mm

Table Size 910x500x53mm

Overall Dimensions 1210x600x350mm

Weight 142kg

Certification CE

Warranty 1 year

After-sales Service Provided Engineers available to service machinery overseas

Specifications

ETFD Mini Electric Table Lift
- Load Capacity: 350kg.
- Max. Table Height: 1300mm.
- Min. Table Height: 370mm.

TFD Mini Electric Table Lift

1) Features

- Fully sealed & maintenance-free battery

- Reliable brakes ensures the stability and safety

- Lightweight yet robustly constructed

- Conforms to CE Normals

2) Specification Data

Model		ETFD35
Capacity	kg	350
Max.table height h2	mm	1300
Min.table height h1	mm	370
The dimension of table size(L*B)	mm	910x500x53
Caster Wheel d	mm	Φ125x40
Overall length L1	mm	1210
Height Of Handle From The Ground h3	mm	920
Lifting speed with load/without load	mm/s	90/110
Lowering speed with load/without load	mm/s	100/90
Lifting Cycle(fully charged)		100
Battery x 2		12v 24Ah
Vertical Travel h4	mm	930
Lifting Motor(DC24V KW)		0.8
Charger(built-in)24V4A		8.5Hr
Approx Lifting Speed	s	10
Net Weight	kg	142

3) Photos

4) workshop:

5) terms and service:

1.Lead time	3-4 weeks
2.Packing	Standard export fumigated wooden pallet, foam rubbers
3.Payment term	T/T payment in advance; L/C at sight.
4.Lead term	FOB Shanghai or CFR/CIF
5.Warranty period	12 months
6.Shipping method	by sea or air; by express.

6) Warranty Policy and service program

SINOLIFT give our customer warranty in each forklifts, pallet trucks (pallet jacks), stackers, table lifts , access work platform and drum handling equipments which remind us we are always responsible for promotion our service.

Please check the warranty policy for the line of SINOLIFT material handling equipments from our sales department. Please note the warranty is for end user who purchase direct from SINOLIFT.

If your products from local distributor, please contact them. We provide full line after-sales service for our distributors. SINOLIFT believe local strategy is the best way for our distributors and local customers.

SINOLIFT offer all of handling equipments are reconditioned to our specifications, which come with a 12 months warranty on major components and 180 days on wearable items.
