Home > Manufacturing & Processing Machinery > Lifting Equipment > Lifting Table > CYT-F Series Hydraulic Lift Table

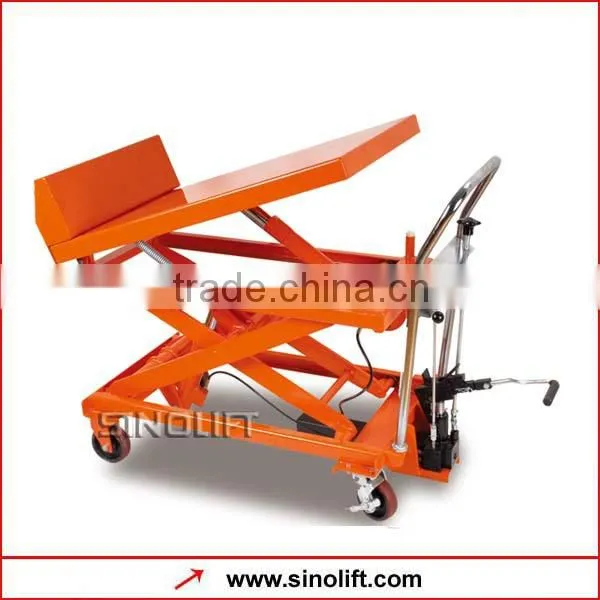

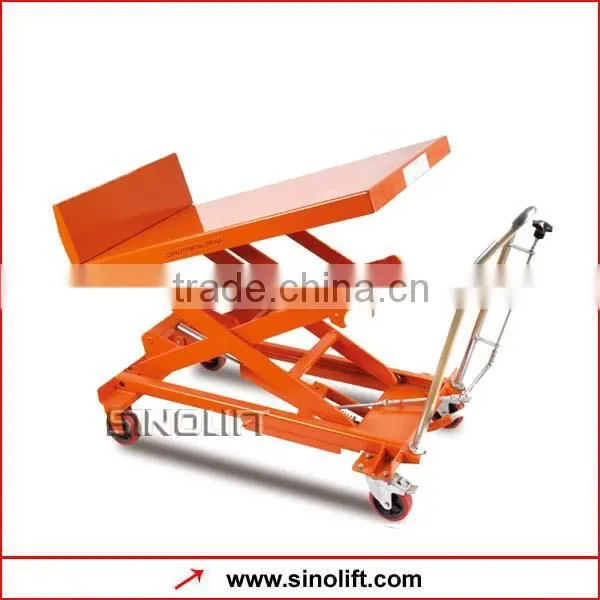

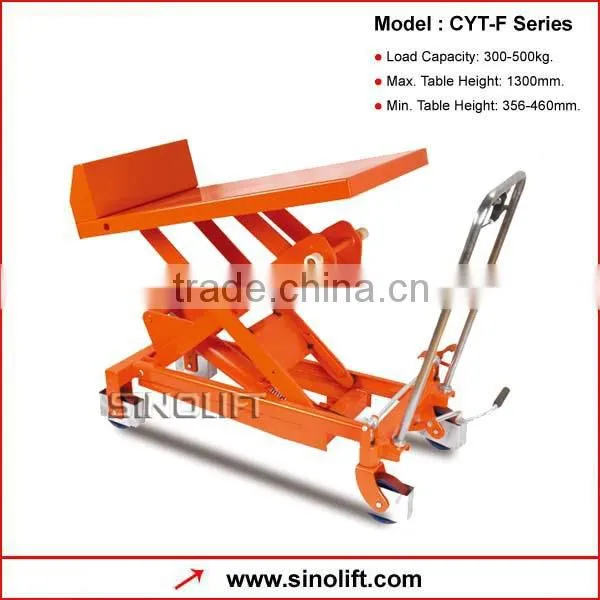

CYT-F Series Hydraulic Lift Table

Name: CYT-F Series Hydraulic Lift Table
Brand: SINOLIFT
SKU: 132450627

CYT-F Series Hydraulic Lift Table thumbnail-1

CYT-F Series Hydraulic Lift Table photo-1

Negotiable MOQ: 1 Set (Price negotiable depending on order volume and customization)

Key Specifications

Get Latest Price

Place of Origin:

Shanghai, China

Brand Name:

SINOLIFT

Model Number:

CYT-F Series

Contact Supplier Request Quote Chat Now

Shanghai Sinolift Equipment Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

SHANGHAI

Delivery Detail:

Delivery time depends on order quantity.

Product Details
Company Profile
Contact Us

Place of Origin Shanghai, China

Brand Name SINOLIFT

Model Number CYT-F Series

Lift Mechanism Scissor Lift

Lift Drive / Actuation Hydraulic

Power manual

Rated Loading Capacity 500kg

Min. Lifting Height 460mm

Max. Lifting Height 1300mm

Table Size 950x560x55mm

Overall Dimensions 960x530x420mm

Weight 145kg

Certification CE

Warranty 1 year

After-sales Service Provided Engineers available to service machinery overseas

Specifications

hydraulic lift table
1. Load Capacity: 300-500kg.
2. Max. Table Height: 1300mm.
3. Min. Table Height: 356-460mm.

CYT-F Series Hydraulic Lift Table

1) Features

- Manual hydraulic foot pump controls platform lift, tilt, and lowering.
- Manual selector valve controls lifting/lowering sequence independently from tilting sequence.
- Ergonomic handle.
- Turn-knob release mechanism.
- Two-speed foot pump.
- 13-second down time with load.

2) Specification Data

Model		CYT300F	CYT500F	CYT300F-1	CYT500F-1
Load Capacity	kg	300	500	300	500
Lowest Height	mm	356	420	460	460
Max. Height	mm	1300	1300	1300	1300
Table Dimensions	mm	1000X610	1000x550	950x560x55	950x560x55
Total Length	mm	1320	1360	1390	1390
Length of Handle	mm	950	1000	970	970
Net Weight	kg	138	116	140	145
Packing Dimensions	mm	1080x620x370	1160x600x430	1200x570x470	960×530×420
Qty in one 20" Container	units	90	72	56	56

3) Photos

4) workshop:

5) terms and service:

1.Lead time	3-4 weeks
2.Packing	Standard export fumigated wooden pallet, foam rubbers
3.Payment term	T/T payment in advance; L/C at sight.
4.Lead term	FOB Shanghai or CFR/CIF
5.Warranty period	12 months
6.Shipping method	by sea or air; by express.

6) Warranty Policy and service program

SINOLIFT give our customer warranty in each forklifts, pallet trucks (pallet jacks), stackers, table lifts , access work platform and drum handling equipments which remind us we are always responsible for promotion our service.

Please check the warranty policy for the line of SINOLIFT material handling equipments from our sales department. Please note the warranty is for end user who purchase direct from SINOLIFT.

If your products from local distributor, please contact them. We provide full line after-sales service for our distributors. SINOLIFT believe local strategy is the best way for our distributors and local customers.

SINOLIFT offer all of handling equipments are reconditioned to our specifications, which come with a 12 months warranty on major components and 180 days on wearable items.
