Home > Manufacturing & Processing Machinery > Lifting Equipment > Lifting Table > CYT-H CYTS-H Double Scissors Lift Table

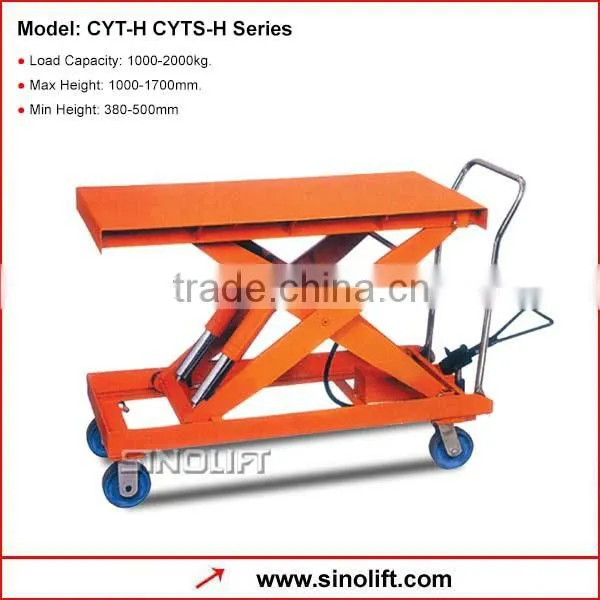

CYT-H CYTS-H Double Scissors Lift Table

Name: CYT-H CYTS-H Double Scissors Lift Table
Brand: SINOLIFT
SKU: 132450483

CYT-H CYTS-H Double Scissors Lift Table thumbnail-1

CYT-H CYTS-H Double Scissors Lift Table photo-1

Negotiable MOQ: 6 Sets (Price negotiable depending on order volume and customization)

Key Specifications

Get Latest Price

Place of Origin:

Shanghai, China

Brand Name:

SINOLIFT

Model Number:

CYT-H CYTS-H

Contact Supplier Request Quote Chat Now

Shanghai Sinolift Equipment Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

Shanghai

Delivery Detail:

Delivery time depends on order quantity.

Product Details
Company Profile
Contact Us

Place of Origin Shanghai, China

Brand Name SINOLIFT

Model Number CYT-H CYTS-H

Lift Mechanism Scissor Lift

Lift Drive / Actuation Hydraulic

Power Manual

Rated Loading Capacity 2000kg

Min. Lifting Height 380mm

Max. Lifting Height 1000mm

Table Size 1200X610X55mm

Overall Dimensions 1400x620x380mm

Weight 196kg

Certification CE

Warranty 1 year

After-sales Service Provided Engineers available to service machinery overseas

Specifications

Lift Table
1. Load Capacity: 350-750kg.
2. Max. Table Height: 900-1300mm.
3. Min. Table Height: 350-420mm.

CYT-H CYTS-H Double Scissors Lift Table

1) Features

- Design for lifting, positioning and transporting heavy loads in the shop, warehouse and office.

- Foot Pump hydraulic ally raises platform.

- Double heavy-duty cylinder.

2) Specification Data

Model		CYTS1000H	CYT1000H	CYT1500H	CYT2000H
Load Capacity	kg	1000	1000	1500	2000
Max. Height	mm	1700	1000	1000	1000
Min. Height	mm	500	380	380	380
Table Dimensions	mm	1220X610X55	1200X610X55	1200X610X55	1200X610X55
Handle Height	mm	1000	1000	1000	1000
Wheel Diameter	mm	150	150	150	150
Net Weight	kg	240	165	180	196
Packing Dimensions	mm	1400x620x510	1400x620x400	1400x620x380	1400x620x380
Qty in one 20" container	units	52	65	65	65

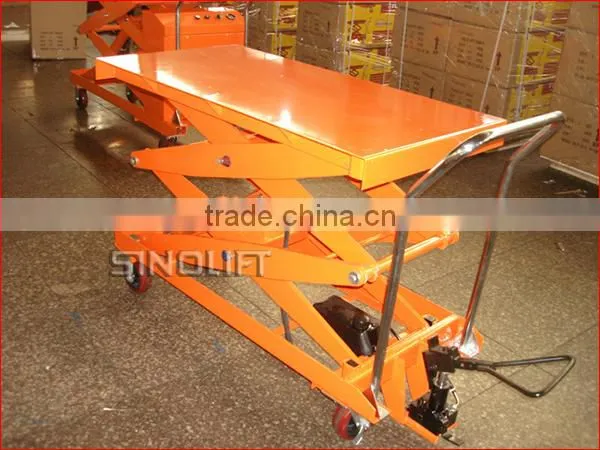

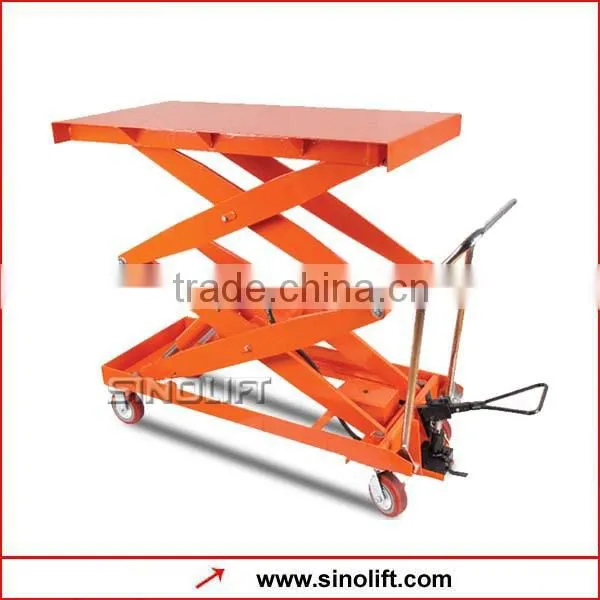

3) Photos

4) workshop:

5) terms and service:

1.Lead time	3-4 weeks
2.Packing	Standard export fumigated wooden pallet, foam rubbers
3.Payment term	T/T payment in advance; L/C at sight.
4.Lead term	FOB Shanghai or CFR/CIF
5.Warranty period	12 months
6.Shipping method	by sea or air; by express.

6) Warranty Policy and service program

SINOLIFT give our customer warranty in each forklifts, pallet trucks (pallet jacks), stackers, table lifts , access work platform and drum handling equipments which remind us we are always responsible for promotion our service.

Please check the warranty policy for the line of SINOLIFT material handling equipments from our sales department. Please note the warranty is for end user who purchase direct from SINOLIFT.

If your products from local distributor, please contact them. We provide full line after-sales service for our distributors. SINOLIFT believe local strategy is the best way for our distributors and local customers.

SINOLIFT offer all of handling equipments are reconditioned to our specifications, which come with a 12 months warranty on major components and 180 days on wearable items.
