2015 New CYTH Series Hydraulic Platform Hand Scissor Lift Truck
- 500 Unit / Units per Month
- SHANGHAI
- T/T L/C D/P D/A Credit Card PayPal
- China easy operated scissor lift platform, truck mounted platform scissor lift
- China low cost hydraulic elevating platform, truck mounted platform scissor lift
- 2015 hot sale double ladder stop type hydraulic scaffolding lift
- Big discount offered 8m lift self propelled hydraulic outdoor aerial work platform scissor lift
- China factory direct sale self propelled scissor lift table / hydraulic scissor lift
- China good working performance hydraulic scissor lift table, electric mini scissor lift
Product Details
Brand Name: | SINOLIFT Scissor Lift Truck | Model Number: | CYTH | Lift Mechanism: | Scissor Lift |
Lift Drive / Actuation: | Hand | Power: | 0.75kw | Rated Loading Capacity: | 1000kg |
Min. Lifting Height: | 380mm | Max. Lifting Height: | 1000mm | Table Size: | 1250X550X390mm |
Overall Dimensions: | 1400x620x380mm | Weight: | 165kg | Certification: | CE |
Warranty: | 1 year | After-sales Service Provided: | Engineers available to service machinery overseas |
Product Description
2015 New CYTH Series Hydraulic Platform Hand Scissor Lift Truck
1)Features of Scissor Lift Truck
Full featured hydraulic scissor lift tables are used by all types of manufacturing and warehouse facilities. Safety features include: electric toe guard to protect pinch points during lowering of the table, brass velocity fuse to maintain platform height regardless of hydraulic pressure, 24V AC push-button hand control, maintenance prop, and upper travel limit switch to stop table at maximum height reducing motor wear. 2HP, 460V, 3 phase, 60 Hz totally enclosed motor standard, other voltages available. 3000 psi hydraulic component rating.
2) Specification of Scissor Lift Truck
Model | CYT1000H | CYT1500H | CYT2000H | |
Capacity | kg | 1000 | 1500 | 2000 |
Max.Height | mm | 1000 | 1000 | 1000 |
Min.Height | mm | 380 | 380 | 380 |
Table Deminntion | mm | 1200X610X55 | 1200X610X55 | 1200X610X55 |
Weight | kg | 165 | 180 | 196 |
Packing Size | mm | 1400x620x400 | 1400x620x380 | 1400x620x380 |
Quantity in 20'CP | units | 65 | 65 | 65 |

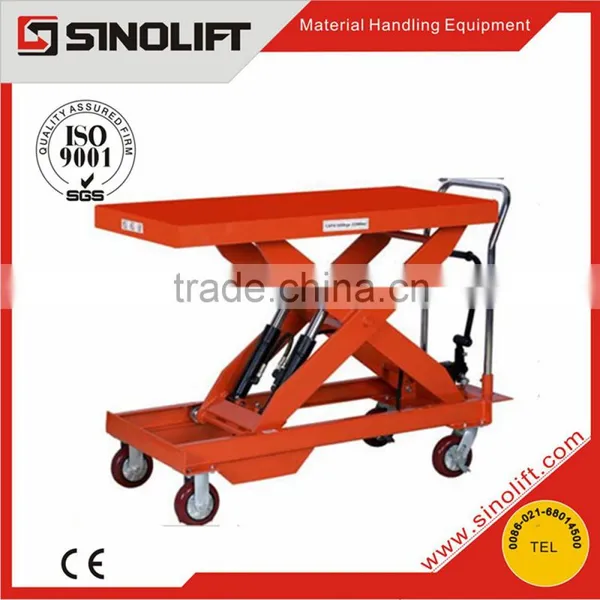

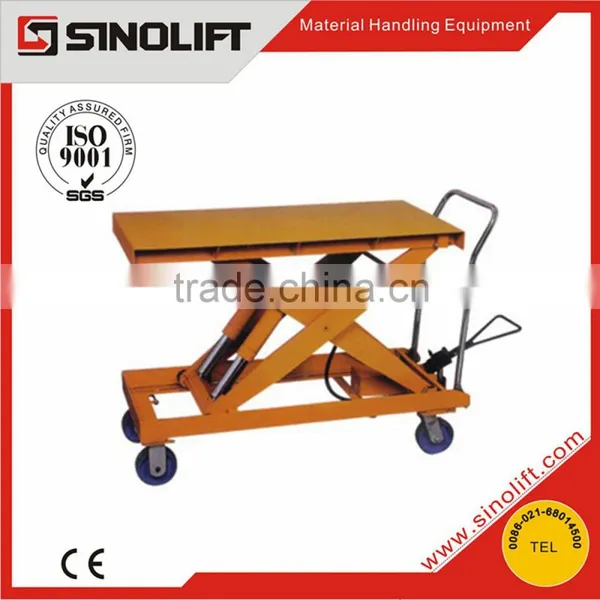

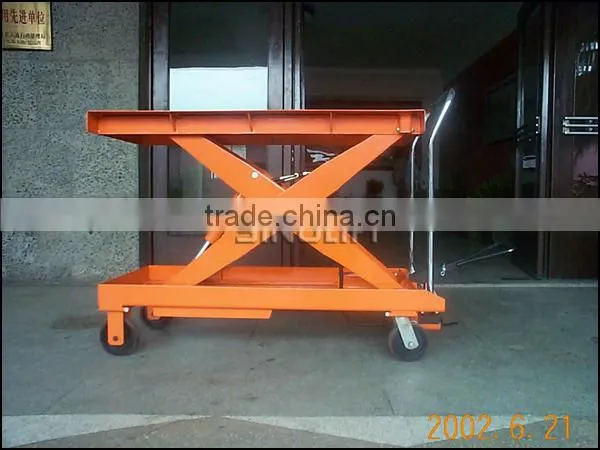

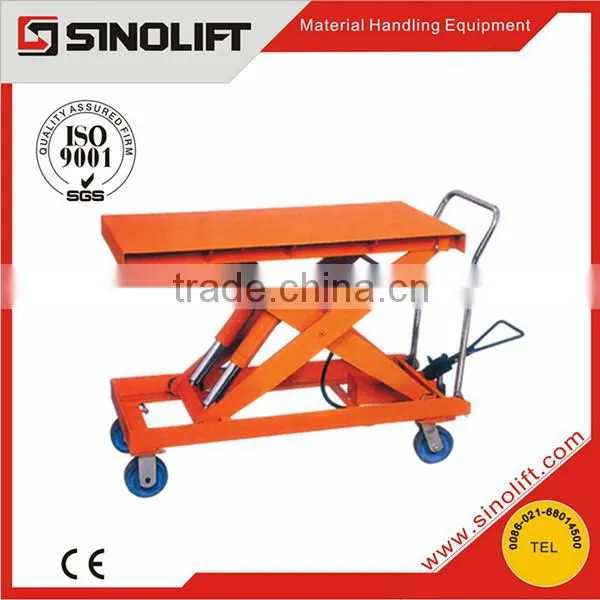

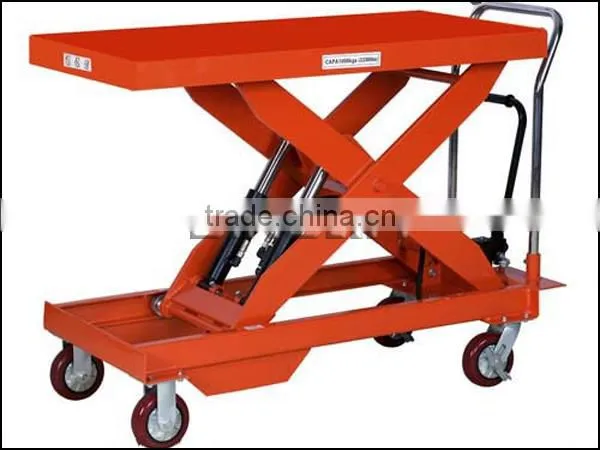

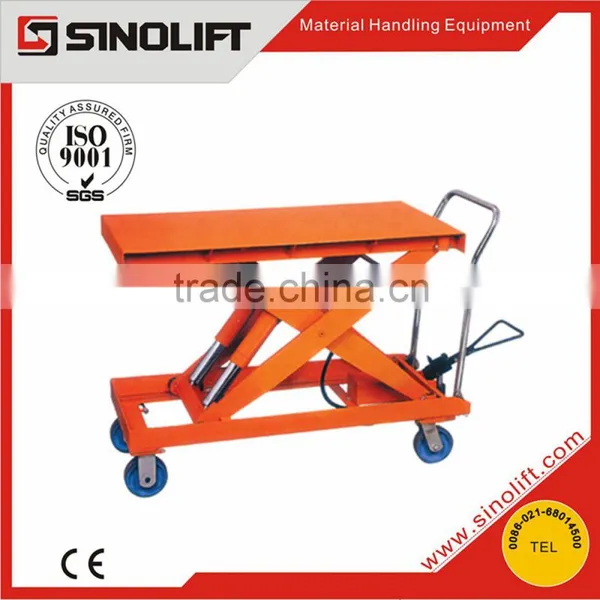

3)Photos of Scissor Lift Truck

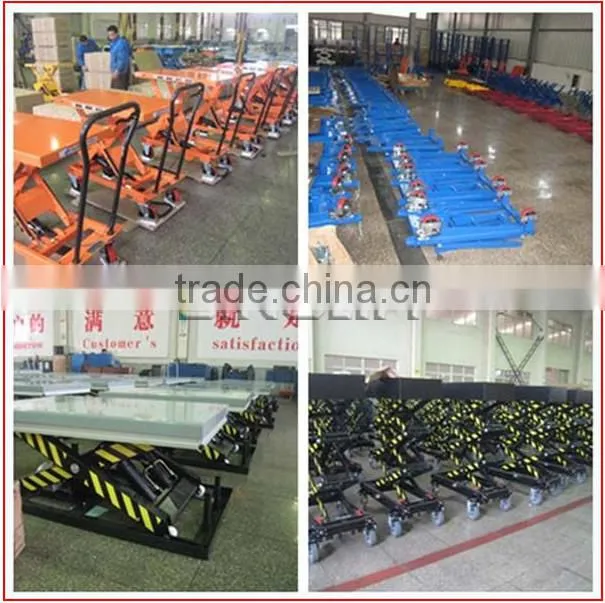

4)Workshop
5)Certificate
Shanghai Sinolift Equipment Co., Ltd is a production, design, manufacture, sales and service in one integrated production and trade enterprises. Main types of forklifts, material handling, storage and lifting products, also offer a variety of wire harnesses, TFT rule processing business, and produce a variety of OEM memory cards. Products are used in Germany and Japanese technology, all products passed "TUV", "CE", "GS" and "ISO9001" international quality system certification, the application of new technologies has unique.
6)Terms and Service
Lead time | 3-4 weeks |
Packing | Standard export fumigated wooden pallet, foam rubbers |
Payment term | T/T payment in advance; L/C at sight |
Lead term | FOB Shanghai or CFR/CIF |
Warranty period | 12 months |
Shipping method | by sea or air; by express |
7) Warranty Policy and service program
SINOLIFT give our customer warranty in each forklifts, pallet trucks (pallet jacks), stackers, table lifts , access work platform and drum handling equipments which remind us we are always responsible for promotion our service.
Please check the warranty policy for the line of SINOLIFT material handling equipments from our sales department. Please note the warranty is for end user who purchase direct from SINOLIFT.
If your products from local distributor, please contact them. We provide full line after-sales service for our distributors. SINOLIFT believe local strategy is the best way for our distributors and local customers.
SINOLIFT offer all of handling equipments are reconditioned to our specifications, which come with a 12 months warranty on major components and 180 days on wearable items.
8) Why choose us?
1- We're a material handling company, a pioneer in the industry in China, we've been leading the Chinese warehouse equipment industry since 2001. Sinolift products have been delivered to more than 80 countries.
2- We are unique, which means you will have a unique partner with unique trucks in the market, in long term. We are not assembling, 95% core parts are produced by ourselves, for example EPS, Hydraulic units, driving units are all produced by Sinolift, the only one in China. And Sinolift is keeping on investing 30% of its margin on R&D. At present, Sinolift is the only producer who delivers EPS as standard on most models.
3- Strict Quality Control: 48 hours 100% inspection of electronic parts test, 100% Quality Control before delivery, including Noisy, Driving, Lifting, and Welding inspection. Sinolift Quality has been accepted by world market, 13 world famous brand names are cooperating with Sinolift.
4- Full range products, High-Quality and economic models are both available from Sinolift, we have resources to help our partners to open the market easily.
5- Sinolift has a whole set of failure predication, repair, maintenance data which will reduce 60% of the dealer's after-sale service cost.
6- Universal core parts and design between different models. Structure of Sinolift products and 80% core parts are universal between different models, which will reduce greatly service parts stock and make the job of service people much easier.
7- Most parts are available, no matter assembly or small components, because it’s produced by Sinolift itself. You don’t need to replace any assembly when its components are damaged, which will help to save 90% of the replacements parts cost sometimes.
8- Fast. Fast delivery time, Fast service and communication. Within one hour Sinolift will respond and within 3 hours we will offer the solution. Less than 15 days standard delivery time for electric products.
9- We don’t ask more though we do much better! We offer reasonable price level!
10- We're honest and straight forward at work because that's the way we are in our homes, we keeps loyal to our partners!
