2015 SINBOLIFT SH-3DB-CM Transporting Loading and Unloading Electric Utility Platform Truck
1) Features of Electric Utility Platform Truck
Your productivity depends very much on the efficiency of your Material Handling System. On the movements ogoods to be more specific. To ensure a smooth flow of goods in your production unit, we’ll simply put them onwheels for you. Presenting our ELECTRICLLY OPERATED PLATFORM TRUCK
2) Specification of Electric Utility Platform Truck
| Body & Chassis | |
| Frame & Body | Welded steel with powder coating |
| Body & Finish | Diamond plate pattern. |
| Color | Blue Glossy |
| Dimmension | |
| Cargo Deck Length | 240 cm - can be up to 300 cm |
| Overall Length | 369.5cm |
| Overall Width | 135 cm |
| Wheel Base | 190 cm |
| Front Wheel Track | 107 cm |
| Rear Wheel Track | 111.5 cm |
| Ground Clearance (at differential) | 14 cm |
| Cargo Deck Width | 135 cm |
| Cargo Deck Load Height | 82 cm |
| Cargo Deck Material | steel |
| power | |
| Power Source | 48-volt DC |
| Motor Type | Shunt Wound |
| Horsepower (kW) | 6.8 hp (5.0 kW) @ 1400 rpm (this can carry 3 ton) |
| Electric System | 48 Volt |
| Batteries (qty/type) | Eight 48 Volt Deep Cycle, Swing Out Battery Trays |
| Key or Pedal Start | Key |
| Battery Charger (mobile) | 48 V, Q120 VAC, (CSA approved ) |
| Speed Controller | Solid State 400 Amp Rated Precision Drive System (PDS) |
| Drive Train | Motor Shaft Direct Drive |
| Transaxle | Differential with helical gears |
| Gear Selection | Dash Mounted Forward-Neutral-Reverse |
| Gerneral Transmission Ratio | 11.32 |
| Performance | |
| Capacity | 1-person |
| Weight | 930 kg |
| Cargo Deck Load Capacity | 3000 kg (3 ton) |
| Outside Clearance Circle | 6.7 m |
| Intersecting Aisle Clearance | 213 cm |
| Ground Speed (level ground) | 13 mph ± 0.5 mph (21 kph ± 0.8 kph) |
| Steering & Suspension | |
| Steering | Worm gear |
| Front Suspension | Independent suspention, transverse leaf spring, shock absorbers |
| Rear Suspension | Leaf springs & shock absorbers |
| Service Brake | Rear and Front Wheel Hydraulic Drum. |
| Parking Brake | Hand-operated mechanical |
| Front & Rear Tires | 7.00 -12 |
| Additional features | |
| Horn | Yes |
| Headlights, Brake Lights and Turn Signals | Yes |
| Hour Meter | Yes |
| Batteries State-of-Charge Meter | Yes |
| Clevis Hitch on the front bumpers | Yes |
| Backward & Forward Motion Indicator | Yes |

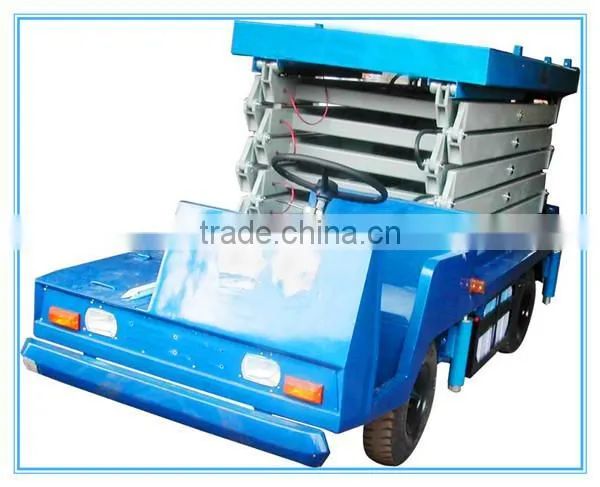

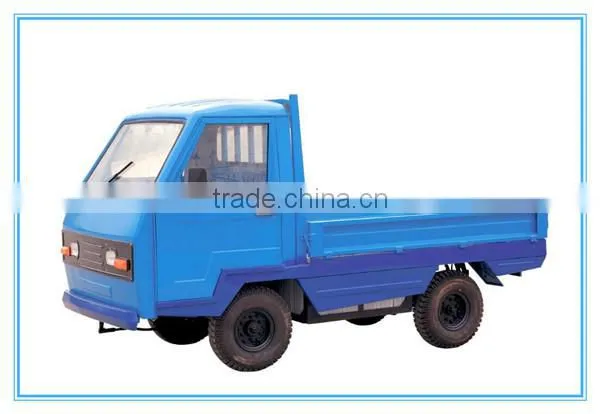

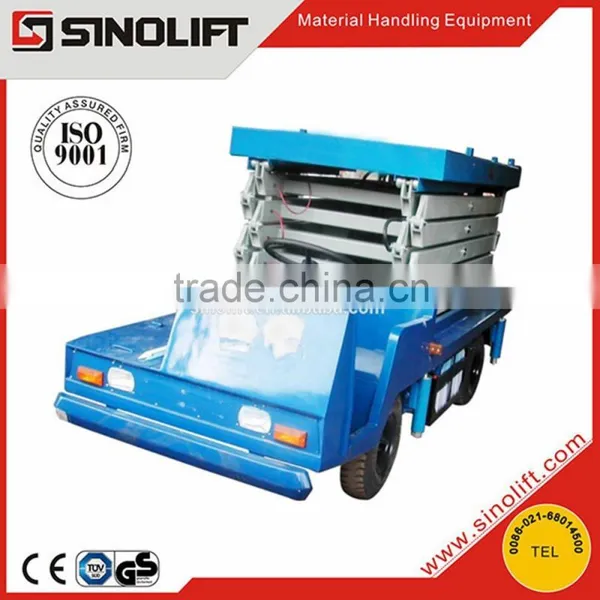

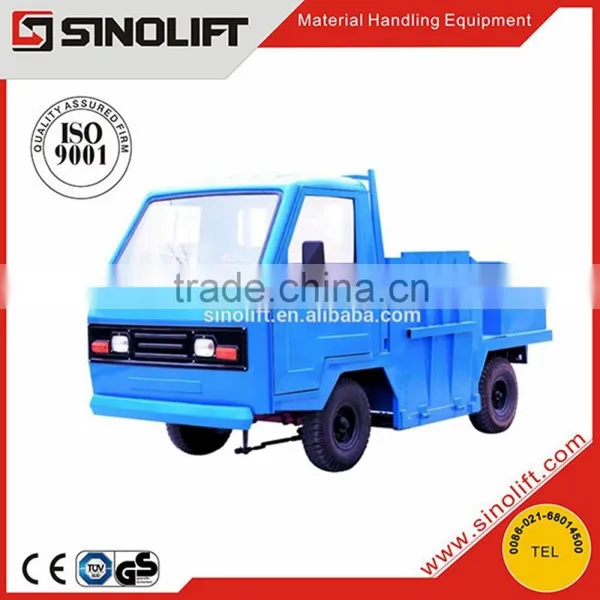

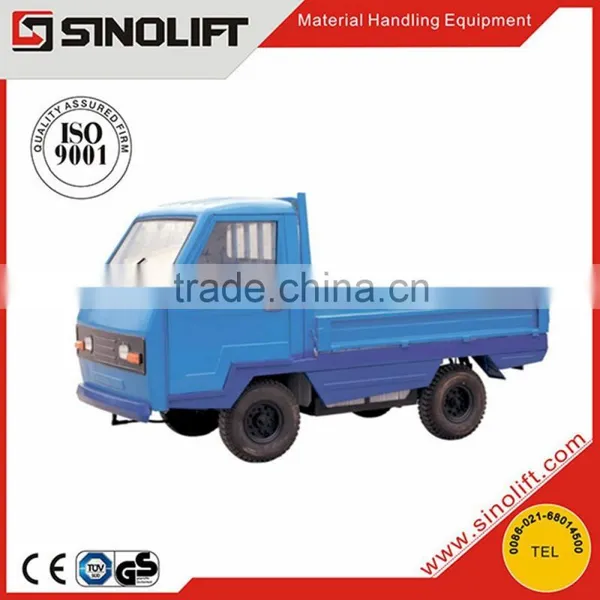

3) Photos of Electric Utility Platform Truck

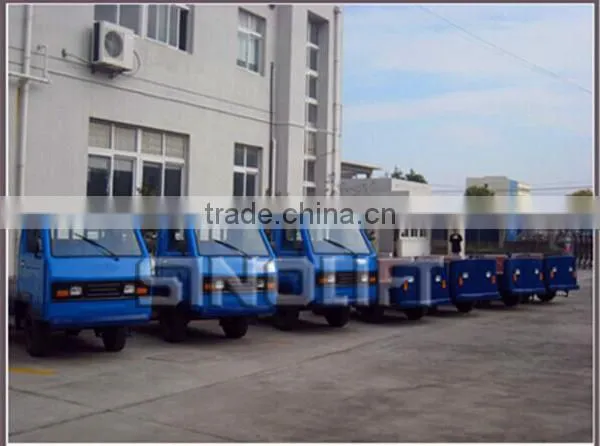

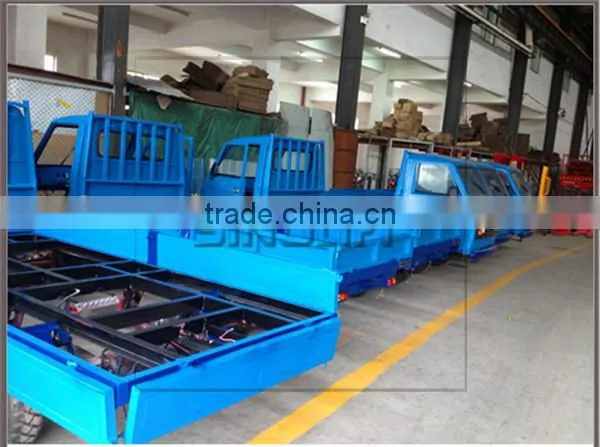

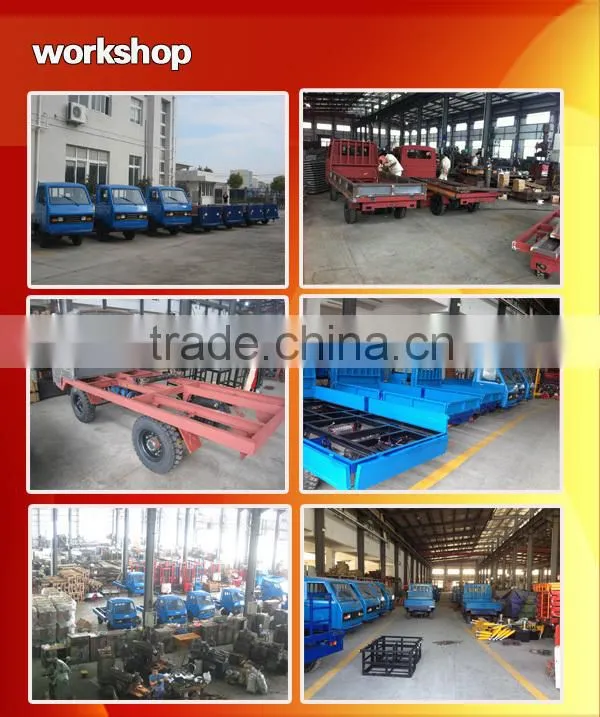

4) Workshop of Platform Truck

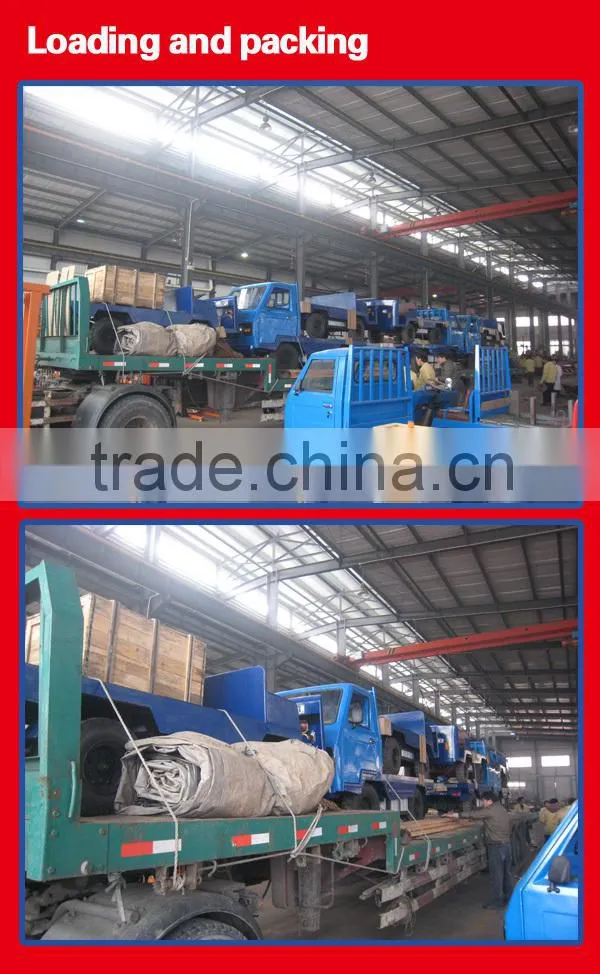

5) Parking and Loading into Container
6) Certificates
7) Terms and Service of Platform Truck
1.Lead time |
3-4 weeks |
2.Packing |
Standard export fumigated wooden pallet, foam rubbers |
3.Payment term |
T/T payment in advance; L/C at sight. |
4.Lead term |
FOB Shanghai or CFR/CIF |
5.Warranty period |
12 months |
6.Shipping method |
by sea or air; by express. |
8) Why choose us?
1- We're a material handling company, a pioneer in the industry in China, we've been leading the Chinese warehouse equipment industry since 2001. Sinolift products have been delivered to more than 80 countries.
2- We are unique. We are not assembling, 95% core parts are produced by ourselves. And Sinolift is keeping on investing 30% of its margin on R&D.
3- Strict Quality Control: 48 hours 100% inspection of electronic parts test, 100% Quality Control before delivery, including Noisy, Driving, Lifting, and Welding inspection.
4- Full range products, High-Quality and economic models are both available from Sinolift, we have resources to help our partners to open the market easily.
5- Sinolift has a whole set of failure predication, repair, maintenance data which will reduce 60% of the dealer's after-sale service cost.
6- Universal core parts and design between different models. Structure of Sinolift products and 80% core parts are universal between different models.
7- Most parts are available, no matter assembly or small components. You don’t need to replace any assembly when its components are damaged.
8- Fast. Fast delivery time, Fast service and communication.
9- We don’t ask more though we do much better! We offer reasonable price level!
10- We're honest and straight forward at work because that's the way we are in our homes, we keeps loyal to our partners!
9) Contact Us
Mobile:0086 15692169117
WhatsApp:008615692169117
Skype:Sinolift-Penny
