2015 SINOLITE LP12-030 LED Waterproof Power Supply with Certificate
1)Features of LED Waterproof Power Supply
1. High efficiency, low temp. movement(<18°C in full load),superior stability.
2. Power supplies can be used in dry,damp and wet locations.
3. Built-in EMI filter & low ripple, reduce LED attenuation & increase life span.
4. Aluminum mental housing, easy for heat dissipation & ensure stability.
5. Automatic protection for over voltage, over current
6. 8-hour full load aging test, strict QC before delivery.
7. IP66/67 waterproof rating, suitable for outdoor & indoor application.
2) Specification Data of LED Waterproof Power Supply
| Model Number | LP12-030 |
| AC Input | |
| Input Voltage Range | AC 180-250V |
| Frequency | 50Hz/60Hz |
| Input Current | 0.35A |
| DC Output | |
| Output Voltage | DC 12V |
| Output Current | 2.5A (max.) |
| Rated Output Power | 30W (Max.) |
| Waterproof Rating | IP67 |
| Automatic Protection | Over Voltage & Current / Short Circuit |
| Protection Reset | Automatic |
| Housing Dimension LxWxH | 212x36.5x26.5mm |
| Weight | |
| Certificate | CE |
| Model Number | LP12-060 |
| AC Input | |
| Input Voltage Range | AC 180-250V |
| Frequency | 50Hz/60Hz |
| Input Current | 0.64A |
| DC Output | |
| Output Voltage | DC 12V |
| Output Current | 5A (max.) |
| Rated Output Power | 60W (Max.) |
| Waterproof Rating | IP67 |
| Automatic Protection | Over Voltage & Current / Short Circuit / Temperature protection |
| Protection Reset | Automatic |
| Housing Dimension LxWxH | 180x69.5x45.5mm |
| Weight | |
| Certificate | CE |
| Model Number | LP12-100 |
| AC Input | |
| Input Voltage Range | AC 180-250V |
| Frequency | 50Hz/60Hz |
| Input Current | 1.1A |
| DC Output | |
| Output Voltage | DC 12V |
| Output Current | 8.33A (max.) |
| Rated Output Power | 100W (Max.) |
| Waterproof Rating | IP67 |
| Automatic Protection | Over Voltage & Current / Short Circuit / Temperature protection |
| Protection Reset | Automatic |
| Housing Dimension LxWxH | 240x69.5x45.5mm |
| Weight | |
| Certificate | CE |
| Model Number | LP12-150 |
| AC Input | |
| Input Voltage Range | AC 180-250V |
| Frequency | 50Hz/60Hz |
| Input Current | 1.5A |
| DC Output | |
| Output Voltage | DC 12V |
| Output Current | 12.5A (max.) |
| Rated Output Power | 150W (Max.) |
| Waterproof Rating | IP67 |
| Automatic Protection | Over Voltage & Current / Short Circuit / Temperature protection |
| Protection Reset | Automatic |
| Housing Dimension LxWxH | 233x130x605mm |
| Weight | |
| Certificate | CE |

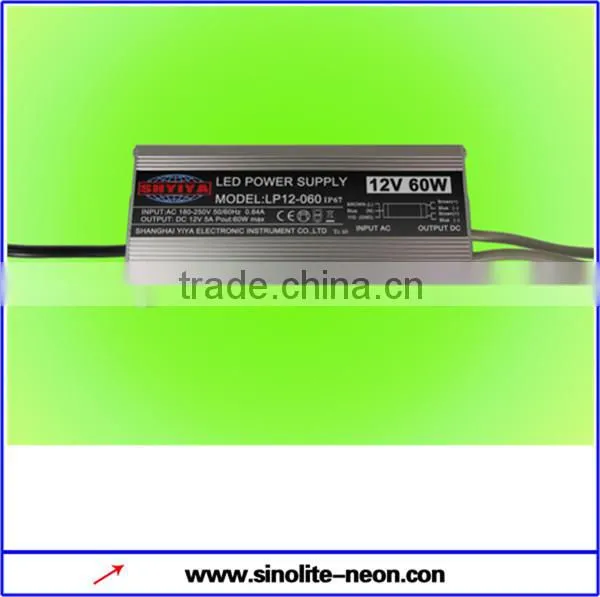

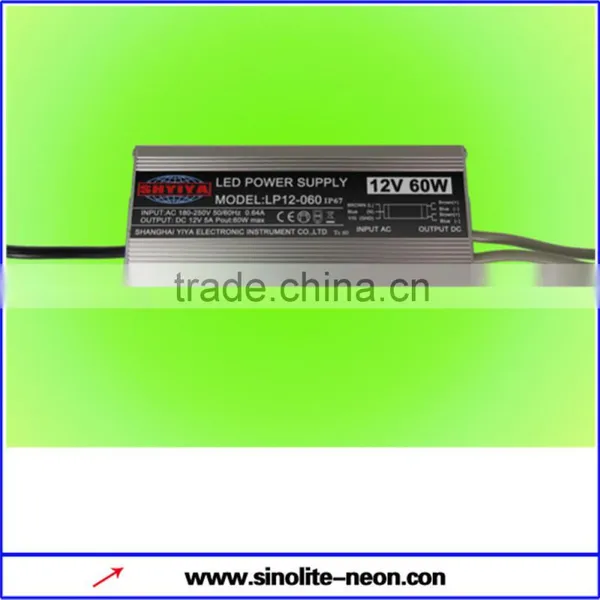

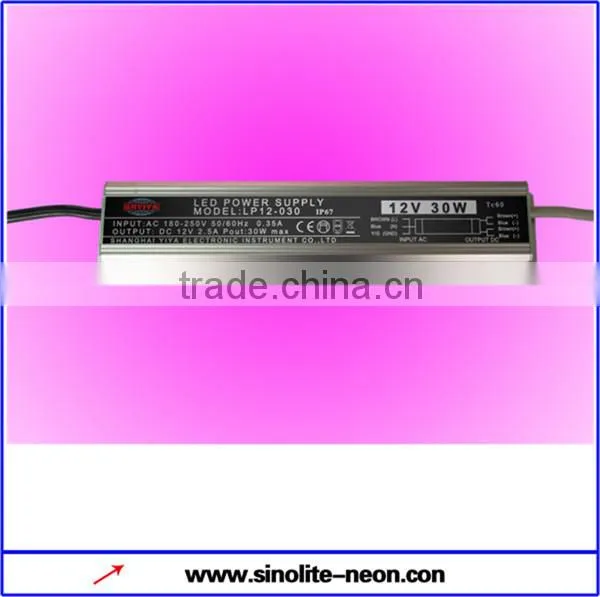

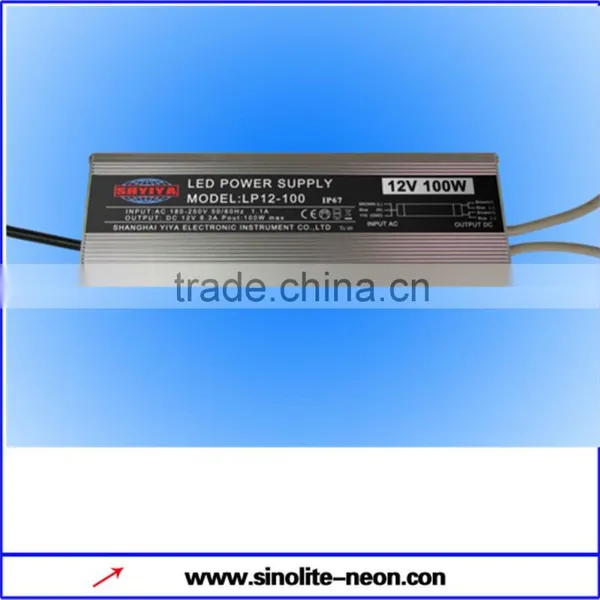

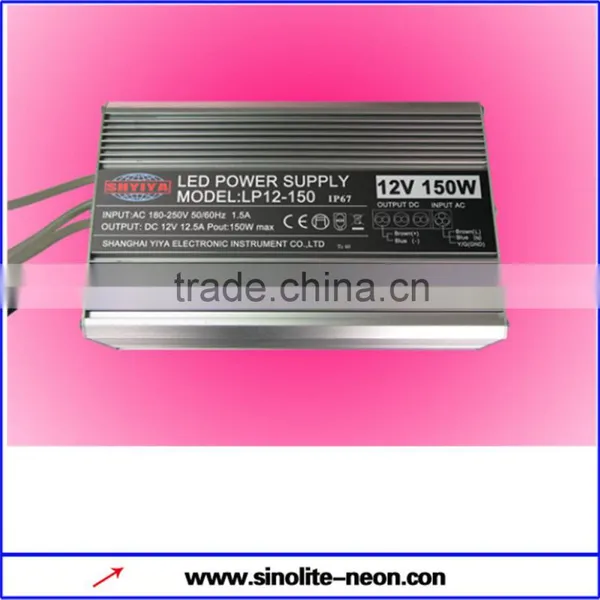

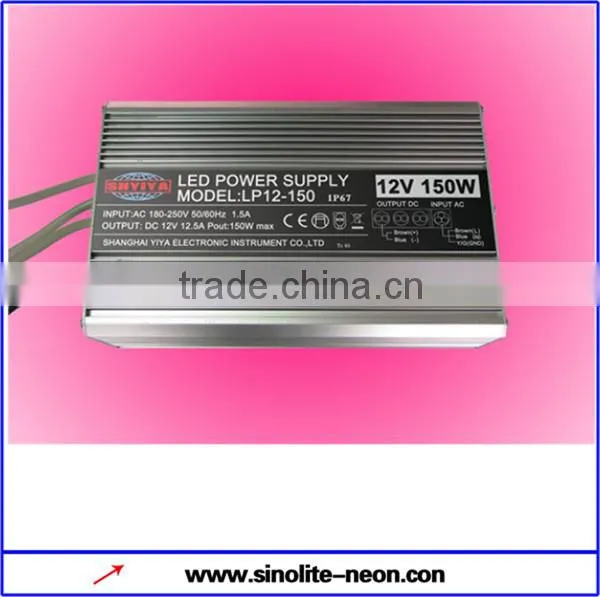

3)Photos of LED Waterproof Power Supply
4)Packing of LED Waterproof Power Supply
5) Neon Family
6)Workshop of LED Waterproof Power Supply
7)Certificate
8) Warranty Procedure
The YIYA Warranty Policy as stated in our catalog is as follows: YIYA, a Chinese manufacturer, warrants to the original purchaser the products described herein to be free from defects in material and workmanship at the date of shipment.
NO OTHER WARRANTY, WHETHER EXPRESS OR IMPLIED, INCLUDING ANY WARRANTY OF MERCHANTABILITY OR FITNESS FOR A PARTICULAR PURPOSE, SHALL EXIST IN CONNECTION WITH THE SALE OR USE OF SUCH PRODUCTS.
All claims under this warranty must be made in writing and delivered to the Company prior to the expiration of two years from the date of manufacture or one year of operation, whichever should occur first. Upon receipt of claim, the Company shall inspect the part or parts claimed to be defective, and the Company shall repair, or at its option, replace, free of charge, any part or parts which the Company determines to have been defective at the time of shipment from the factory; provided, however, that if circumstances are such as to preclude the remedying of warranted defects by repair or replacement, the Company shall, upon return of the products, refund to buyer any part of the purchase price of the products. Theretofore paid to the Company. Inspection shall, at Company’s option, be performed at the Company’s plant, or at such other place as may be designated by Company, and in such event freight for returning products to Company’s plant or to such other designated place shall be paid by buyer.
WITHOUT LIMITING THE GENERALITY OF THE FOREGOING, THE COMPANY SHALL UNDER NO CIRCUMSTANCES BE LIABLE FOR ANY INCIDENTAL OR CONSEQUENTIAL LOSS OR DAMAGE WHATSOEVER ARISING OUT OF, OR IN ANY WAY RELATING TO, ANY SUCH BREACH OF WARRANTY OR CLAIMED DEFECT IN, OR NON-PERFORMANCE OF, THE PRODUCTS.
2 YEARS
NT Neon ferro-magnetic Neon Transformer (Indoor & Outdoor)
TH5-NT Neon ferro-magnetic Neon Transformer
T30 Neon Ferro-magnetic Neon Transformer
Cold Cathode Transformers
1 YEARS
NEON ACCESSORIES (Electrode, End Cap, Light Supports, Neon Tester, Neon Tube, Silicone Cable, ,,)
NEON VACCUM SYSTEM
BOMBARDER TRANSFROMER
ALL OTHER COMMIDITY MADE IN YIYA.
NOTE: Warranty credit will not be given for units that have been altered in the field or show evidence of misuse.
9)Why Choose Us?
Original SINOLITE/YIYA brand
1. We sell 100% original real SINOLITE/YIYA brand, and have the certificate of UL, CUL, CE, CB, RoHS etc.
2.The different S/N code on surface of the products, can check the code with SINOLITE company.
Competitive Price +A Fast Delivery + Satisfied Customer Service
1.Our goal is to provide you the right product and make you satisfied, so please don’t hesitate to contact us via Tel or mail.
2. We shall find for you the cheapest shipping term and show you the freight and shipping time. Regarding to the urgent order, a quickest shipping term and freight will be advised to you for consideration.
3.The stock info will be informed before your order, to make everything under control.
4.We will quote to you competitive prices according to your quantities.
5.Price could be negotiated for more and large quantity.
6.We have a technical team, if you show us your Neon Power Supply information, we can find right device for you to match neon sign.
Shipping & Duties
Usually, shipping will be arranged within 2-3 Days upon payment or deposit, from Monday to Saturday only.
Payment
To assure you the maximum comfort and satisfaction, Currently, you can pay via T/T, L/C, WESTERN UNION, PAYPAL, More payment options will be added in the near future.
After-sale service
All of the products we sell are with a certain time warranty.
during the warranty, anything wrong with it, like no working an unstable output voltage or current, damaged, my corporation will be responsible to fix it well for free and re-send it to the clients, But, the delivery cost should be paid by purchaser himself.
We will be very glad to provide the assistance during your installation and application at any time.
10)Contact Us
Your inquiry and mail will be quickly responded. Suppose you have no ideas on choosing the right power supply, please do not hesitate to contact us.
