Patent No: 210008
The flexible hose is used for transmitting indstrial waste and some media, such as coal powder and cinder, slurry ect.The flexible rubber hose has good limpness and high thermostability. The inner of the hose embedded ceramic wafer, which has a good abrasion and corrosion resistant. The hose is lining cloth and reinforced with the steel wire.
The flexible pipes or hose are lining with ceramics balls are used to reduce the internal costs.
However, the Huapeng developed the ceramic tile in the form of pressure which has five times
longer useful life. Another advantage with respect to flexibility, wich my curve in the same proportion.
In the newly developed ceramic hose, ceramic tips are used to eliminate a disadvantage in a conventional ceramic hoses.
It has higher abrasion resistance while maintaining flexibility. The standard producible ceramic
hose is limited to 10 m in length and 30 to 300 mm in hose diameter.

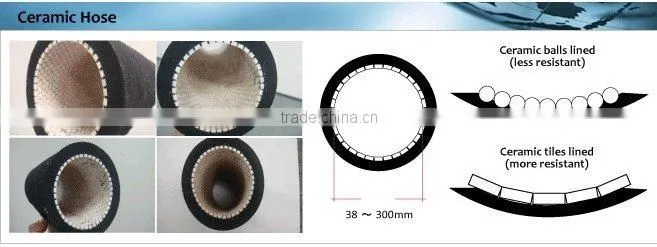

An elbow type ceramic hose is available. We can produce a hose in a customer's design. Our new ceramic hose has the circular disk shaped ceramic tip as compared with the conventional ball shaped ceramic tip and shows several times higher abrasion resistance.
Normally, the producible length is 10 m for a ceramic hose. Please contact with us if you need a longer ceramic hose. In addition, we can produce a ceramic hose as a customer wishes. If you don't know the desired dimension, we can produce the ceramic hose having the same dimension with the existing hose.
The right selection means choosing a product suitable for technical requirements of certain application or device along with assurance of safe and faultless performance.
Due to above mentioned reasons, we advise to choose the right lining hose with the help of sales or technical department.
we have reached the international level of production and applied for a patent (patent number accepted 210008).
Material |
Natural rubber & ceramic |
Alumina content |
92% |
Alumina density |
3.6g/cm3 |
Pressure |
10 kilo |
Temperature |
80o c |
Inner diameter |
Bending radius(min) |
25mm |
500mm |
32mm |
640mm |
38mm |
760mm |
42mm |
840mm |
52mm |
1020mm |
68mm |
1360mm |
76mm |
1520mm |
95mm |
1900mm |
102mm |
2040mm |
152mm |
3040mm |
