Home > Products > Ceramic Pipe > wear resistant ceramic lined steel pipe
wear resistant ceramic lined steel pipe
- 5000 Meter / Meters per Month
- Shanghai port
- T/T
You May Like
Product Details
| Place of Origin | Jiangsu, China | Type | Ceramic Tubes | |
| Application | Industrial Ceramic | Material | Alumina Ceramic | |
| Model Number | Daika-A | Brand Name | DAHUA |
Product Description

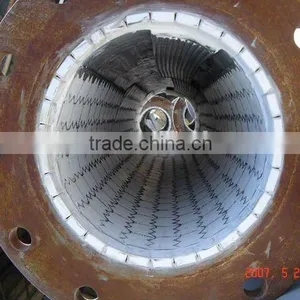

wear resistant ceramic lined steel pipe
1. Regarding the ceramic steel pipe
There is layer ceramic chip inside of steel pipe, so the most important advantages as follows:
a. Higher wear resistant and higher corrosion resistant
b. Higher heat resistant and higher pressureproof property
c. More longer service life than conventional pipes
2. Application Fields of ceramic steel pipe:
The ceramic lined pipe is widely used in steel plants, cement plants, power plants, coal mine and other heavy industry fields.
It's a very good solution to solve abrasion problem
3. Details of ceramic steel pipe:
Main Properties of Ceramic | |
Item | Index |
Content of Alumina | ≥92% |
Density | ≥3.5 g/cm3 |
Rockwell Hardness | ≥85 HRA |
Impact Strength | ≥850 Mpa |
Bending Strength | ≥290MPa |
Breaking Temper | ≥4.8MPa·m1/2 |
Coefficient of Linear Thermal Expansion | 20W/m.K |
| product | Superior Quality High Wear Resisting Ceramic Steel Pipe |
| wall thickness | 3-10mm |
| Inner material | 92 % Alumina ceramics |
| ceramic lining Thickness | 1 to 5mm |
| Application | 1,Thermal power 2,steel Industry 3,mechanical industry 4,chemical Industry 5,Mine,coal industry 6,cement industry 7,Smelting industry |
| Advantages | 1,lower cost than the cast iron pipe and alloy steel pipe. 2,low density,low weight and convenient installation 3,unique abrasion and impact resistant 4,excellent corrosion resistant 5,smooth inner wall |
| Packing | Wooden cases |
| Delivery Time | According to your requirement |
| The Minimum quantity | 10m |
| payment | L/C , T/T |
| port | Shanghai |
| availability | 5000m |
