wire mesh fence

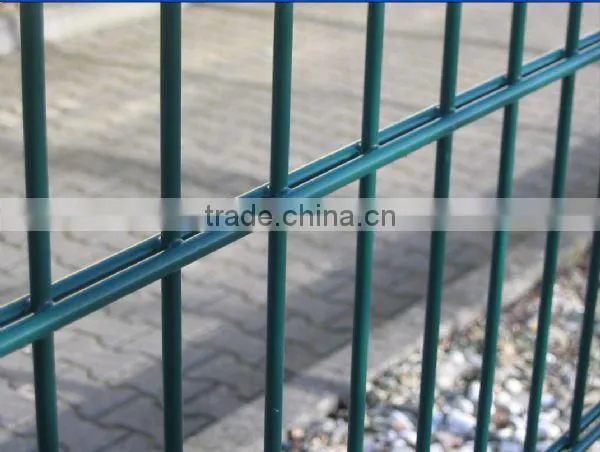

Powder coated 2d double wire mesh fence
Hebei zhuoxing metal wire mesh products co., ltd.
1. Year of Establish: 1992
2. Occupied Area: 33350m2
3. Certifications: ISO9001:2008; CE
4. Fence Market: Poland, Germany, Russia, France, Italy,etc. European countries;
Malaysia, Singapore;etc. Asia countries
5. Employees of Quality Dept.: 8 persons
6. Employees of Technology Dept.: 5 persons
Company Culture
Faith---Being honest and customers first
Service—Try my best for you can get best
Feature –Design, excellent quality ,first-class service and reasonable price
Objective—Being the best wre mesh fence supplier
Spirit of Enterprise –Seek realistic and innovation , work hard and make effort.

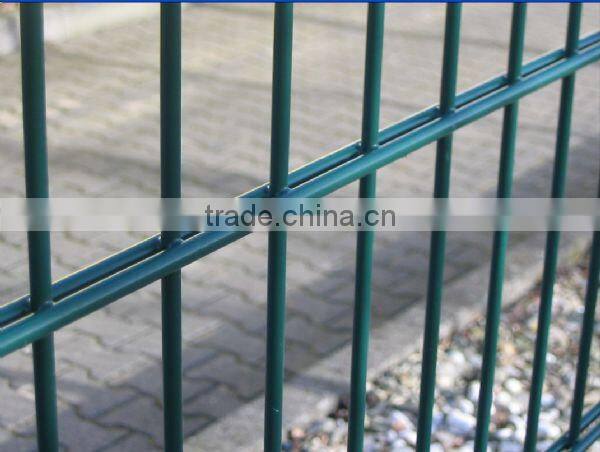

2d Double Wire Mesh Fence
1. Material of 2d Double Wire mesh Fence - using high quality Q195/235 low carbon steel wire
2. Wire Diameter of 2d Double Wire Mesh Fence:
6*2+5mm; 8*2+6mm (6 and 8 point to horizontal wire; 5 and 6 point to vertical wire)
3. Mesh: 50*200mm is the most popular; 75*150; 55*200; 60*150mm;etc are also available
4. Height: from 630mm to 2430mm
5. Length: 2500mm is the most popular; surely we can produce as your special demands
Double Wire Fence | |||||
|
Height x Width Panel(mm) |
Mesh Size |
Wire Diameter |
Post Height |
||
Wire Dia |
Wire Dia |
Wire Dia (mm) |
|||
630X2500 |
50X200 |
8X2 + 6 |
6X2 + 5 |
6X2 + 4 |
1100 |
830X2500 |
50X200 |
8X2 + 6 |
6X2 + 5 |
6X2 + 4 |
1300 |
1030X2500 |
50X200 |
8X2 + 6 |
6X2 + 5 |
6X2 + 4 |
1500 |
1230X2500 |
50X200 |
8X2 + 6 |
6X2 + 5 |
6X2 + 4 |
1700 |
1430X2500 |
50X200 |
8X2 + 6 |
6X2 + 5 |
6X2 + 4 |
1900 |
1630X2500 |
50X200 |
8X2 + 6 |
6X2 + 5 |
6X2 + 4 |
2100 |
1830X2500 |
50X200 |
8X2 + 6 |
6X2 + 5 |
6X2 + 4 |
2400 |
2030X2500 |
50X200 |
8X2 + 6 |
6X2 + 5 |
6X2 + 4 |
2600 |
2230X2500 |
50X200 |
8X2 + 6 |
6X2 + 5 |
6X2 + 4 |
2800 |
2430X2500 |
50X200 |
8X2 + 6 |
6X2 + 5 |
6X2 + 4 |
3000 |
1. For the finish coating ,we can do electric galvanized and PVC coated, hot dipped galvanized and PVC coated, PVC coated without galvanized. The customer can also choose PVC painted finish treating. | |||||
2.Other heights and length on request . | |||||
♥We can customize the special size you require.♥
6. Surface Treatment of Iron Double wire mesh fence: galvanized then powder coated.

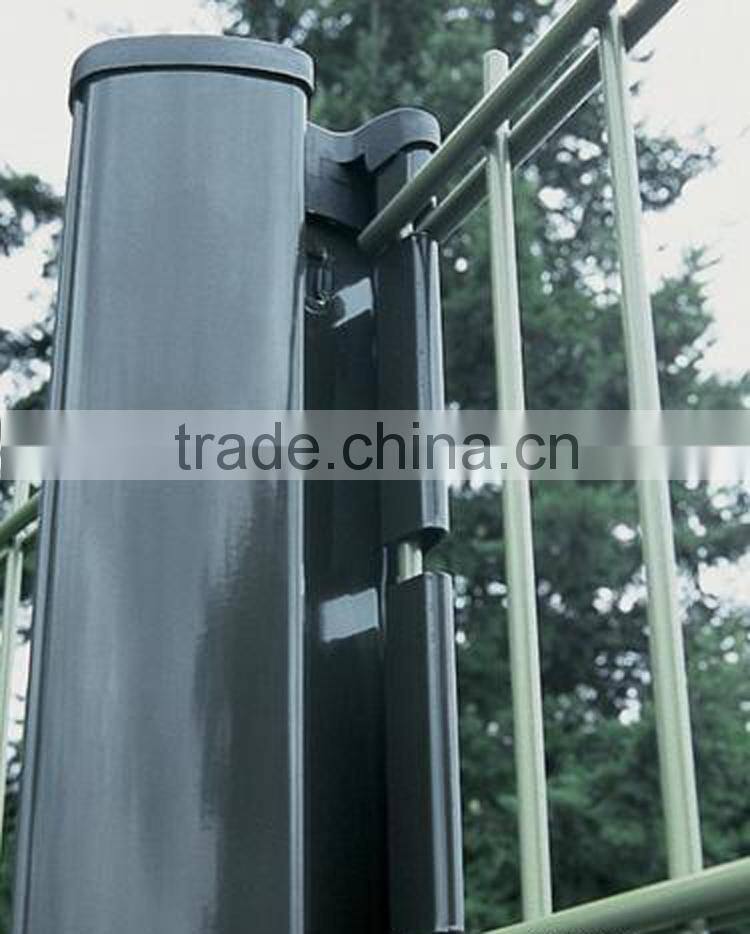

Post of 2d Double Wire Mesh Fence:
1.Size: 60*60mm; 60*40mm; 80*60mm; 120*60mm;etc.
2.Thickness:1.5mm; 2mm; 2.5mm; 3.0mm;etc.
3.Height: 500mm longer than the fence

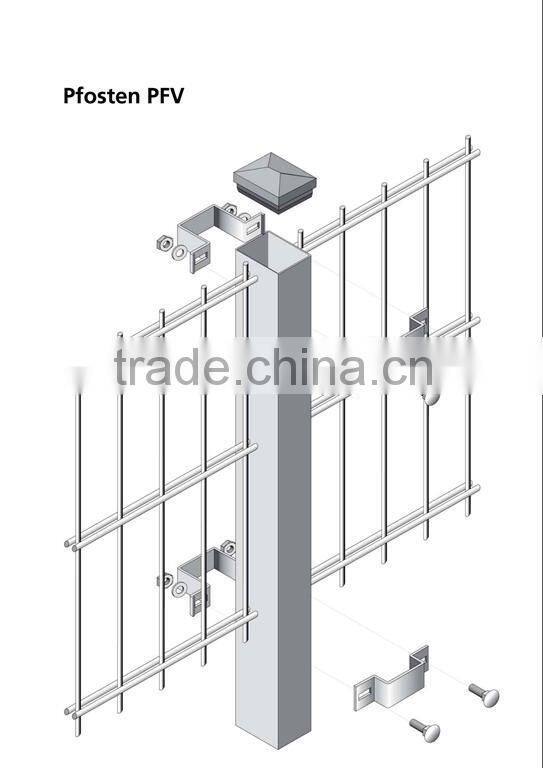

Accessories of 2d Double Wire Mesh Fence:
Packaging of 2d Double Wire Mesh Fence:
1>it has rubber mat at the bottom of the pallet to avoid the pallet destroying the panels;
2>it has 4 metal corners to keep the pallet more strong;
3>it has metal plate under the plastic bandage to reduce the apressure of fence panels;
4>it has wooden plate at the top of fence panel which can protect the fence panels avoid being crushed by other pallets.
Our after-sales service start immediately after signing the contract.
1.our sample is free, but the customer need to pay the freight.
2. FOB or CIF price term can be handled by us, and we have long term cooperate freight forwarding. The price is reasonable.
3. The third-party inspection always gets real and true data from us and we will send production photos to customers if there is no inspection.
4. Do our best to help customer arrange the shipment and customs clearance.
5. Installation, maintenance and repair instructions with full information.
6. Accept Changing or Refunding if the products cannot be installed rightly.
♥If you have any question, please feel free to contact me. I will do my best to help you.♥
Payment term: T/T, 30% as deposit, the balance will against the copy of B/L.
MOQ: 200 sets.
Payment term: within 15days after receiving your deposit.
Please feel free to contace us ! We are ready to serve you !
