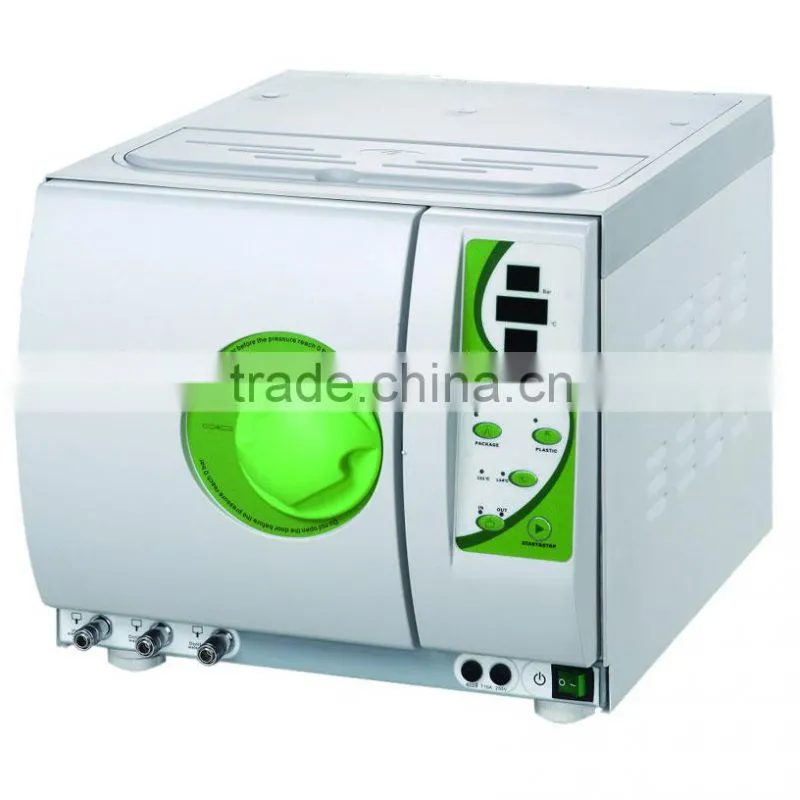

B class Dental Autoclave MAU-DAD18

Specifications

1.European N standard
2.High quality
3: supply OEM service

Dental Autoclave MAU-DAC18

Specifications

1.Fashion style

2.CE approved



Product Parameter

Model       Voltage/Power    Chamber Size      Outside Size      Packing Size    Net Weight

MAU-DAC12   220V/1400W  φ192×340mm    560X450X400mm   660X525X495mm  43kg

MAU-DAC18   220V/1500W   φ245×360mm    560X450X400mm   660X525X495mm  47kg

MAU-DAC23   220V/1700W   φ245×470mm    670X450X400mm   770X530X495mm 53kg



Functions

1.The newly-designed model with opening water tank on the top, strictly meets the standard of EN13060, which makes wash and cleaning much more convenient.

2.It adopts European B standard with 3-times pre-vacuum preceding vacuum drying. Residual humidity       is less than 0.2%.

3.Vacuum measurement reaches-0.8bar.It sterilizes and sanitizes miscellaneous packed or unpacked      medical instruments, Whether solid or A-type hollow, whether with multi-apertures or inset pipes. It efficiently tides air from every hollow area of any hollow instrument, such as hand-piece, making sure      that water steam reaches every corner.

4.Fuzzily computer controlled, digital bright show. The interface is modularized panel for easy operation.

5.It is installed with BOWIE&DICK which measures the penetration of water steam.

6.Mini printer can be attached to record the process of sterilization.



Advantage

1.High density air filter,eliminating impurity in air,ensuring the returned air dry and pure.

2.Efficient double-head vacuum pump,low noise,vacuum ability could get -0.92Bar,double head ensure      the balance during working and stable vacuum state in the chamber.

3.Electronic data output,the sterilization information can be saved into memory disk as a txt file,in                  connection with computer to analysis,realizing digital sterilization.

4.The multiplex tray holder of sterilizer is single stretching molding,painting and polishing treatment,with    good compression bear and suit various load.It could set 5 trays on   the holder simultaneously when      revolve it 90°.

5.Circular heating little difference in temperature.

   Pressure-prevention and corruption-resistance makes it highly reliable.

    Alloy heating loop protects against damage by no-water heating.

   Spcious cavity makes it easy to clean.

6.Original fuzzy control system driven by steam generator adoptsPWM(pulse with modulation),able

   to discriminate the fine differences in temperature allowances and to adjust the modulated waves

   correspondingly thus making temperature rise at the same speed each time.

7.Chamber is made of purple glass surface copperplate,

   plastically metamorphosed by the extrusion under 500-ton oil pressure.

8.Stable ULKA water pump made in Italy.

9.PHILIPS chip, famous world, powerful memory, process data fast and reliable.

10.MAXIM is the worldwide leader of analog, mixed-signal, also head of high frequency and digital circuit      research, development, manufacture, smooth circuit controlling.

11.MOTOROLA precise-level pressure sensor, single crystal silicon thin film semiconductor strain                   gauge, can accurately sense the pressure within the sterilizer.

12.ST semiconductor, proud of high efficiency silicon, make the control more accurate and rapid.

13.ATMEL Corporation, the world's advanced semiconductor design, manufacturing and marketing                 leader. ATMEL microprocessor, safe, reliable and feature-rich.

14.OMRON electromechanical conversion structure, powerful loading capacity, 10 life-time.

15.SD Japan expert of temperature sensor, swift measurement, ready to deliver in time the temperature         inside the sterilizer, superior.
